HMMWV 10,500 Lb Hydraulic Winch Accessory Kit TM 9-2320-280-24P · Fig. 470

Every part in figure 470 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 16 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

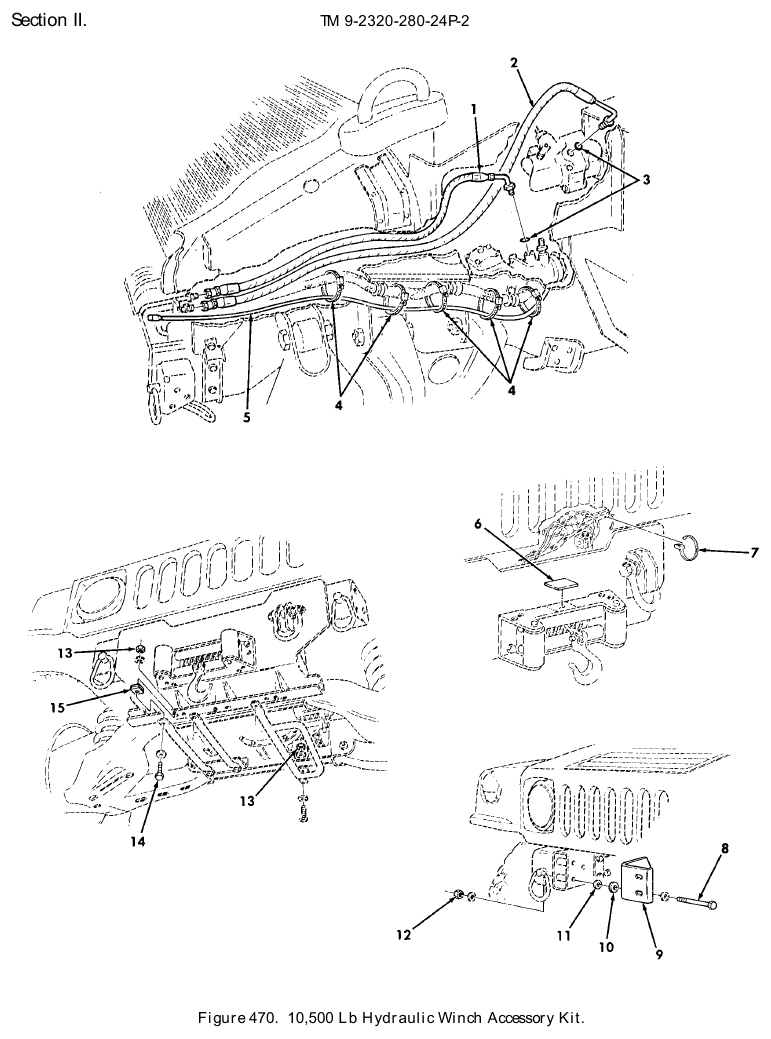

TM 9-2320-280-24P figure 470, 10,500 Lb Hydraulic Winch Accessory Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Hose Assembly NSN 4720-01-475-3757 · P/N 983-88-00C36 HOSE ASSEMBLY,NONME PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	We can source it $186.25 per eachgov't list price
2	Nonmetallic Hose Assembly NSN 4720-01-475-4641 · P/N 983-88-00C47 HOSE ASSEMBLY,NONME PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	100 in stock $249.66 per eachgov't list price
3	O-Ring NSN 5331-00-580-6586 · P/N 2938-2 O-RING PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	2	114 in stock
4	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	5	198 in stock
5	Electrical Lead NSN 6150-01-473-1174 · P/N 12469065-2 LEAD,ELECTRICAL PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	We can source it $40–$75 eachtypical
6	Decal P/N 12469067 DECAL PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	Ask us
7	Tie Down Electrical Compon Strap NSN 5975-00-984-6582 · P/N TY25M0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	2	253 in stock
8	Cap Hexagon Head Screw NSN 5305-00-724-7254 · P/N B1821BH063C400N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	6	210 in stock
9	Tow Hook Bracket NSN 2540-01-473-9040 · P/N 6001553 BRACKET,R.H. TOW HOOK PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	We can source it $146.50 per eachgov't list price
9	Tow Hook Bracket NSN 2540-01-473-9045 · P/N 6001552 BRACKET,L.H. TOW HOOK PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	1	We can source it $95–$160 eachtypical
10	Flat Washer NSN 5310-01-147-4052 · P/N 2436168 WASHER,FLAT PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	2	301 in stock
11	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	2	We can source it
12	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N 12387349-43 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	6	256 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	4	219 in stock
14	Cap Hexagon Head Screw NSN 5306-00-821-3869 · P/N B1821BH038C175N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	3	201 in stock $14.70our price Buy online ↗
15	Spacer P/N 983-92-52000 SPACER PART OF KIT P/N 57K3541 Fits: All A0 models except M966, M997, M1035; all A1 models except M966A1, M997A1, M1035A1; all A2 models except M997A2, M1035A2, plus M1123	3	Ask us

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
