HMMWV 100 AMP Dual Voltage Alternator and Regulator Mounting Hardware Kit TM 9-2320-280-24P · Fig. 472

Every part in figure 472 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 22 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

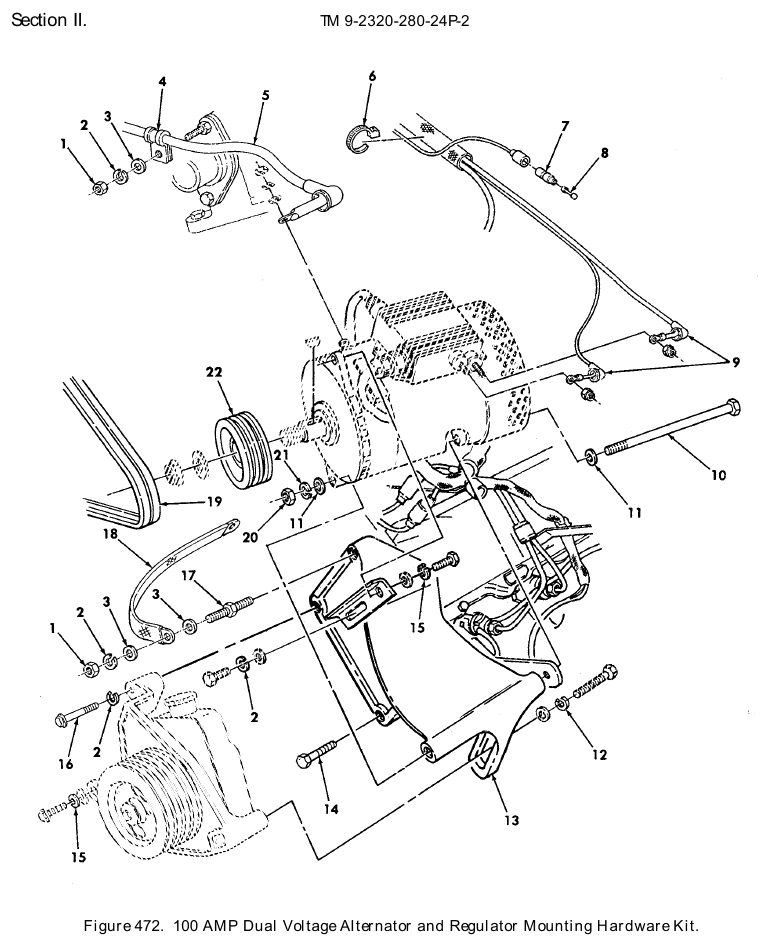

TM 9-2320-280-24P figure 472, 100 AMP Dual Voltage Alternator and Regulator Mounting Hardware Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	98 in stock
2	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	1 in stock
3	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	We can source it
4	Loop Clamp NSN 5340-00-053-8994 · P/N MS21333-126 CLAMP,LOOP PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	23 in stock
5	Special Purpose E Cable Assembly NSN 6150-01-467-6716 · P/N 12446821-2 CABLE ASSEMBLY,SPEC PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2 in stock quote only $802.83 per eachgov't list price
6	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	198 in stock
7	Electrical Connector Shell NSN 5935-00-833-8561 · P/N 8338561 SHELL,ELECTRICAL CO PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	218 in stock
8	Plug Dummy Connector NSN 5935-00-214-0904 · P/N 7982907 DUMMY CONNECTOR,PLU PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	123 in stock
9	Electrical Cable Nipple NSN 5975-01-469-5558 · P/N 0298 4033 CABLE NIPPLE,ELECTR PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	6 in stock
10	Cap Hexagon Head Screw NSN 5305-01-429-9149 · P/N B1821BH044F975N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	27 in stock
11	Flat Washer NSN 5310-00-809-4085 · P/N 9420022 WASHER,FLAT PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	170 in stock
12	Lock Washer NSN 5310-00-011-6121 · P/N 120384 WASHER,LOCK PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	337 in stock
13	Mounting Bracket NSN 5340-01-448-4245 · P/N 12342036 BRACKET,MOUNTING PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $316.03 per eachgov't list price
14	Machine Bolt NSN 5306-01-263-8889 · P/N 12340845-2 BOLT,MACHINE PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	65 in stock
15	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1,162 in stock
16	Machine Bolt NSN 5306-01-264-3531 · P/N 12340845-4 BOLT,MACHINE PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
17	Shouldered Stud NSN 5307-01-465-5796 · P/N 12339406-4 STUD,SHOULDERED PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
18	Special Purpose E Cable Assembly NSN 6150-01-466-7528 · P/N 12446821-6 CABLE ASSEMBLY,SPEC PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1 in stock quote only $75–$125 eachtypical
19	V Matched Set Belts NSN 3030-01-282-6968 · P/N 12339359-12 BELTS,V,MATCHED SET PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	103 in stock $50–$95 per settypical
20	Plain Hexagon Nut NSN 5310-01-457-3171 · P/N 9417028 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
21	Lock Washer NSN 5310-00-209-0965 · P/N MS35338-47 WASHER,LOCK PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2,764 in stock
22	Groove Pulley NSN 3020-01-204-8132 · P/N 12339412 PULLEY,GROOVE PART OF KIT P/N 57K3519 Fits: All A1 models except M996A1, M997A1, M1097A1, plus M966, M998, M1025, M1026, M1035, M1037 and 1 more	1	599 in stock $35–$75 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
