HMMWV 100/200 AMP Dual Voltage Alternator and Regulator Mounting Hardware Kit TM 9-2320-280-24P · Fig. 473

Every part in figure 473 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 11 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

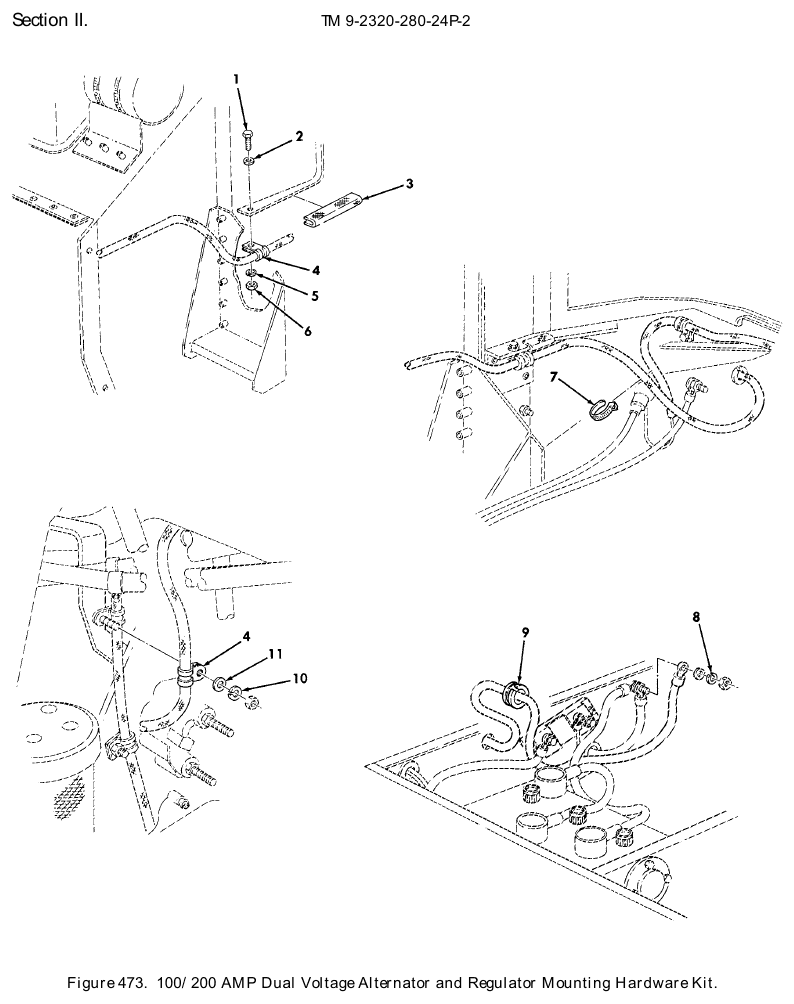

TM 9-2320-280-24P figure 473, 100/200 AMP Dual Voltage Alternator and Regulator Mounting Hardware Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	292 in stock
2	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1,368 in stock
3	Automotive TR Make From Bezel Bezel P/N 12340103-4 BEZEL,AUTOMOTIVE TR MAKE FROM BEZEL, P/N 12340103,4 INCHES LONG PART OF KIT P/N 57K3519 PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	Ask us
4	Loop Clamp NSN 5340-00-702-2848 · P/N MS21333-128 CLAMP,LOOP PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	178 in stock
5	Lock Washer NSN 5310-00-407-9566 · P/N MS-35338-45 WASHER,LOCK PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2,036 in stock
6	Plain Hexagon Nut NSN 5310-00-931-8167 · P/N MS51967-6 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
7	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	198 in stock
8	Lock Washer NSN 5310-01-186-7066 · P/N 85031 WASHER,LOCK PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
9	Nonmetallic Grommet NSN 5325-00-276-6343 · P/N MS35489-23 GROMMET,NONMETALLIC PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	232 in stock
10	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	1 in stock
11	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT PART OF KIT P/N 57K3520 PART OF KIT P/N 57K3519 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
