HMMWV 400 AMP Alternator Kit TM 9-2320-280-24P · Fig. 476

Every part in figure 476 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 26 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

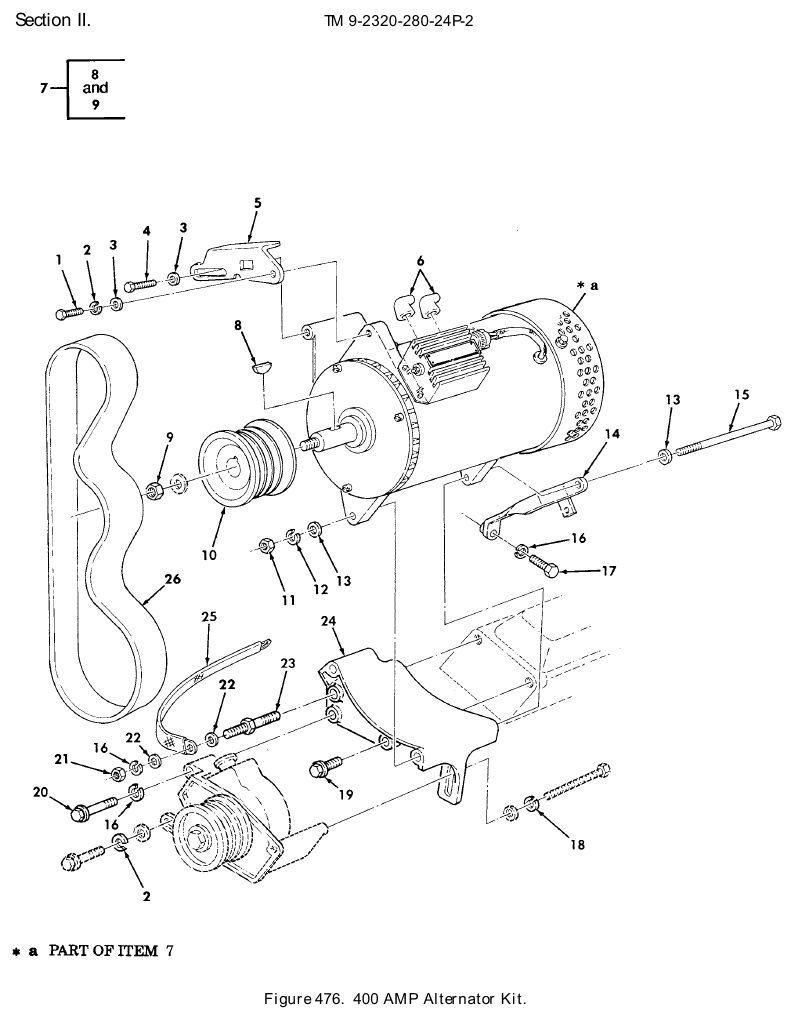

TM 9-2320-280-24P figure 476, 400 AMP Alternator Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16X1.00 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	26 in stock
2	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	1,162 in stock
3	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	6 in stock
4	Machine Bolt NSN 5306-01-114-0963 · P/N B1821BH038C100L BOLT,MACHINE 3/8 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	93 in stock
5	Engine Accessory Bracket NSN 5342-01-466-6276 · P/N 12446758 BRACKET,ENGINE ACCE 3/8 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it $268.53 per eachgov't list price
6	Electrical Cable Nipple NSN 5975-01-469-5558 · P/N 0298 4033 CABLE NIPPLE,ELECTR 3/8 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	6 in stock
7	Engine Accessory Generator NSN 2920-01-466-1855 · P/N N1602-1 GENERATOR,ENGINE AC 400 AMP PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	58 in stock $3,850.00our price Buy online ↗
8	Woodruff Key NSN 5315-00-616-5501 · P/N MS35756-20 KEY,WOODRUFF 3/8 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	97 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-419-0876 · P/N MS21245-L12 NUT,SELF-LOCKING,HE 3/4-16X1.00 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it $25–$50 eachtypical
10	Groove Pulley NSN 3020-01-466-3603 · P/N 12446753 PULLEY,GROOVE PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	1,019 in stock $196.63 per eachgov't list price
11	Plain Hexagon Nut NSN 5310-00-763-8906 · P/N MS51968-18 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
12	Lock Washer NSN 5310-00-167-0680 · P/N MS35338-49 WASHER,LOCK PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
13	Flat Washer NSN 5315-00-656-0114 · P/N MS15795-819 WASHER,FLAT PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	499 in stock
14	Engine Accessory Bracket NSN 5342-01-466-6280 · P/N 12460502 BRACKET,ENGINE ACCE PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	403 in stock $28.94our price Buy online ↗
15	Cap Hexagon Head Screw NSN 5305-01-475-3014 · P/N B1821BH056F950N BOLT,SHOULDER PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	236 in stock $29.39our price Buy online ↗
16	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK M10 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	3	1 in stock
17	Cap Hexagon Head Screw NSN 5305-01-243-3759 · P/N 14060130 SCREW,CAP,HEXAGON H M10 X 1.5 X 40 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
18	Lock Washer NSN 5310-00-011-6121 · P/N 120384 WASHER,LOCK 1/2 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	337 in stock
19	Machine Bolt NSN 5306-01-263-8889 · P/N 12340845-2 BOLT,MACHINE M10-1.50 X 30 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	65 in stock
20	Machine Bolt NSN 5306-01-264-3531 · P/N 12340845-4 BOLT,MACHINE M10-1.5 X 100 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
21	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	98 in stock
22	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT 10MM PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	We can source it
23	Shouldered Stud NSN 5307-01-408-4029 · P/N 12342545 STUD,SHOULDERED PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	409 in stock
24	Engine Accessory Bracket NSN 5342-01-466-6283 · P/N 12446755 BRACKET,ENGINE ACCE PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it $5,062.46 per eachgov't list price
25	Electrical Grounding Strip NSN 5999-01-372-5601 · P/N 12341151 STRIP,ELECTRICAL GR PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
26	V Matched Set Belts NSN 3030-01-466-5387 · P/N 12339359-28 V-BELT SET 58 INCHES LONG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	1 in stock $43.30our price Buy online ↗

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
