HMMWV 200 AMP Dual Voltage Alternator and Regulator Mounting Hardware Kit TM 9-2320-280-24P · Fig. 475

Every part in figure 475 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 30 lines, 23 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

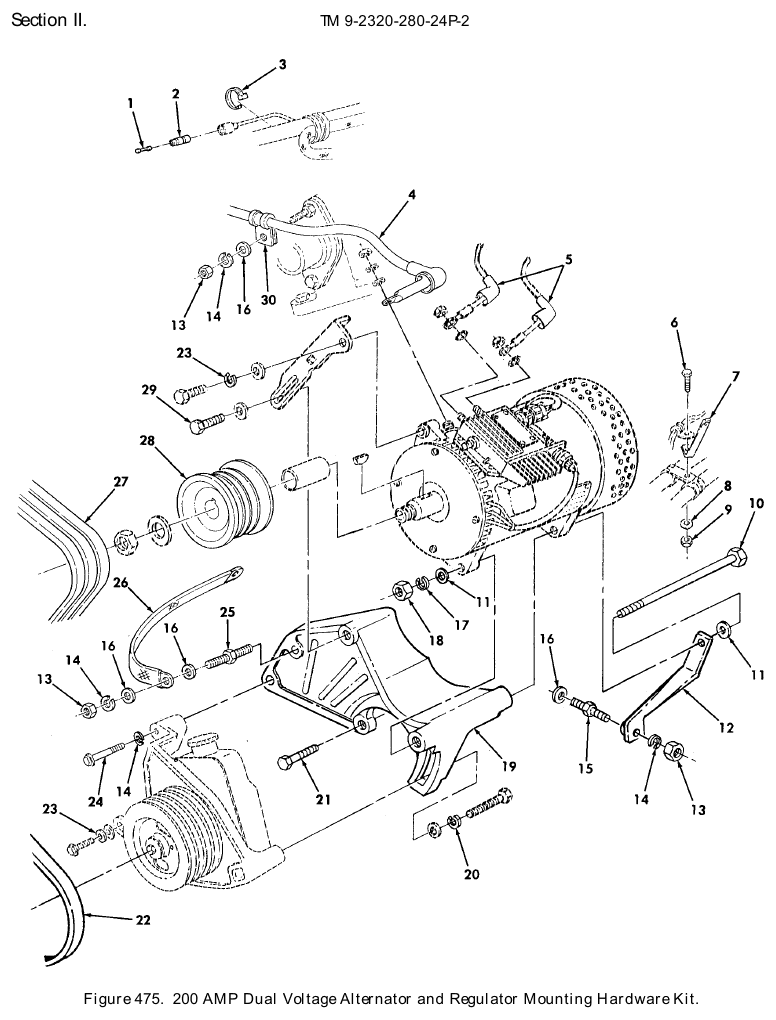

TM 9-2320-280-24P figure 475, 200 AMP Dual Voltage Alternator and Regulator Mounting Hardware Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plug Dummy Connector NSN 5935-00-214-0904 · P/N 7982907 DUMMY CONNECTOR,PLU PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	123 in stock
2	Electrical Connector Shell NSN 5935-00-833-8561 · P/N 8338561 SHELL,ELECTRICAL CO PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	218 in stock
3	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	198 in stock
4	Electrical Lead NSN 6150-01-416-7899 · P/N 12446825 LEAD,ELECTRICAL PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it $161.82 per eachgov't list price
5	Electrical Cable Nipple NSN 5975-01-469-5558 · P/N 0298 4033 CABLE NIPPLE,ELECTR PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	6 in stock
6	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	559 in stock
7	Double Angle Bracket NSN 5340-01-292-5402 · P/N 12342076 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	6 in stock
8	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2,325 in stock
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	626 in stock
10	Cap Hexagon Head Screw NSN 5305-01-429-9149 · P/N B1821BH044F975N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	27 in stock
11	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	170 in stock
12	Mounting Bracket NSN 5340-01-292-8404 · P/N 5935092 BRACKET,MOUNTING PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it quote only $25–$55 eachtypical
13	Plain Hexagon Nut NSN 5310-01-395-8747 · P/N B18241B100F NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	3	98 in stock
14	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	1 in stock
15	Shouldered Stud NSN 5307-01-315-3597 · P/N 12339406-3 STUD,SHOULDERED PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	298 in stock $25–$55 eachtypical
16	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	4	We can source it
17	Lock Washer NSN 5310-00-209-0965 · P/N MS35338-47 WASHER,LOCK PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	2,764 in stock
18	Plain Hexagon Nut NSN 5310-01-457-3171 · P/N 9417028 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
19	Vehicular Components Bracket NSN 2920-01-444-4365 · P/N 12338786-1 BRACKET,VEHICULAR C PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	13 in stock $235.11 per eachgov't list price
20	Lock Washer NSN 5310-00-011-6121 · P/N 120384 WASHER,LOCK PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	337 in stock
21	Machine Bolt NSN 5306-01-263-8889 · P/N 12340845-2 BOLT,MACHINE PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	65 in stock
22	V Belting NSN 3030-01-452-6591 · P/N 12339359-14 BELTING,V PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
23	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	1,162 in stock
24	Machine Bolt NSN 5306-01-264-3531 · P/N 12340845-4 BOLT,MACHINE PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
25	Shouldered Stud NSN 5307-01-408-4029 · P/N 12342545 STUD,SHOULDERED PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	409 in stock
26	Electrical Grounding Strip NSN 5999-01-372-5601 · P/N 12341151 STRIP,ELECTRICAL GR PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	We can source it
27	V Matched Set Belts NSN 3030-01-321-4482 · P/N 12339359-18 BELTS,V,MATCHED SET PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	699 in stock $58.79our price Buy online ↗
28	Groove Pulley NSN 3020-01-232-9629 · P/N 12339392 PULLEY,GROOVE PART OF KIT P/N 57K3520 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	116 in stock $65–$110 eachtypical
29	Machine Bolt NSN 5306-01-114-0963 · P/N B1821BH038C100L BOLT,MACHINE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	1	93 in stock
30	Loop Clamp NSN 5340-00-702-2848 · P/N MS21333-128 CLAMP,LOOP PART OF KIT P/N 57K3520 VOLTAGE ALTERNATOR BAND,MARKER ( 2) 474-13 BELTING,V ( 1) 475-22 BELTS,V,MATCHED SET( 1) 475-27 BEZEL,AUTOMOTIVE TR( 1) 473-3 BOLT,MACHINE ( 1) 473-1 BOLT,MACHINE ( 1) 474-7 BOLT,MACHINE ( 1) 475-21 BOLT,MACHINE ( 1) 475-24 BRACKET,DOUBLE ANGL( 1) 475-7 BRACKE Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, M1097A1, plus M1121	2	178 in stock
