HMMWV Dipstick and Dummy Connector Plug-400 AMP Alternator Kit TM 9-2320-280-24P · Fig. 479

Every part in figure 479 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 6 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

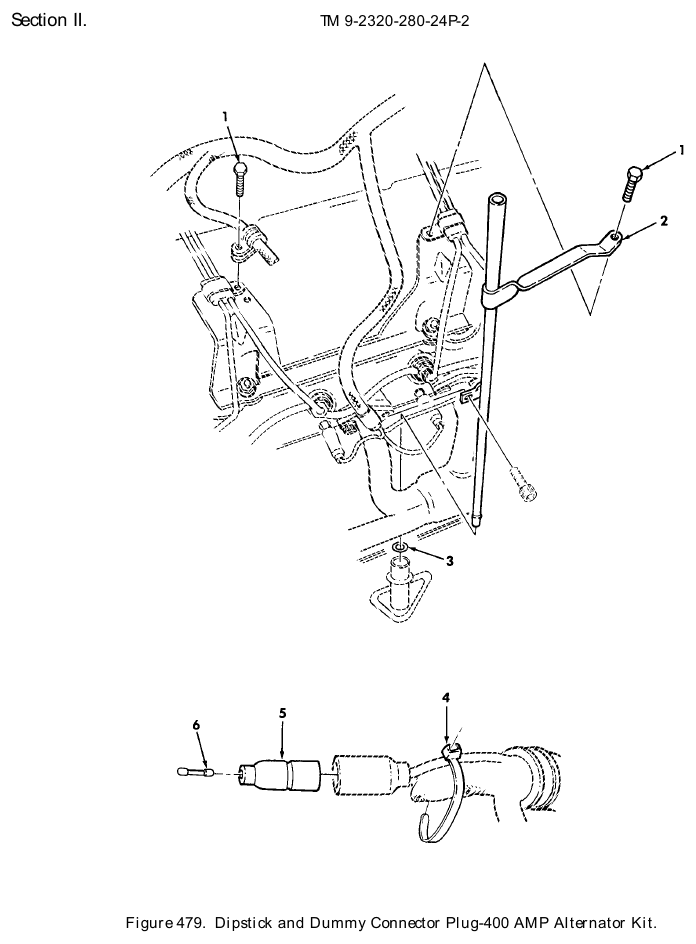

TM 9-2320-280-24P figure 479, Dipstick and Dummy Connector Plug-400 AMP Alternator Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Assembled Washer Screw NSN 5305-01-215-5174 · P/N 12340515 SCREW,ASSEMBLED WAS PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	153 in stock
2	Metal Tube Assembly NSN 4710-01-466-5447 · P/N 12446754 TUBE,DIPSTICK PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it $241.62 per eachgov't list price
3	O-Ring NSN 5331-00-935-9136 · P/N 274244 O-RING .355"I.D PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	64 in stock
4	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	198 in stock
5	Electrical Connector Shell NSN 5935-00-833-8561 · P/N 8338561 SHELL,ELECTRICAL CO PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	218 in stock
6	Plug Dummy Connector NSN 5935-00-214-0904 · P/N 7982907 DUMMY CONNECTOR,PLU PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	123 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
