HMMWV 400 AMP Alternator Wiring Harness Cable Assemblies TM 9-2320-280-24P · Fig. 480

Every part in figure 480 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 35 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

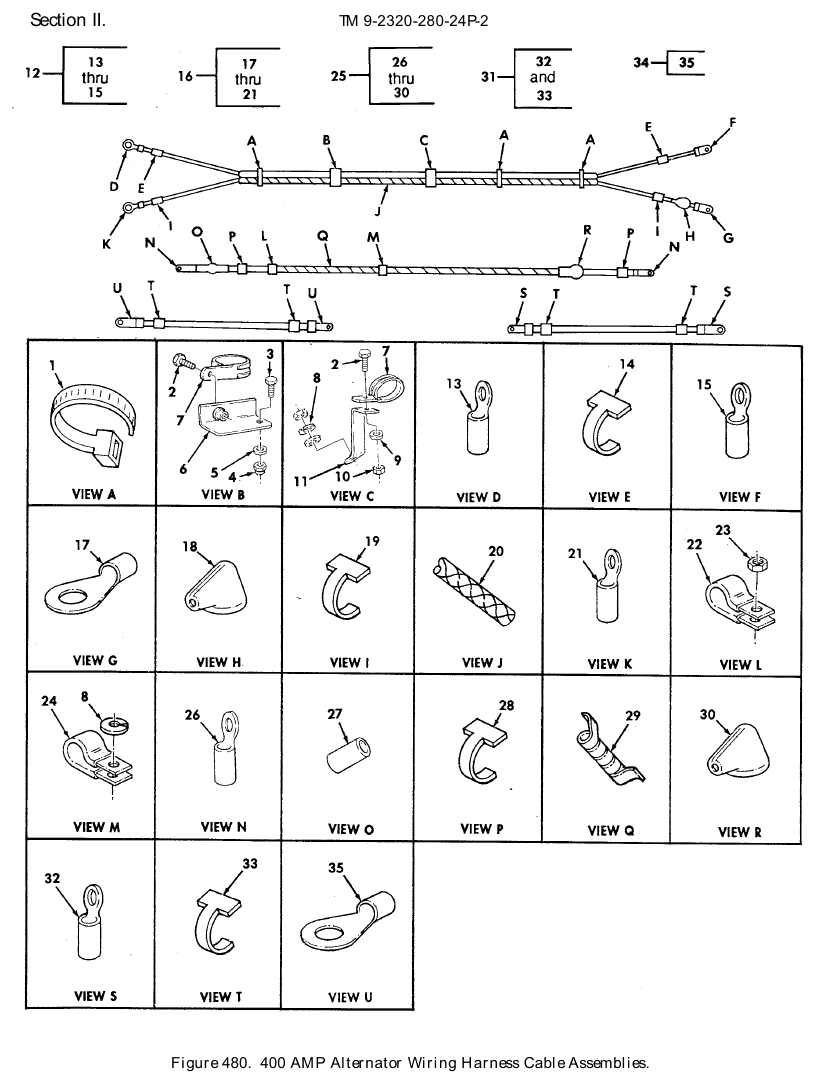

TM 9-2320-280-24P figure 480, 400 AMP Alternator Wiring Harness Cable Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tie Down Electrical Compon Strap NSN 5975-01-034-5871 · P/N MS3367-7-0 STRAP,TIEDOWN,ELECT PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	3	198 in stock
2	Cap Hexagon Head Screw NSN 5305-01-143-2328 · P/N 454065 SCREW,CAP,HEXAGON H #10-32 X 3/4 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	We can source it
3	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE 1/4-20 X 3/4 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	761 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	354 in stock
5	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	1,368 in stock
6	Angle Bracket NSN 5340-01-466-2468 · P/N 12460496 BRACKET,ANGLE PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it $170.80 per eachgov't list price
7	Loop Clamp NSN 5340-00-731-9611 · P/N MS21334-34 CLAMP,LOOP PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	2 in stock
8	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	1 in stock
9	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	909 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-208-9255 · P/N MS21044-C3 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
11	Double Angle Bracket NSN 5340-01-466-2620 · P/N 12460495 BRACKET,DOUBLE ANGL PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it $145.34 per eachgov't list price
12	Special Purpose E Cable Assembly NSN 6150-01-470-7014 · P/N 12460498-4 CABLE ASSEMBLY,SPEC PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it quote only $129.62 per eachgov't list price
13	Lug Terminal NSN 5940-00-115-5023 · P/N MS20659-124 TERMINAL,LUG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
14	Marker Band NSN 9905-00-945-7637 · P/N M43436/1-4 BAND,MARKER PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	We can source it
15	Lug Terminal NSN 5940-00-115-5012 · P/N MS20659-157 TERMINAL,LUG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
16	Cable Assembly P/N 12460498-3 CABLE ASSEMBLY PART OF KIT P/N 57K0273 MAKE FROM WIRE,P/N M13486/1-4,78,INCHES LONG A27,B17,B18,HVY,H11,H13,H14,H17,H18, A27,B17,B18,HVY,H11,H13,H14,H17,H18, H20,H21,H24,H25,H26,H27,H28,MMM Fits: All models	1	Ask us
17	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	30 in stock
18	Electrical Cable Nipple NSN 5975-01-208-9618 · P/N 12339710 CABLE NIPPLE,ELECTR PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	32 in stock
19	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	1 in stock $20.58our price Buy online ↗
20	Nonmetallic Loom P/N SAEJ562 LOOM,NONMETALLIC 3/4 PART OF KIT P/N 57K0273 MAKE FROM TUBING,P/N AE208-10,LENGTH AS REQUIRED Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	Ask us
21	Lug Terminal NSN 5940-00-115-5001 · P/N MS20659-135 TERMINAL,LUG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	4 in stock
22	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	23 in stock
23	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	570 in stock
24	Loop Clamp NSN 5340-00-053-8994 · P/N MS21333-126 CLAMP,LOOP PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	23 in stock
25	Electrical Lead P/N 12339317 LEAD,ELECTRICAL PART OF KIT P/N 57K0273 MAKE FROM WIRE,P/N M13486/1-14, 58 INCHES LONG Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	Ask us
26	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	We can source it
27	Electrical Insulation Sleeving NSN 5970-01-174-9449 · P/N 7056640 INSULATOR PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	We can source it
28	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	1 in stock $20.58our price Buy online ↗
29	Nylon Make From Wrap Wrap P/N 12339317-1-AR WRAP,NYLON MAKE FROM WRAP,P/N 12339317-1,LENGTH TO SUIT PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	Ask us
30	Electrical Cable Nipple NSN 5975-01-208-9618 · P/N 12339710 CABLE NIPPLE,ELECTR PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	32 in stock
31	Cable Assembly P/N 12460498-2 CABLE ASSEMBLY,SPEC PART OF KIT P/N 57K0273 MAKE FROM WIRE,P/N M13486/1-14,11 INCHES LONG Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	Ask us
32	Lug Terminal NSN 5940-00-115-2683 · P/N MS20659-151 TERMINAL,LUG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	2 in stock
33	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	4	1 in stock $20.58our price Buy online ↗
34	Cable Assembly P/N 12460498-1 CABLE ASSEMBLY,SPEC PART OF KIT P/N 57K0273 MAKE FROM WIRE,P/N M13486/1-14 11 INCHES LONG Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	1	Ask us
35	Lug Terminal NSN 5940-00-115-2684 · P/N MS20659-118 TERMINAL,LUG PART OF KIT P/N 57K0273 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M1121	2	We can source it

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
