HMMWV Flexible Brake Line Kit TM 9-2320-280-24P · Fig. 487A

Every part in figure 487A of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 17 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

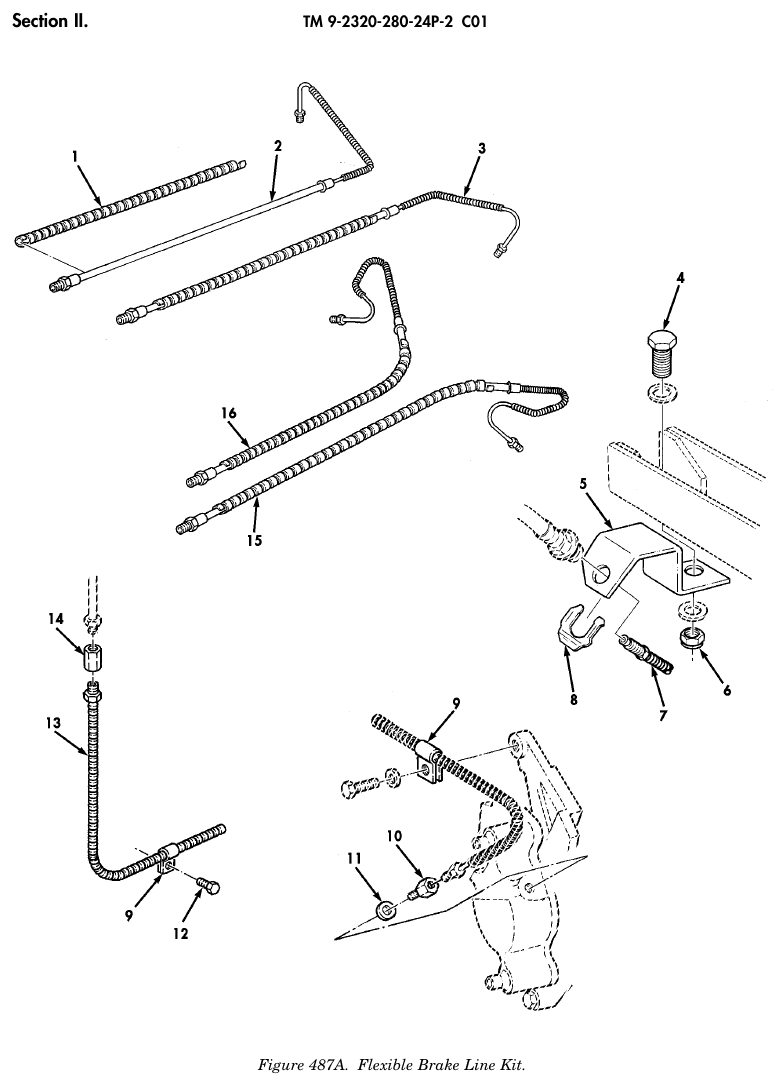

TM 9-2320-280-24P figure 487A, Flexible Brake Line Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plastic Spiral Wrap Tubing NSN 9330-01-252-1239 · P/N B47207-II-1/2 TUBING,PLASTIC,SPRI PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	4	We can source it
2	Nonmetallic Hose Assembly NSN 4720-01-443-3033 · P/N RCSK18434-3 HOSE ASSEMBLY,NONME L.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	1	139 in stock $45–$90 eachtypical
3	Nonmetallic Hose Assembly NSN 4720-01-442-9875 · P/N RCSK18434-2 HOSE ASSEMBLY,NONME R.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	1	1 in stock $50–$95 eachtypical
4	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	4	296 in stock
5	Multiple Angle Bracket NSN 5340-01-434-8109 · P/N EX4228-2 BRACKET,MULTIPLE AN L.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	We can source it $35–$65 eachtypical
5	Multiple Angle Bracket NSN 5340-01-432-8681 · P/N EX4228-1 BRACKET,MULTIPLE AN R.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	We can source it $25–$40 eachtypical
6	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	4	1,713 in stock
7	Metal Tube Assembly NSN 4710-01-434-3151 · P/N EX4231-3 TUBE ASSEMBLY,METAL PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	We can source it $25–$45 eachtypical
8	Hand Brake Cab Clip NSN 5340-00-678-1753 · P/N 7331407 CLIP,HAND BRAKE PART OF KIT P/N 487A-1 57K3503 Fits: All A0 and A1 models, plus M1121	4	35 in stock
9	Loop Clamp NSN 5340-01-189-7640 · P/N 179148 CLAMP,LOOP PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	298 in stock
10	Tube Coupling NSN 4730-01-184-6971 · P/N 12339235 COUPLING,TUBE PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	554 in stock $24.49our price Buy online ↗
11	Flat Washer NSN 5310-01-189-8476 · P/N 5582366 WASHER,FLAT PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	22 in stock
12	Tapping Screw NSN 5305-01-393-6311 · P/N 271153 SCREW,TAPPING PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	We can source it
13	Metal Tube Assembly NSN 4710-01-434-3037 · P/N EX4233 TUBE ASSEMBLY,METAL PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	2 in stock $75–$125 eachtypical
14	Hose Coupling NSN 4730-01-457-0727 · P/N 442393 COUPLING,HOSE PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	1	We can source it
15	Nonmetallic Hose Assembly NSN 4720-01-443-3481 · P/N RCSK18435-3 TUBE ASSEMBLY,METAL L.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	1	231 in stock $78.25our price Buy online ↗
16	Nonmetallic Hose Assembly NSN 4720-01-443-8487 · P/N RCSK18435-2 HOSE ASSEMBLY,NONME R.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	1	We can source it $45–$85 per assemblytypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
