HMMWV Kit, Rear Hatch Support TM 9-2320-280-24P · Fig. 487

Every part in figure 487 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 17 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

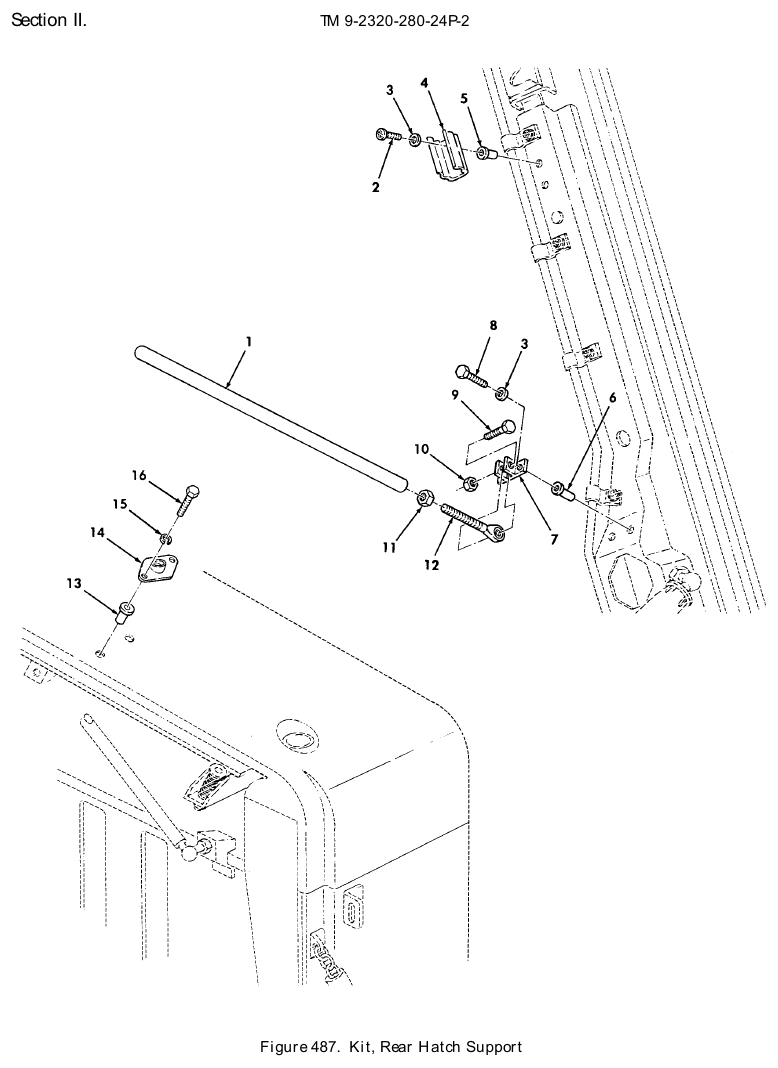

TM 9-2320-280-24P figure 487, Kit, Rear Hatch Support: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Control Rod Extension NSN 5342-01-459-4992 · P/N 12460330 EXTENSION,CONTROL R PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	We can source it $30–$55 eachtypical
2	Machine Screw NSN 5305-01-407-7713 · P/N 160052 SCREW,MACHINE PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	4,349 in stock
3	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	We can source it
4	Spring Tension Clip NSN 5340-01-450-8693 · P/N NAS1464-050-10T CLIP,SPRING TENSION PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	We can source it
5	Plain Blind Rivet Nut NSN 5310-00-990-1361 · P/N MS27130-S25 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	4	We can source it
6	Plain Blind Rivet Nut NSN 5310-01-046-5371 · P/N MS27130-CR27 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	We can source it
7	Multiple Angle Bracket NSN 5340-01-469-5774 · P/N 12460331 BRACKET,MULTIPLE AN PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	We can source it
8	Cap Hexagon Head Screw NSN 5305-00-018-7838 · P/N 187838 SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	We can source it
9	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	298 in stock
10	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	184 in stock
11	Plain Hexagon Nut NSN 5310-00-768-0319 · P/N MS51968-2 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	508 in stock
12	Threaded Rod End P/N SAEJ1120 ROD END,THREADED SIZE4,TYPEB3 PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	Ask us
13	Plain Blind Rivet Nut NSN 5310-00-080-2411 · P/N MS27130-S43 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	2	70 in stock
13	Plain Blind Rivet Nut NSN 5310-01-080-5746 · P/N MS27130-S44 NUT,PLAIN,BLIND RIV PART OF KIT P/N 57K3243 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it
14	Mounting Plate NSN 5340-01-451-5903 · P/N 12460329 PLATE,MOUNTING PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	1	We can source it $25–$50 eachtypical
15	Lock Washer NSN 5310-00-407-9566 · P/N MS-35338-45 WASHER,LOCK PART OF KIT P/N 57K3243 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	2,036 in stock
16	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE PART OF KIT P/N 57K3243 BOLT,MACHINE ( 2) 487-16 BRACKET,MULTIPLE AN( 1) 487-7 CLIP,SPRING TENSION( 1) 487-4 EXTENSION,CONTROL R( 1) 487-1 NUT,PLAIN,BLIND RIV( 4) 487-5 NUT,PLAIN,BLIND RIV( 2) 487-6 NUT,PLAIN,BLIND RIV( 2) 487-13 NUT,PLAIN.BLIND RIV( 2) 487-13 NUT,PLAIN,HEXAGON ( 1) 487-11 NUT,SELF-LOCKING,HE( 1) 487 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	761 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
