HMMWV Flexible Brake Line Kit TM 9-2320-280-24P · Fig. 487D

Every part in figure 487D of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 10 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

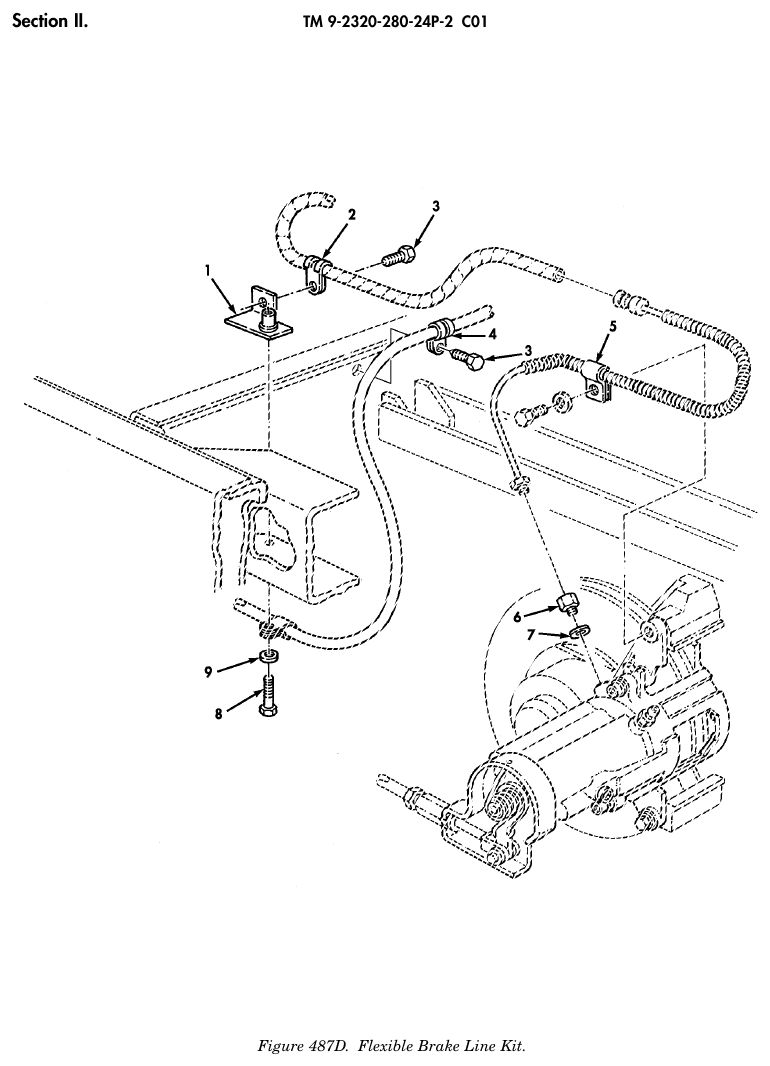

TM 9-2320-280-24P figure 487D, Flexible Brake Line Kit: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Angle Bracket NSN 5340-01-458-7156 · P/N EX4717-1 BRACKET,ANGLE L.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$55 eachtypical
1	Angle Bracket NSN 5340-01-458-7147 · P/N EX4717-2 BRACKET,ANGLE R.H.,PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$65 eachtypical
2	Loop Clamp NSN 2520-00-989-1771 · P/N MS21333-123 CLAMP,LOOP PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	1 in stock
3	Tapping Screw NSN 5305-01-393-6311 · P/N 271153 SCREW,TAPPING PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	We can source it
4	Loop Clamp NSN 5340-00-964-5267 · P/N MS21333-120 CLAMP,LOOP PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	319 in stock
5	Loop Clamp NSN 5340-01-189-7640 · P/N 179148 CLAMP,LOOP PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	298 in stock
6	Tube Coupling NSN 4730-01-184-6971 · P/N 12339235 COUPLING,TUBE PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	554 in stock $24.49our price Buy online ↗
7	Flat Washer NSN 5310-01-189-8476 · P/N 5582366 WASHER,FLAT PART OF KIT P/N 57K3503 Fits: All A0 and A1 models, plus M1121	2	22 in stock
8	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE PART OF KIT P/N 57K3503 487D-1 H27,H28,MMM Fits: All A1 models; all A0 models except M1042, M1046	2	84,127 in stock
9	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT PART OF KIT P/N 57K3503 LINES BOLT,MACHINE ( 2) 487D-8 BRACKET,ANGLE ( 1) 487D-1 BRACKET,ANGLE ( 1) 487D-1 BRACKET,MULTIPLE AN( 2) 487A-5 BRACKET,MULTIPLE AN( 2) 487A-5 BRACKET,T ( 1) 487B-6 CLAMP,LOOP ( 2) 487A-9 CLAMP,LOOP ( 2) 487B-5 CLAMP,LOOP ( 2) 487C-1 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	1,368 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
