HMMWV Speedometer, Speedometer Drive, and Related Parts TM 9-2320-280-24P · Fig. 488

Every part in figure 488 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 47 Gages, Weighting and Measure: 25 lines, 22 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

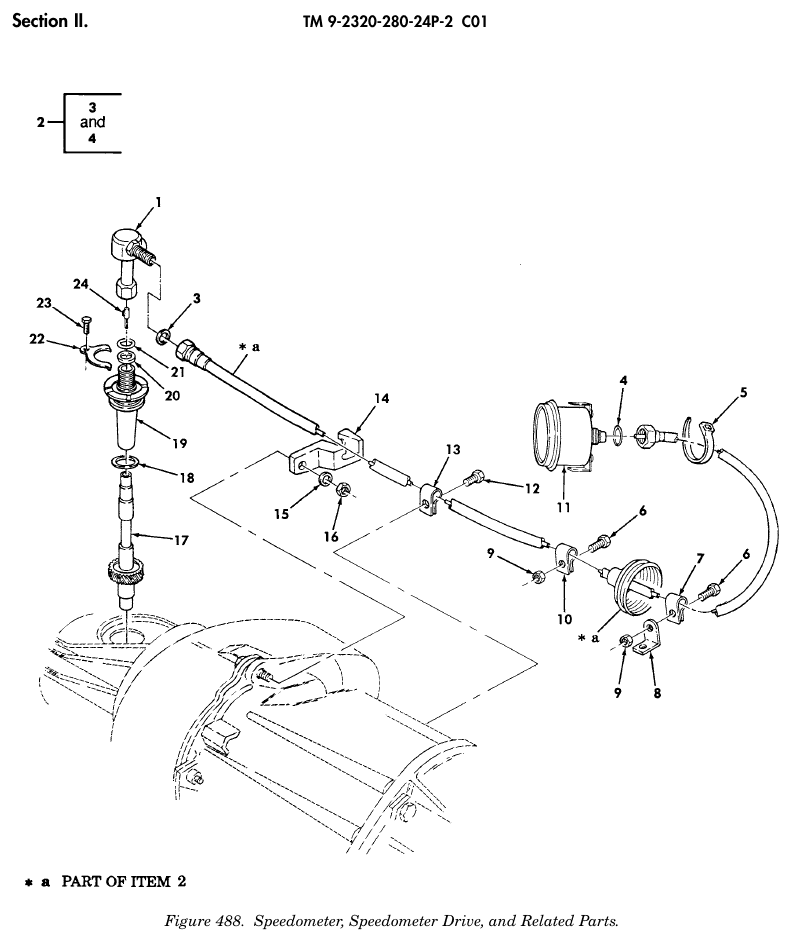

TM 9-2320-280-24P figure 488, Speedometer, Speedometer Drive, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Speedometer-Tachometer D Adapter NSN 2590-01-212-5868 · P/N SP-311 ADAPTER,SPEEDOMETER Fits: All models	1	96 in stock $139.99our price Buy online ↗
2	Flexible Shaft Assembly NSN 6680-01-442-9413 · P/N 12338428-2 SHAFT ASSEMBLY,FLEX Fits: All models	1	18 in stock $95–$155 eachtypical
3	O-Ring NSN 5331-01-216-7392 · P/N 12338998 O-RING Fits: All models	1	99 in stock
4	O-Ring NSN 5331-01-216-7393 · P/N 12338997 O-RING Fits: All models	1	1 in stock
5	Tie Down Electrical Compon Strap NSN 5975-00-156-3253 · P/N MS3367-2-9 STRAP,TIEDOWN,ELECT Fits: All A2 models, plus M1123	1	63 in stock
6	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 1/2 Fits: All models	2	19 in stock
7	Loop Clamp NSN 5340-00-689-9514 · P/N MS21333-70 CLAMP,LOOP Fits: All models	2	5 in stock
8	Angle Bracket NSN 5340-01-448-1213 · P/N 12460199 BRACKET,ANGLE Fits: All models	2	We can source it
9	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All models	2	474 in stock
10	Loop Clamp NSN 5340-00-150-1658 · P/N 11176106-5 CLAMP,LOOP Fits: All models	1	We can source it
11	Speedometer NSN 6680-01-195-2146 · P/N 12338463 SPEEDOMETER Fits: All models	1	33 in stock $102.89our price Buy online ↗
12	Tapping Screw NSN 5305-00-757-8122 · P/N MS51851-64 SCREW,TAPPING #10-24 X 3/8 Fits: All models	1	We can source it
13	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP Fits: All models	1	19 in stock
14	Bracket NSN 5342-01-193-7088 · P/N 5583576 BRACKET Fits: All models	1	1 in stock $45–$85 eachtypical
15	Flat Washer NSN 5310-00-595-6057 · P/N MS15795-815 WASHER,FLAT 10MM Fits: All models	1	200 in stock
16	Plain Hexagon Nut NSN 5310-01-266-6392 · P/N 5593047 NUT,PLAIN,HEXAGON 10M-1.5 Fits: All models	1	100 in stock
17	Helical Gearshaft NSN 3040-01-244-3646 · P/N 3212735 GEARSHAFT,HELICAL Fits: All A0 models, plus M1121	1	1 in stock $55–$90 eachtypical
17	Helical Gearshaft NSN 3040-01-358-7034 · P/N 12342602 GEARSHAFT,HELICAL Fits: All A1 and A2 models, plus M1097, M1123	1	4 in stock $25–$50 eachtypical
18	O-Ring NSN 5331-01-195-8889 · P/N 12339002 O-RING Fits: All models	1	13 in stock
19	Speedometer-Tachometer D Adapter NSN 3040-01-192-3673 · P/N J3212893 ADAPTER,SPEEDOMETER Fits: All models	1	165 in stock $82.50our price Buy online ↗
20	Packing Retainer NSN 5330-01-255-4986 · P/N 5595643 RETAINER,PACKING Fits: All models	1	1 in stock
21	Seal Pkg NSN 5330-00-409-5291 · P/N 4883434AA SEAL Fits: All models	1	2 in stock
22	Pinion Speedometer Clamp NSN 6680-00-269-0335 · P/N 2892399 STRAP,RETAINING Fits: All models	1	18 in stock $25–$40 eachtypical
23	Machine Bolt NSN 5306-00-226-4824 · P/N B1821BH031C063N BOLT,MACHINE Fits: All models	1	4 in stock
24	Shoulder Headless Pin NSN 5315-01-409-1662 · P/N 30448-D PIN,SHOULDER,HEADLE Fits: All models	1	323 in stock $25–$45 eachtypical

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
