HMMWV Air Restriction Indicator Assembly TM 9-2320-280-24P · Fig. 489

Every part in figure 489 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 4702 Gages, Mounting Lines and Fittings: 6 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

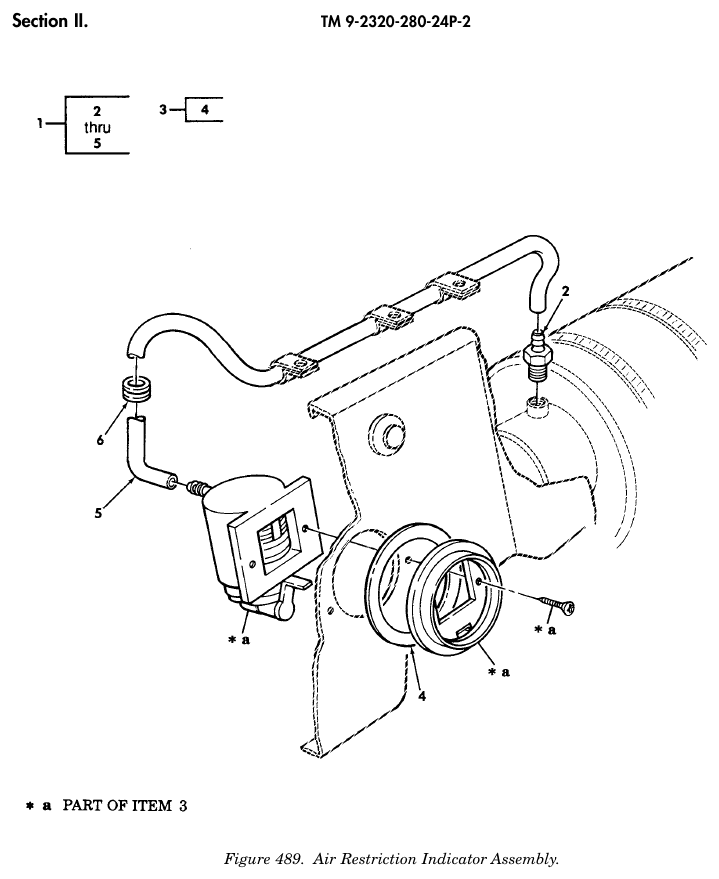

TM 9-2320-280-24P figure 489, Air Restriction Indicator Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Filter Warning Vehicul Indicator NSN 2940-01-176-1427 · P/N 4755-725 INDICATOR,FILTER WA Fits: All models	1	2 in stock $65–$115 eachtypical
2	Straight Pipe to Hose Adapter NSN 4730-01-189-4600 · P/N 1675-182 ADAPTER,STRAIGHT,PI Fits: All models	1	We can source it
3	Indicator P/N 1755-724 INDICATOR Fits: All models	1	Ask us
4	Gasket NSN 5330-01-476-9295 · P/N 12340078-3 GASKET Fits: All models	1	100 in stock $30–$60 eachtypical
5	Hose Make From Hose P/N 12340078-5 HOSE MAKE FROM HOSE,P/N 1775-826, 7.00 FEET LONG Fits: All models	1	Ask us
6	Nonmetallic Grommet NSN 5325-00-276-6228 · P/N ANA9-5 GROMMET,NONMETALLIC Fits: All models	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
