HMMWV A/C Compressor, Idler Pulley, Tensioner, and Related Parts (Serial Number 196901 and Above) TM 9-2320-280-24P · Fig. 490A

Every part in figure 490A of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5203 Air Conditioning Components: 16 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

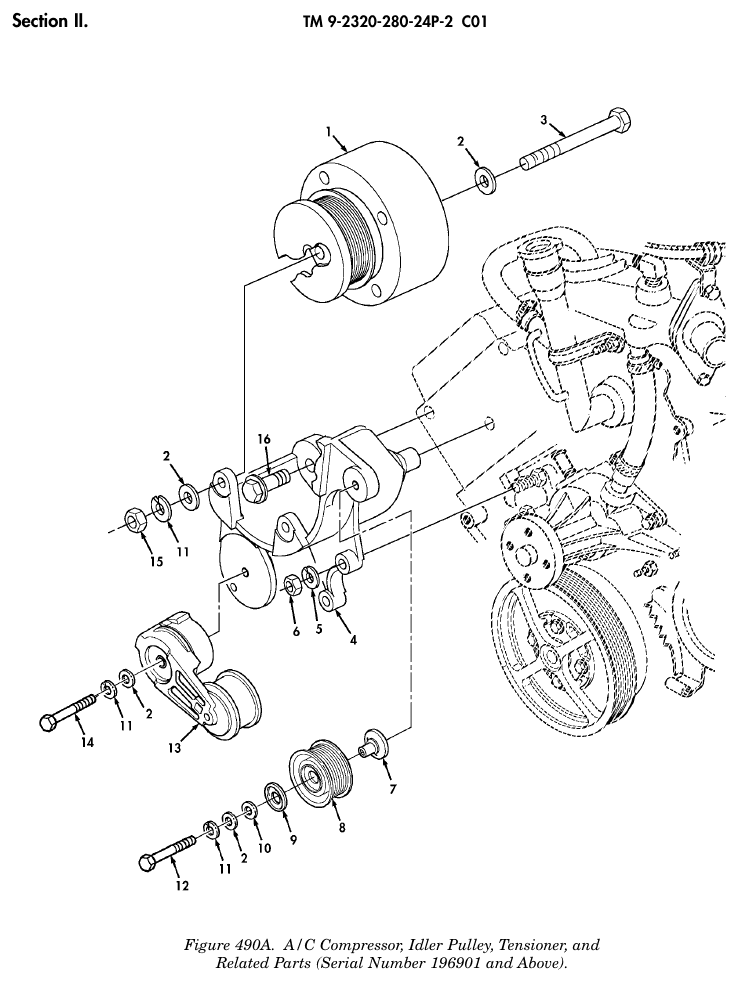

TM 9-2320-280-24P figure 490A, A/C Compressor, Idler Pulley, Tensioner, and Related Parts (Serial Number 196901 and Above): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Refrigeration Compressor NSN 4130-01-420-8306 · P/N RCSK17567 COMPRESSOR,AIR COND Fits: M997A2	1	60 in stock $950.00our price Buy online ↗
2	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT Fits: M997A2	8	6 in stock
3	Cap Hexagon Head Screw NSN 5305-00-781-3929 · P/N B1821BH038C425N SCREW,CAP HEXAGON H Fits: M997A2	3	We can source it
4	Mounting Bracket NSN 5340-01-488-6181 · P/N 12469498 BRACKET Fits: M997A2	1	We can source it $368.51 per eachgov't list price
5	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK Fits: M997A2	2	1 in stock
6	Plain Hexagon Nut NSN 5310-01-366-3539 · P/N B18241B100 NUT,PLAIN,HEXAGON M10-1.5 Fits: M997A2	2	We can source it
7	Stepped Spacer NSN 5365-01-488-5640 · P/N 12469473 SPACER,STEPPED Fits: M997A2	1	We can source it $25–$60 eachtypical
8	Flat Pulley NSN 3020-01-491-0776 · P/N 600635 PULLEY,GROOVE Fits: M997A2	1	We can source it $101.99 per eachgov't list price
9	Dust and Moisture Seal Boot NSN 5340-01-491-2205 · P/N 600638 BOOT,DUST AND MOIST Fits: M997A2	1	We can source it $25–$55 eachtypical
10	Flat Washer NSN 5310-00-012-0388 · P/N 120388 WASHER,FLAT Fits: M997A2	1	We can source it
11	Lock Washer NSN 5310-00-774-7293 · P/N 120382 WASHER,LOCK Fits: M997A2	2	We can source it
12	Cap Hexagon Head Screw NSN 5305-00-543-2866 · P/N B1821BH038C250N SCREW,CAP HEXAGON H .375-16 X 2.50 Fits: M997A2	1	33 in stock
13	Adjusting Belt Tension Arm NSN 2920-01-491-2011 · P/N 600637 ARM,ADJUSTING Fits: M997A2	1	5 in stock $387.10our price Buy online ↗
14	Cap Hexagon Head Screw NSN 5305-00-781-3927 · P/N B1821BH038C350N SCREW,CAP HEXAGON H .375-16 X 3.50 Fits: M997A2	1	We can source it
15	Plain Hexagon Nut NSN 5310-00-761-0654 · P/N MS51967-9 NUT,PLAIN,HEXAGON .375-16 Fits: M997A2	3	12 in stock
16	Machine Bolt NSN 5306-01-270-5448 · P/N 12340845-3 BOLT,MACHINE M10-1.5 X 45 Fits: M997A2	2	10 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
