HMMWV Air Conditioner Compressor Assembly, M997 and M997A1 Ambulance TM 9-2320-280-24P · Fig. 491

Every part in figure 491 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5203 Air Conditioning Components: 27 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

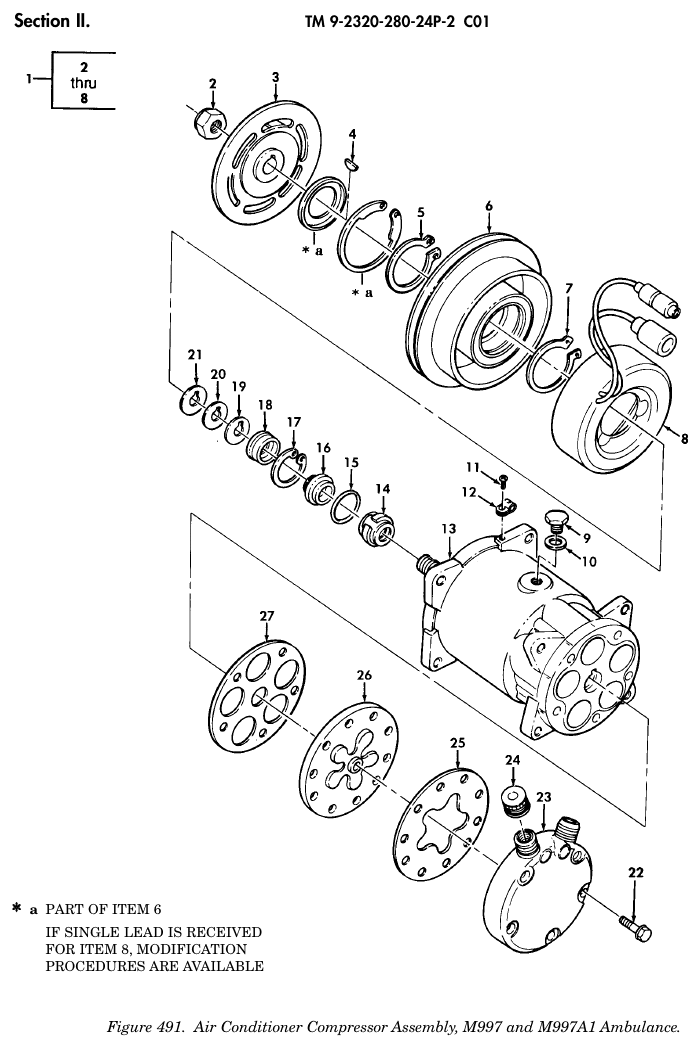

TM 9-2320-280-24P figure 491, Air Conditioner Compressor Assembly, M997 and M997A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Friction Clutch Assembly NSN 2520-01-289-9663 · P/N 9383-6010 CLUTCH ASSEMBLY,FRI Fits: M997, M997A1	1	4 in stock quote only
2	Nut P/N XX1 NUT PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
3	Plate P/N X10 PLATE PART OF KIT P/N 9140-9810 Fits: M997, M997A1	1	Ask us
4	Machine Key P/N 9162-0121 KEY,MACHINE PART OF KIT P/N 9103- 9800 Fits: M997, M997A1	1	Ask us
5	Snap Ring P/N XX6 RING,SNAP PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
6	Pulley P/N X11 PULLEY PART OF KIT P/N 9140-9810 Fits: M997, M997A1	1	Ask us
7	Snap Ring P/N XX7 RING,SNAP PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
8	Electrical Coil NSN 5950-01-289-6007 · P/N 8527-6041 COIL,ELECTRICAL Fits: M997, M997A1	1	We can source it $158.75 per eachgov't list price
9	Machine Thread Plug NSN 5365-01-287-8645 · P/N 8385-6410 PLUG,MACHINE THREAD Fits: M997, M997A1	1	1 in stock $205.99 per eachgov't list price
10	O-Ring NSN 5331-01-288-1062 · P/N 8385-0520 O-RING Fits: M997, M997A1	1	We can source it
11	Screw P/N XX9 SCREW PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
12	Clamp P/N XX8 CLAMP PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
13	Body P/N X18 BODY Fits: M997, M997A1	1	Ask us
14	Seal P/N X14 SEAL PART OF KIT P/N 5741908 Fits: M997, M997A1	1	Ask us
15	Seal P/N X15 SEAL PART OF KIT P/N 5741908 Fits: M997, M997A1	1	Ask us
16	Seal P/N X16 SEAL PART OF KIT P/N 5741908 Fits: M997, M997A1	1	Ask us
17	Retaining Ring P/N 8385-0880 RING,RETAINING PART OF KIT P/N 5741908 Fits: M997, M997A1	1	Ask us
18	Felt Ring P/N X17 RING,FELT PART OF KIT P/N 5741908 Fits: M997, M997A1	1	Ask us
19	Shim P/N XX5 SHIM PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
20	Shim P/N XX4 SHIM PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
21	Shim P/N XX3 SHIM PART OF KIT P/N 9103-9800 Fits: M997, M997A1	1	Ask us
22	Assembled Washer Bolt NSN 5306-01-296-8600 · P/N 4605-0470 BOLT,ASSEMBLED WASH Fits: M997, M997A1	5	We can source it $30–$60 eachtypical
23	Diesel Engine Cylinder Head NSN 2815-01-290-3705 · P/N 8476-9631 CYLINDER HEAD,DIESE Fits: M997, M997A1	1	1 in stock $80–$130 eachtypical
24	Protective Dust and Moisture Cap NSN 5340-01-288-1242 · P/N 8363-6330 CAP,PROTECTIVE,DUST Fits: M997, M997A1	2	We can source it $95–$155 eachtypical
25	Gasket P/N X12 GASKET PART OF KIT P/N 8385-9611 Fits: M997, M997A1	1	Ask us
26	Hydraulic Motor-Pump Valve Plate NSN 4320-01-290-0748 · P/N 6320-9620 VALVE PLATE,HYDRAUL Fits: M997, M997A1	1	We can source it $289.94 per assemblygov't list price
27	Gasket P/N X13 GASKET PART OF KIT P/N 8385-9611 Fits: M997, M997A1	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
