Catalog › Parts manuals › TM 9-2320-280-24P › Air Conditioning › Fig. 498

HMMWV Evaporator Blower Motor Assembly, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 498

Every part in figure 498 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5243 Air Conditioning: 188 lines, 92 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

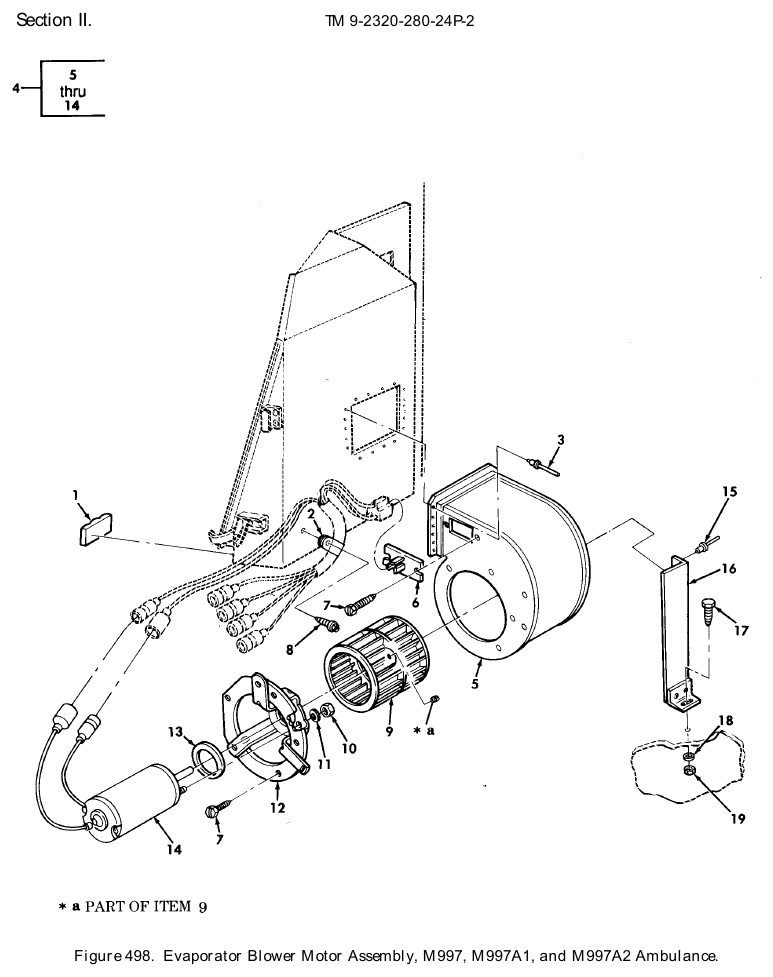

TM 9-2320-280-24P figure 498, Evaporator Blower Motor Assembly, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Strip Seal NSN 5330-01-282-2214 · P/N 354944 SEAL,NONMETALLIC ST Fits: M997, M997A1, M997A2	1	1 in stock $25–$40 eachtypical
2	Spring Tension Clip NSN 5340-01-282-0469 · P/N 290101 CLIP,SPRING TENSION Fits: M997, M997A1, M997A2	1	We can source it $85–$140 eachtypical
3	Solid Rivet NSN 5320-00-119-6823 · P/N MS20470B4-4 RIVET,SOLID Fits: M997, M997A1, M997A2	18	4,000 in stock
4	Air Blower Assembly NSN 2540-01-285-6066 · P/N 410921 BLOWER ASSEMBLY,AIR Fits: M997, M997A1, M997A2	1	1 in stock $2,205.43 per assemblygov't list price
5	Housing Blower P/N 513450 HOUSING BLOWER Fits: M997, M997A1, M997A2	1	Ask us
6	Resistor Assembly NSN 5905-01-154-2354 · P/N 65158 RESISTOR ASSEMBLY Fits: M997, M997A1, M997A2	1	2 in stock $25–$45 eachtypical
7	Tapping Screw NSN 5305-01-270-5419 · P/N 200335 SCREW,TAPPING,THREA #10-16 X 1/2 Fits: M997, M997A1, M997A2	7	We can source it
8	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	1	248 in stock
9	Fan Clutch Hub NSN 2930-01-282-2524 · P/N 260790 HUB,FAN CLUTCH Fits: M997, M997A1, M997A2	1	We can source it $100.51 per eachgov't list price
10	Plain Hexagon Nut NSN 5310-00-852-8593 · P/N MS35649-103 NUT,PLAIN,HEXAGON #10-32 Fits: M997, M997A1, M997A2	2	We can source it
11	Lock Washer NSN 5310-00-274-8710 · P/N 202751 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	2	We can source it
12	Mounting Bracket NSN 5340-01-281-7798 · P/N 513431 BRACKET,MOUNTING Fits: M997, M997A1, M997A2	1	We can source it $70–$120 eachtypical
13	Gasket NSN 5330-01-282-2208 · P/N 354674 GASKET Fits: M997, M997A1, M997A2	1	We can source it
14	Direct Current Motor NSN 6105-01-265-8634 · P/N 274278 MOTOR,DIRECT CURREN Fits: M997, M997A1, M997A2	1	We can source it $732.38 per eachgov't list price
15	Blind Rivet NSN 5320-00-865-8994 · P/N M24243/1-D404 RIVET,BLIND Fits: M997, M997A1, M997A2	2	We can source it
16	Angle Bracket NSN 5340-01-289-3228 · P/N 514277 BRACKET,ANGLE Fits: M997, M997A1, M997A2	1	We can source it $30–$65 eachtypical
17	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M997, M997A1, M997A2	1	471 in stock
18	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M997, M997A1, M997A2	1	4,285 in stock
19	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT 1/4-20 Fits: M997, M997A1, M997A2	1	We can source it
