HMMWV Evaporator Blower Motor Assembly Covers, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 497

Every part in figure 497 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 5243 Air Conditioning: 6 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

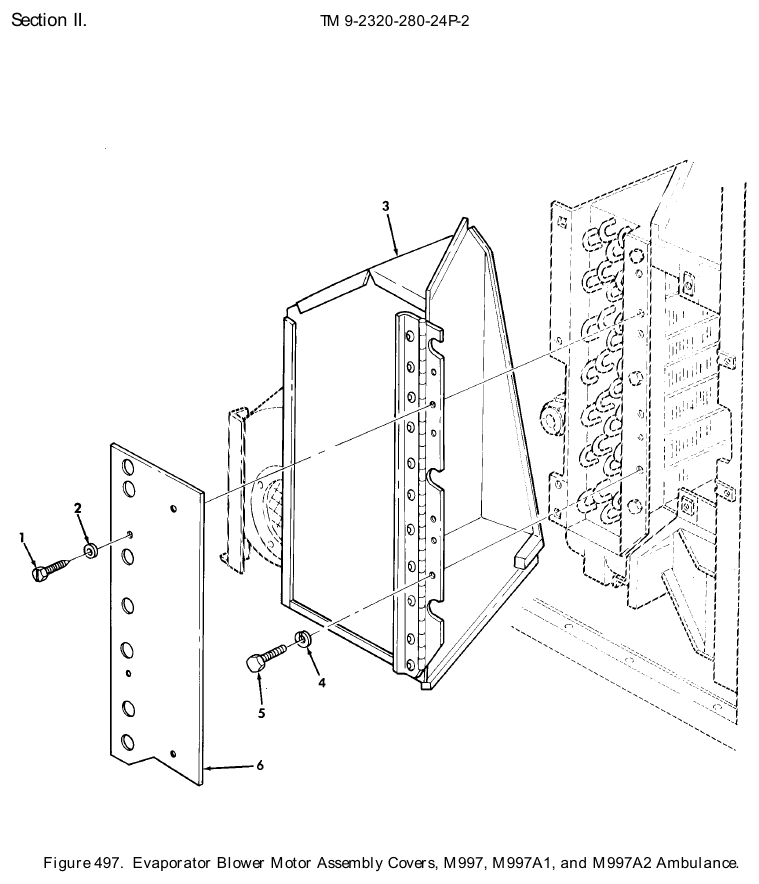

TM 9-2320-280-24P figure 497, Evaporator Blower Motor Assembly Covers, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tapping Screw NSN 5305-01-254-2460 · P/N 5592840 SCREW,TAPPING,THREA #10-16 X 1/2 Fits: M997, M997A1, M997A2	4	We can source it
2	Lock Washer NSN 5310-00-274-8710 · P/N 202751 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	4	We can source it
3	Access Cover NSN 5340-01-439-5636 · P/N 5598293 COVER,ACCESS Fits: M997, M997A1, M997A2	1	We can source it
4	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	6	2,325 in stock
5	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	6	471 in stock
6	Cover Plate P/N 5598307 COVER PLATE Fits: M997, M997A1, M997A2	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
