HMMWV Oil Filter, Adapter, and Oil Line Fittings TM 9-2320-280-24P · Fig. 6

Every part in figure 6 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0106 Engine Lubrication System: 10 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

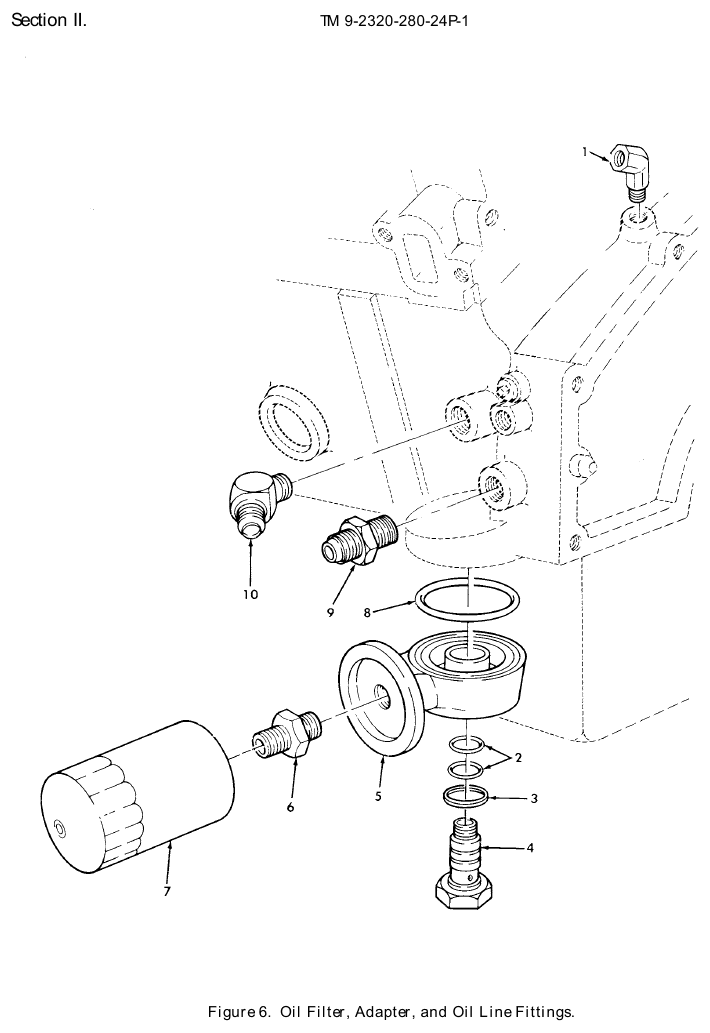

TM 9-2320-280-24P figure 6, Oil Filter, Adapter, and Oil Line Fittings: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Pipe Elbow NSN 4730-00-911-5707 · P/N 454097 ELBOW,PIPE Fits: All models	1	11 in stock
2	O-Ring NSN 5330-01-107-4950 · P/N M83461/1-020 O-RING Fits: All models	2	209 in stock
3	Gasket NSN 5330-01-184-6500 · P/N 5577933 GASKET Fits: All models	1	165 in stock
4	Fluid Passage Bolt NSN 4730-01-187-6929 · P/N 12339410 BOLT,FLUID PASSAGE Fits: All models	1	1 in stock $30–$60 eachtypical
5	Straight Tube to Boss Adapter NSN 4730-01-168-7872 · P/N 12338780 BRACKET,FILTER MOUN Fits: All models	1	We can source it $55–$105 eachtypical
6	Boss Reducer NSN 4730-01-150-0879 · P/N 14022700 REDUCER,BOSS Fits: All models	1	We can source it
7	Fluid Filter Element NSN 4330-01-398-8484 · P/N PF1218 FILTER ELEMENT,FLUI Fits: All models	1	53 in stock $25.99our price Buy online ↗
8	O-Ring NSN 5331-01-183-0971 · P/N M83461/1-236 O-RING Fits: All models	1	15 in stock
9	Straight Pipe to Tube Adapter NSN 4730-01-066-1278 · P/N MS51500A10-6 ADAPTER,STRAIGHT,PI 3/8-5/8 Fits: All models	1	We can source it
10	Pipe to Tube Elbow NSN 4730-00-728-2393 · P/N 2023-6-10S ELBOW,PIPE TO TUBE 3/8-5/8 Fits: All models	1	312 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
