HMMWV Sending Units TM 9-2320-280-24P · Fig. 66

Every part in figure 66 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0610 Sending Units and Warning Switches: 12 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

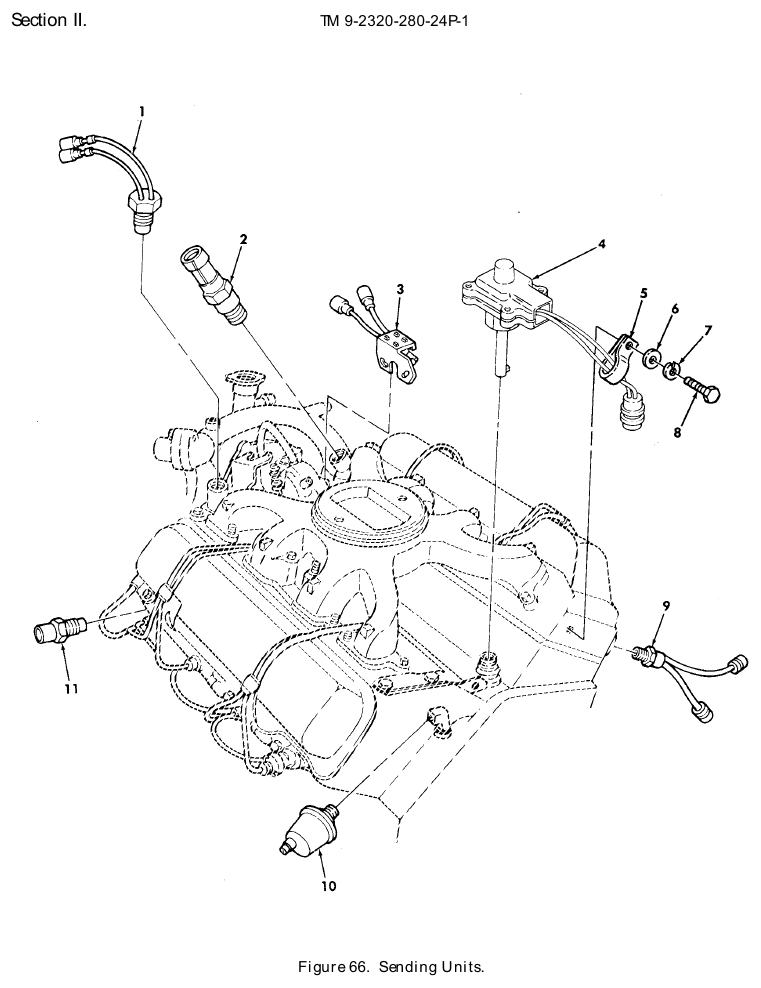

TM 9-2320-280-24P figure 66, Sending Units: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Thermostatic Switch NSN 5930-01-237-7322 · P/N 12338599 SWITCH,THERMOSTATIC Fits: All models	1	171 in stock $110.00our price Buy online ↗
2	Breakerless Ignitio Control Unit NSN 2920-01-175-7214 · P/N 12338772 CONTROL UNIT,BREAK USE WITH NSN 6110013959585 Fits: All models	1	2,148 in stock $83.30our price Buy online ↗
2	Breakerless Ignitio Control Unit NSN 2920-01-469-6903 · P/N 12469158-2 COIL,ELECTRICAL USE WITH NSN 6110014701931 AND NSN 6110014639260 Fits: All models	1	41 in stock
3	Sensitive Switch NSN 5930-01-199-8853 · P/N 12339494 SWITCH,SENSITIVE Fits: All A0 and A1 models, plus M1121	1	29 in stock $125.76 per eachgov't list price
4	Mechanical Fixed Moun Tachometer NSN 6680-01-148-8875 · P/N 12258931-2 TACHOMETER,MECHANIC Fits: All models	1	186 in stock $112.60our price Buy online ↗
5	Loop Clamp NSN 5340-00-833-8476 · P/N MS21333-122 CLAMP,LOOP Fits: All A2 models, plus M1123	1	We can source it
6	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT Fits: All A2 models, plus M1123	1	1,146 in stock $7.83our price Buy online ↗
7	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK Fits: All A2 models, plus M1123	1	1 in stock
8	Machine Bolt NSN 5306-01-206-7172 · P/N 11501940 BOLT,MACHINE Fits: All A2 models, plus M1123	1	We can source it
9	Thermostatic Switch NSN 5930-01-183-6637 · P/N 12338596 SWITCH,THERMOSTATIC Fits: All models	1	10 in stock $101.67 per eachgov't list price
10	Pressure Transmitter NSN 6620-00-993-5546 · P/N 7416363 TRANSMITTER,PRESSUR Fits: All models	1	19 in stock $77.00our price Buy online ↗
11	Engine Temperature Transmitter NSN 6620-01-194-6586 · P/N TS6058 TRANSMITTER,ENGINE Fits: All models	1	172 in stock $59.00our price Buy online ↗

Buy the 6 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
