HMMWV Blackout, Dome, and Spotlight, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 65

Every part in figure 65 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0609 Lights: 28 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

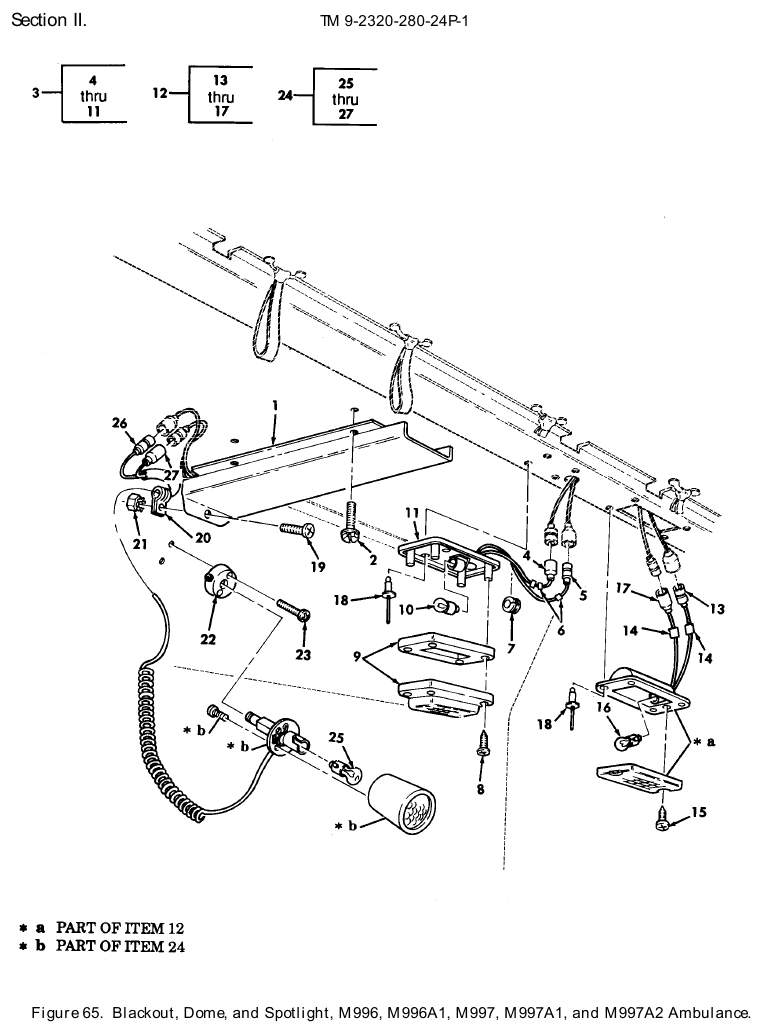

TM 9-2320-280-24P figure 65, Blackout, Dome, and Spotlight, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Molding NSN 2590-01-276-7633 · P/N 5597243 MOLDING,METAL Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $30–$60 eachtypical
2	Cap Screw NSN 5305-01-272-9042 · P/N 5593409 SCREW,CAP,HEXAGON H #10-32 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it
3	Marker Clearance Light NSN 6220-01-269-5263 · P/N 922-621-02 LIGHT,MARKER,CLEARA Fits: M996, M996A1, M997, M997A1, M997A2	2	15 in stock quote only $267.79 per eachgov't list price
4	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	19 in stock
5	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	35 in stock
6	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it
7	Nonmetallic Grommet NSN 5325-00-928-6214 · P/N MS35489-115 GROMMET,NONMETALLIC Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
8	Machine Screw NSN 5305-00-164-7082 · P/N MS51849-11 SCREW,MACHINE #6-32 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	300 in stock
9	Light Lens NSN 6220-01-338-2059 · P/N 922-929-00 LENS,LIGHT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $460.39 per eachgov't list price
10	Incandescent Lamp NSN 6240-00-060-4707 · P/N 1309 LAMP,INCANDESCENT 15 CANDLE POWER Fits: M996, M996A1, M997, M997A1, M997A2	1	15 in stock quote only
11	Lampholder Base NSN 6250-01-339-6271 · P/N 922-925-10 BASE,LAMPHOLDER Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $419.29 per eachgov't list price
12	Dome Light NSN 6220-01-269-7066 · P/N 12341239 LIGHT,DOME Fits: M996, M996A1, M997, M997A1, M997A2	4	1 in stock $35–$70 eachtypical
13	Plug Electrical Connector NSN 5935-00-115-2307 · P/N MS27144-2 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	55 in stock
14	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M996, M996A1, M997, M997A1, M997A2	3	We can source it
15	Machine Screw NSN 5305-00-164-7082 · P/N MS51849-11 SCREW,MACHINE #6-32 X 3/4 Fits: M996, M996A1, M997, M997A1, M997A2	4	300 in stock
16	Incandescent Lamp NSN 6240-00-155-7790 · P/N 308 LAMP,INCANDESCENT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
17	Plug Electrical Connector NSN 5935-00-115-2306 · P/N MS27142-3 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	1	9 in stock
18	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND 1/8 Fits: M996, M996A1, M997, M997A1, M997A2	8	132 in stock
19	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	2	4 in stock
20	Loop Clamp NSN 5340-00-843-7825 · P/N MS21333-68 CLAMP,LOOP Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it
21	Nut P/N 5593413 NUT #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	2	Ask us
22	Light Stand NSN 6230-01-269-8054 · P/N 922-721-00 STAND,LIGHT Fits: M996, M996A1, M997, M997A1, M997A2	2	16 in stock $100.52 per eachgov't list price
23	Machine Screw NSN 5305-01-272-5433 · P/N 5593390 SCREW,MACHINE #10-32 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
24	Spotlight NSN 6220-01-266-1651 · P/N 922-720-11 SPOTLIGHT Fits: M997, M997A1, M997A2	4	3 in stock $306.21 per eachgov't list price
24	Spotlight NSN 6220-01-266-1651 · P/N 922-720-11 SPOTLIGHT Fits: M996, M996A1	2	3 in stock $306.21 per eachgov't list price
25	Incandescent Lamp NSN 6240-00-060-4707 · P/N 1309 LAMP,INCANDESCENT 15 CANDLE POWER Fits: M996, M996A1, M997, M997A1, M997A2	2	15 in stock quote only
26	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	2	35 in stock
27	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: M996, M996A1, M997, M997A1, M997A2	2	19 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
