HMMWV Fuel Pressure Transducer, Fuel Level Transmitter, Parking Brake, Backup Light Switches, and Transfer Indicator Switch TM 9-2320-280-24P · Fig. 67

Every part in figure 67 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0610 Sending Units and Warning Switches: 8 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

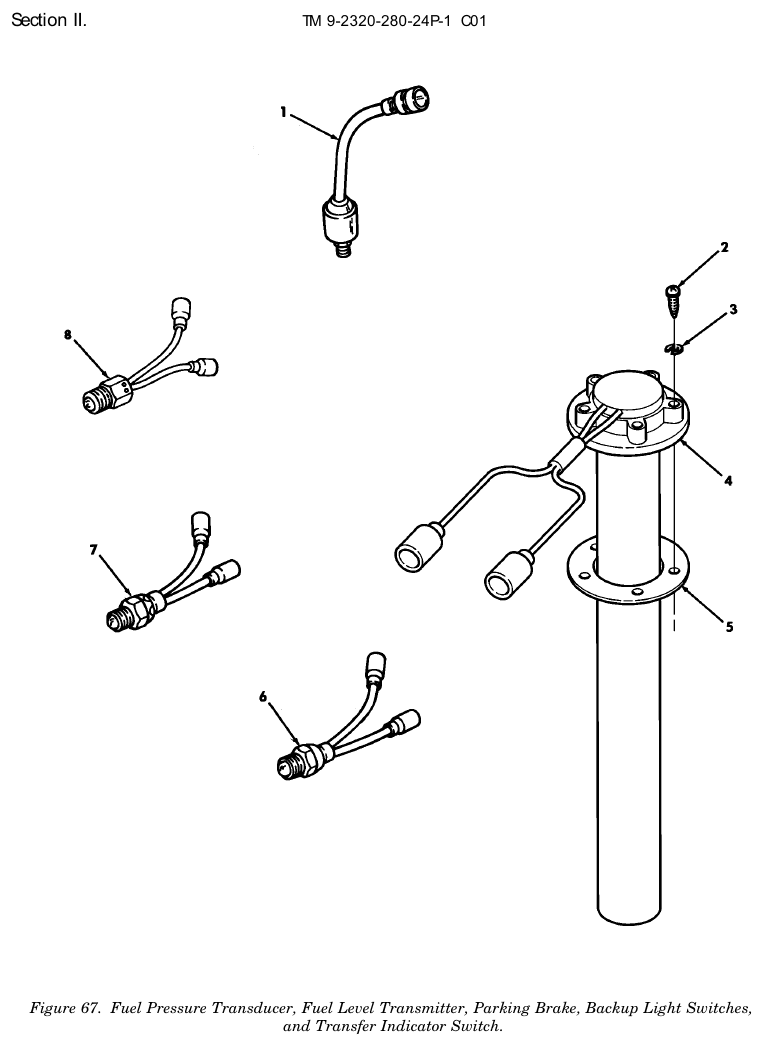

TM 9-2320-280-24P figure 67, Fuel Pressure Transducer, Fuel Level Transmitter, Parking Brake, Backup Light Switches, and Transfer Indicator Switch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Pressure Transmitter NSN 6685-01-167-4298 · P/N 12258932-6 TRANSMITTER,PRESSUR Fits: All models	1	Sold out — we can source it
2	Machine Screw NSN 5305-01-478-2767 · P/N 454774 SCREW,MACHINE #10-24 X 1-1/4 Fits: All models	5	200 in stock
3	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK #10 Fits: All models	5	We can source it
4	Liquid Quantity Transmitter NSN 6680-01-484-5367 · P/N 9606060-004 TRANSMITTER,LIQUID Fits: All models	1	82 in stock $138.64 per eachgov't list price
5	Gasket NSN 5330-00-753-9072 · P/N 7539072 GASKET Fits: All models	1	204 in stock
6	Sensitive Switch NSN 5930-01-212-3373 · P/N 12338435 SWITCH,SENSITIVE Fits: All models	1	8 in stock $80–$135 eachtypical
7	Push Switch NSN 5930-01-183-6757 · P/N 12356704 SWITCH,PUSH Fits: All models	1	216 in stock $45–$90 eachtypical
8	Indicator Light NSN 6220-01-361-5084 · P/N 5938705 LIGHT,INDICATOR USE WITH TRANSFER ASSEMBLY P/N 5937387 OR P/N 12447125 Fits: All A1 and A2 models, plus M1097, M1123	1	We can source it $70–$120 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
