HMMWV Horn and Horn Button Assembly TM 9-2320-280-24P · Fig. 68

Every part in figure 68 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0611 Horn, Siren: 12 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

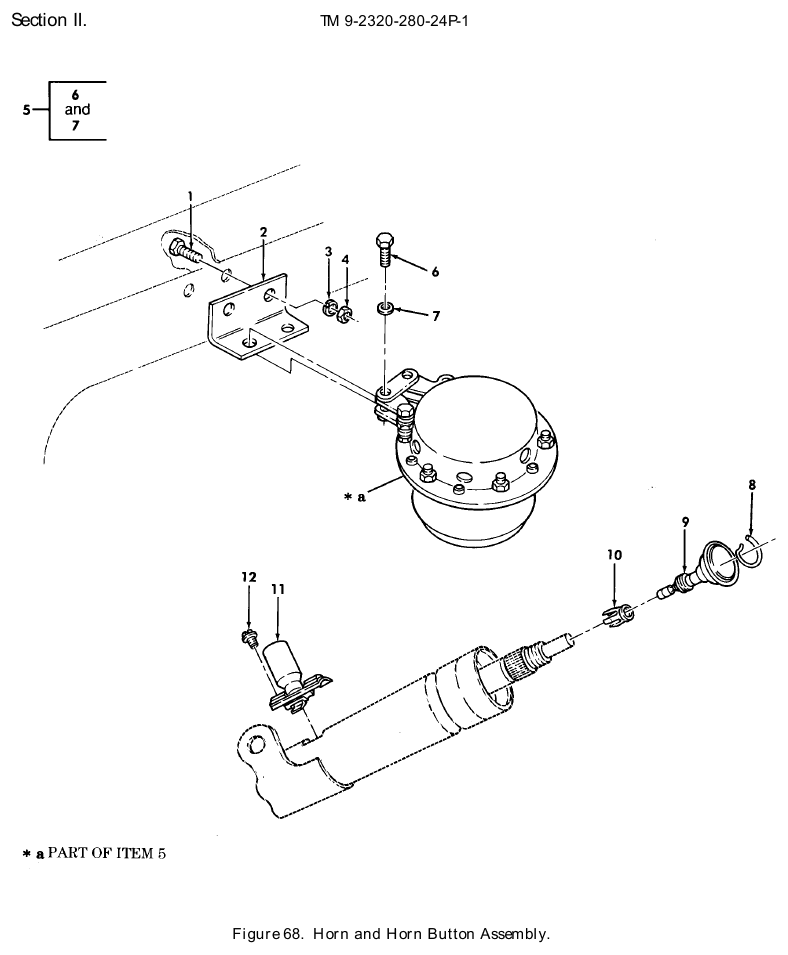

TM 9-2320-280-24P figure 68, Horn and Horn Button Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	2	471 in stock
2	Angle Bracket NSN 5340-01-189-7558 · P/N 12338609 BRACKET,ANGLE Fits: All models	1	38 in stock
3	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 Fits: All models	2	1,162 in stock
4	Plain Hexagon Nut NSN 5310-01-148-0240 · P/N 9419143 NUT,PLAIN,HEXAGON 1/4-20 Fits: All models	2	We can source it
5	Signal Horn NSN 2590-00-683-0598 · P/N 9630 HORN,ELECTRICAL Fits: All models	1	239 in stock $76.50our price Buy online ↗
6	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025F075N SCREW,CAP,HEXAGON H 1/4-28 X 3/4 Fits: All models	2	248 in stock
7	Lock Washer NSN 5310-00-550-1130 · P/N MS35333-40 WASHER,LOCK 1/4 Fits: All models	2	2,548 in stock $6.85our price Buy online ↗
8	Retaining Ring NSN 5325-01-144-4871 · P/N 8754124 RING,RETAINING Fits: All models	1	100 in stock
9	Vehicle Horn Button NSN 2530-01-189-0897 · P/N 7000 HORN BUTTON,VEHICLE Fits: All models	1	1 in stock $40–$80 per assemblytypical
10	Electrical Switch Retainer NSN 5930-01-153-8215 · P/N 8754125 RETAINER,ELECTRICAL Fits: All models	1	291 in stock
11	Horn Contact-Terminal NSN 5977-01-193-9931 · P/N 5572983 CONTACT-TERMINAL,HO Fits: All models	1	77 in stock quote only $25–$40 per assemblytypical
12	Assembled Washer Screw NSN 5305-01-197-7547 · P/N 46827 SCREW,ASSEMBLED WAS Fits: All models	2	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
