HMMWV Buss Bar and Related Parts TM 9-2320-280-24P · Fig. 70

Every part in figure 70 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0612 Batteries, Storage: 14 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

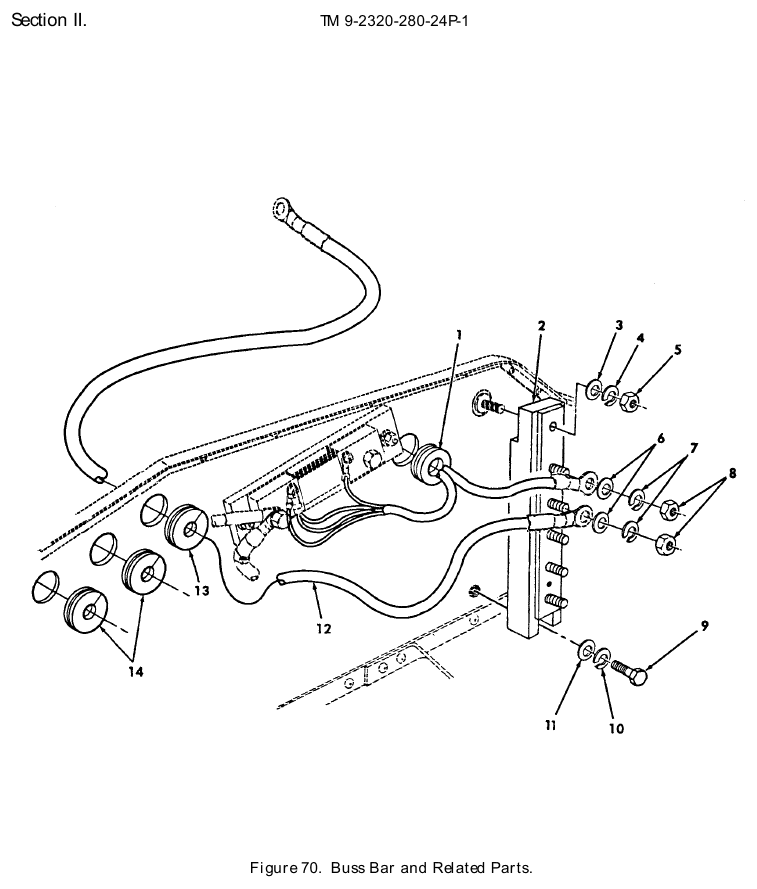

TM 9-2320-280-24P figure 70, Buss Bar and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Grommet NSN 5325-00-174-9038 · P/N S1608 GROMMET,NONMETALLIC Fits: All A2 models, plus M1123	1	9 in stock
2	Conductor Bus NSN 6150-01-413-7946 · P/N 12460070 BUS,CONDUCTOR Fits: All A2 models, plus M1123	1	1 in stock $50–$90 eachtypical
3	Flat Washer NSN 5310-01-185-7208 · P/N 88587 WASHER,FLAT Fits: All A2 models, plus M1123	2	We can source it
4	Lock Washer NSN 5310-01-186-7066 · P/N 85031 WASHER,LOCK Fits: All A2 models, plus M1123	2	We can source it
5	Plain Hexagon Nut NSN 5310-01-185-7188 · P/N 85764 NUT,PLAIN,HEXAGON Fits: All A2 models, plus M1123	2	144 in stock
6	Flat Washer NSN 5310-00-045-5218 · P/N MS15795-918 WASHER,FLAT 1/2 Fits: All A2 models, plus M1123	5	We can source it
7	Lock Washer NSN 5310-00-011-6121 · P/N MS35338-67 WASHER,LOCK 1/2 Fits: All A2 models, plus M1123	5	337 in stock
8	Plain Hexagon Nut NSN 5310-00-913-5474 · P/N MS51969-5 NUT,PLAIN,HEXAGON 1/2-13 Fits: All A2 models, plus M1123	5	We can source it
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	1	471 in stock
10	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 Fits: All A2 models, plus M1123	1	1,162 in stock
11	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All A2 models, plus M1123	4	2,325 in stock
12	Electrical Lead NSN 6150-01-416-7899 · P/N 12446825 LEAD,ELECTRICAL CABLE ASSEMBLY POSITIVE, 200AMP Fits: M997A2, M1097A2, M1123	1	We can source it $161.82 per eachgov't list price
13	Nonmetallic Grommet NSN 5325-00-290-1960 · P/N MS35489-27 GROMMET,NONMETALLIC Fits: M997A2, M1097A2, M1123	1	20 in stock
14	Nonmetallic Grommet NSN 5325-00-276-6343 · P/N MS35489-23 GROMMET,NONMETALLIC Fits: All A2 models, plus M1123	2	232 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
