HMMWV Batteries, Cables, and Related Parts TM 9-2320-280-24P · Fig. 69

Every part in figure 69 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0612 Batteries, Storage: 42 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

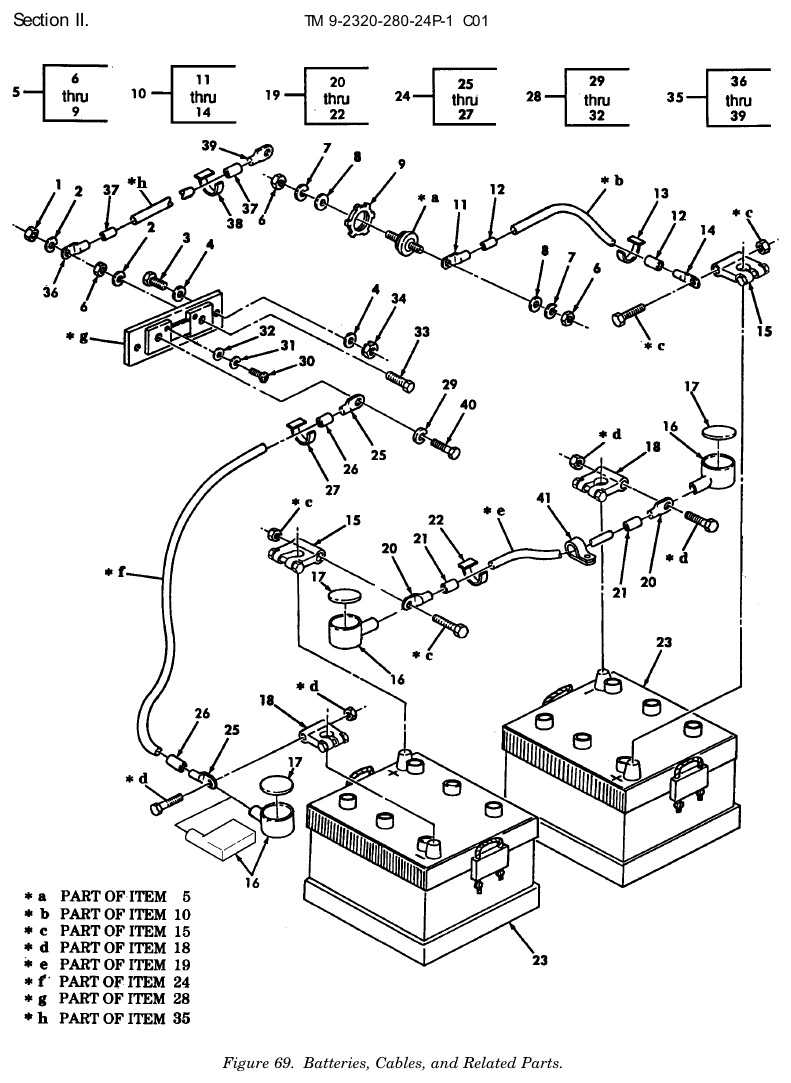

TM 9-2320-280-24P figure 69, Batteries, Cables, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-00-768-0318 · P/N 9413509 NUT,PLAIN,HEXAGON 1/2-13 Fits: All models	2	194 in stock
2	Lock Washer NSN 5310-00-584-5272 · P/N ERNA245 WASHER,LOCK 1/2 Fits: All models	2	833 in stock
3	Threaded Spacing Standoff NSN 5340-01-195-1575 · P/N 9437889 SCREW,MACHINE 1/4-20 X 1.00 Fits: All models	2	We can source it
4	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT Fits: All models	4	2,325 in stock
5	Feedthru Terminal NSN 5940-01-180-3655 · P/N 46211-03 TERMINAL,FEEDTHRU Fits: All models	1	We can source it $30–$65 eachtypical
6	Plain Hexagon Nut NSN 5310-01-185-7188 · P/N 85764 NUT,PLAIN,HEXAGON Fits: All models	2	144 in stock
7	Lock Washer NSN 5310-01-186-7066 · P/N 85031 WASHER,LOCK 1/2 Fits: All models	2	We can source it
8	Flat Washer NSN 5310-01-185-7208 · P/N 88587 WASHER,FLAT 1/2 Fits: M1097A1, M1097A2	2	We can source it
9	Self-Locking Round Nut NSN 5310-01-186-6930 · P/N 83320 NUT Fits: All models	1	We can source it
10	Cable Assembly Make From Wire P/N 5578875 CABLE ASSEMBLY MAKE FROM WIRE,P/N M13486/1-14, 25 INCHES LONG Fits: All models	1	Ask us
11	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG Fits: All models	1	We can source it
12	Electrical Insulation Sleeving NSN 5970-00-221-5301 · P/N TURB0LEX76B INSULATION SLEEVING Fits: All models	2	We can source it
13	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All models	1	1 in stock $20.58our price Buy online ↗
14	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG Fits: All models	1	30 in stock
15	Battery Terminal Adapter NSN 5940-00-549-6581 · P/N A52425-1 ADAPTER,BATTERY TER Fits: All models	2	246 in stock
16	Dust and Moisture Seal Boot NSN 5340-01-378-5201 · P/N 12342646 BOOT,DUST AND MOIST PART OF KIT P/N 5935425 Fits: All models	3	121 in stock $25–$50 eachtypical
16	Vehicular Components Boot NSN 2530-01-089-4992 · P/N 12290948 BOOT,VEHICULAR COMP USE AS OPTIONAL REPLACEMENT FOR P/N,12342646 Fits: All models	3	320 in stock
17	Protective Dust and Moisture Cap NSN 5340-01-378-7525 · P/N 12342647 CAP,PROTECTIVE,DUST PART OF KIT P/N 5935425 Fits: All models	3	245 in stock
18	Battery Terminal Adapter NSN 5940-00-549-6583 · P/N 7320533 ADAPTER,BATTERY TER Fits: All models	2	477 in stock
19	Cable Assembly Make From Wire P/N 5578876 CABLE ASSEMBLY MAKE FROM WIRE, P/N M13486/1-14, 13 INCHES LONG Fits: All models	1	Ask us
20	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG Fits: All models	2	30 in stock
21	Electrical Insulation Sleeving NSN 5970-00-221-5301 · P/N RESINITEEP69C INSULATION SLEEVING Fits: All models	2	We can source it
22	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All models	1	1 in stock $20.58our price Buy online ↗
23	Storage Battery NSN 6140-01-446-9498 · P/N 6TLMFTYI BATTERY,STORAGE Fits: All models	2	We can source it quote only $438.63 per eachgov't list price
24	Cable Assembly Make From Wire P/N 5578874 CABLE ASSEMBLY MAKE FROM WIRE, P/N M13486/1-14, 21 INCHES LONG Fits: All models	1	Ask us
25	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG Fits: All models	2	30 in stock
26	Electrical Insulation Sleeving NSN 5970-00-221-5301 · P/N RESINITEEP69C INSULATION SLEEVING Fits: All models	2	We can source it
27	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All models	1	1 in stock $20.58our price Buy online ↗
28	Instrument Shunt NSN 6625-01-192-7498 · P/N 12340570 SHUNT,INSTRUMENT Fits: All models	1	We can source it $346.36 per eachgov't list price
29	Lock Washer NSN 5310-00-184-8971 · P/N MS35338-103 WASHER,LOCK 3/8 Fits: All models	1	1 in stock
30	Machine Screw NSN 5305-00-206-2508 · P/N MS35215-53 SCREW,MACHINE #10-32 X .375 Fits: All models	2	We can source it
31	Lock Washer NSN 5310-00-261-8278 · P/N MS35338-100 WASHER,LOCK #10 Fits: All models	2	We can source it
32	Flat Washer NSN 5310-00-045-5207 · P/N MS15795-908 WASHER,FLAT #10 Fits: All models	2	14 in stock
33	Cap Hexagon Head Screw NSN 5305-01-315-8649 · P/N 12342338 SCREW,CAP,HEXAGON H 1/2 X 3.00 Fits: All models	1	We can source it
34	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: All models	2	570 in stock
35	Electrical Lead NSN 6150-01-417-3411 · P/N 12446821-3 LEAD,ELECTRICAL Fits: All A2 models, plus M1123	1	We can source it $55–$100 eachtypical
36	Lug Terminal NSN 5940-00-735-5520 · P/N 7355520 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
37	Insulation Sleeving Make From P/N M23053/4-304-0-1 INSULATION SLEEVING MAKE FROM INSULATION SLEEVING,P/N M23053/4- 304-0,1 INCH LONG Fits: All A2 models, plus M1123	2	Ask us
38	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER Fits: All A2 models, plus M1123	2	1 in stock $20.58our price Buy online ↗
39	Lug Terminal NSN 5940-00-115-2685 · P/N MS20659-152 TERMINAL,LUG Fits: All A2 models, plus M1123	1	We can source it
40	Machine Bolt NSN 5306-00-425-8569 · P/N 174697 BOLT,MACHINE 3/8-16 Fits: All models	1	We can source it
41	Loop Clamp NSN 5340-00-057-3052 · P/N MS21333-114 CLAMP,LOOP Fits: All models	1	We can source it

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
