HMMWV 200 AMP Umbilical Power Cable TM 9-2320-280-24P · Fig. 74

Every part in figure 74 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0612 Batteries, Storage: 16 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

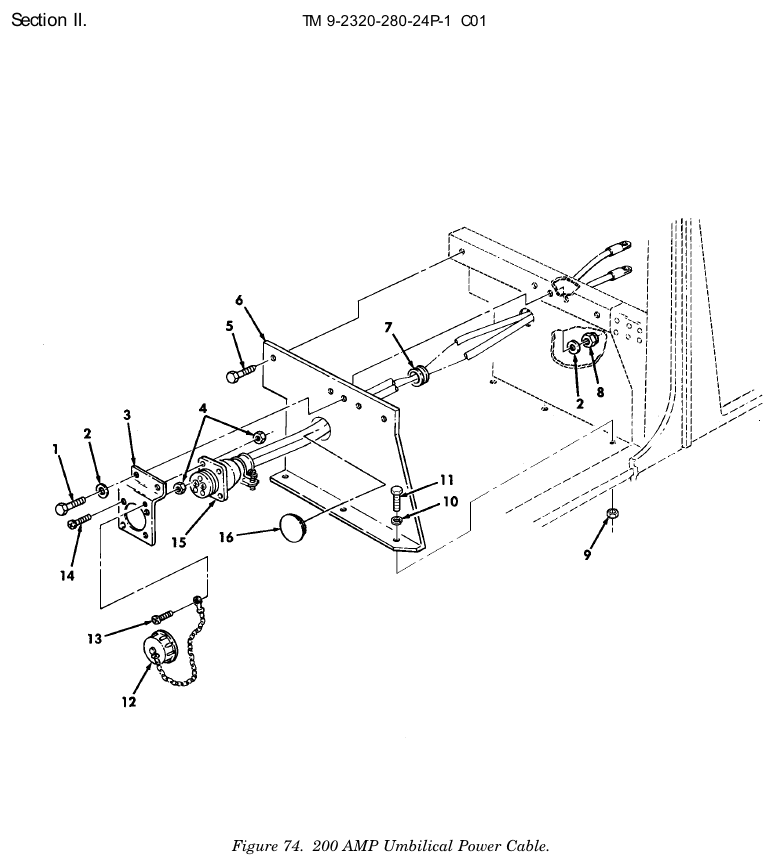

TM 9-2320-280-24P figure 74, 200 AMP Umbilical Power Cable: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 Fits: M1097, M1097A1, M1097A2, M1123	2	276 in stock
2	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M1097, M1097A1, M1097A2, M1123	4	1,368 in stock
3	Double Angle Bracket NSN 5340-01-358-6697 · P/N 12342658 BRACKET,DOUBLE ANGL Fits: M1097, M1097A1, M1097A2, M1123	1	We can source it $25–$40 eachtypical
4	Plain Assembled Washer Nut NSN 5310-01-069-5243 · P/N 271163 NUT,PLAIN,ASSEMBLED #8-32 Fits: M1097, M1097A1, M1097A2, M1123	5	39 in stock
5	Tapping Screw NSN 5305-01-006-5736 · P/N DR-T10X3/4 SCREW,TAPPING Fits: M1097, M1097A1, M1097A2, M1123	3	We can source it
6	Body Vehicular Panel NSN 2510-01-383-5444 · P/N 12339036-1 PANEL,BODY VEHICULA Fits: M1097, M1097A1, M1097A2, M1123	1	We can source it $65–$105 eachtypical
7	Nonmetallic Grommet NSN 5325-01-289-7859 · P/N 2400 GROMMET,NONMETALLIC Fits: M1097, M1097A1, M1097A2, M1123	1	1,268 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M1097, M1097A1, M1097A2, M1123	2	354 in stock
9	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON Fits: M1097, M1097A1, M1097A2, M1123	3	952 in stock
10	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK Fits: M1097, M1097A1, M1097A2, M1123	3	2,036 in stock
11	Machine Screw NSN 5305-00-470-3321 · P/N MS51849-74 SCREW,MACHINE Fits: M1097, M1097A1, M1097A2, M1123	3	75 in stock
12	Electrical Connector Cover NSN 5935-01-223-9420 · P/N MS25043-32DA COVER,ELECTRICAL CO Fits: M1097, M1097A1, M1097A2, M1123	1	We can source it $25–$45 eachtypical
13	Machine Screw NSN 5305-01-359-0167 · P/N 159612 SCREW,MACHINE #8-32 X .625 Fits: M1097, M1097A1, M1097A2, M1123	1	We can source it
14	Machine Screw NSN 5305-01-035-8766 · P/N NAS387-832-12P SCREW,MACHINE #8-32 X .750 Fits: M1097, M1097A1, M1097A2, M1123	4	We can source it
15	Electrical Lead NSN 6150-01-361-8129 · P/N 07687-2 LEAD,ELECTRICAL Fits: M1097, M1097A1, M1097A2, M1123	1	1 in stock $243.76 per eachgov't list price
16	Plug Button NSN 5340-01-038-1493 · P/N 454253 BUTTON,PLUG Fits: M1097, M1097A1, M1097A2, M1123	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
