HMMWV Engine Wiring Harness TM 9-2320-280-24P · Fig. 75

Every part in figure 75 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 50 lines, 33 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

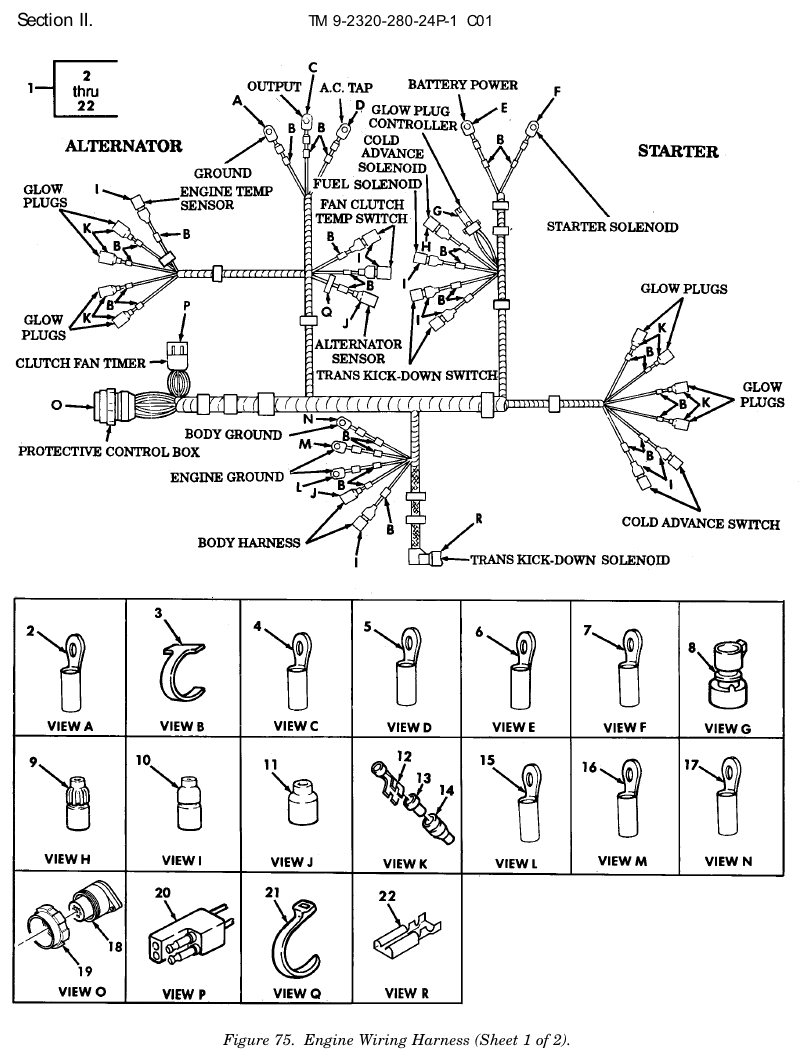

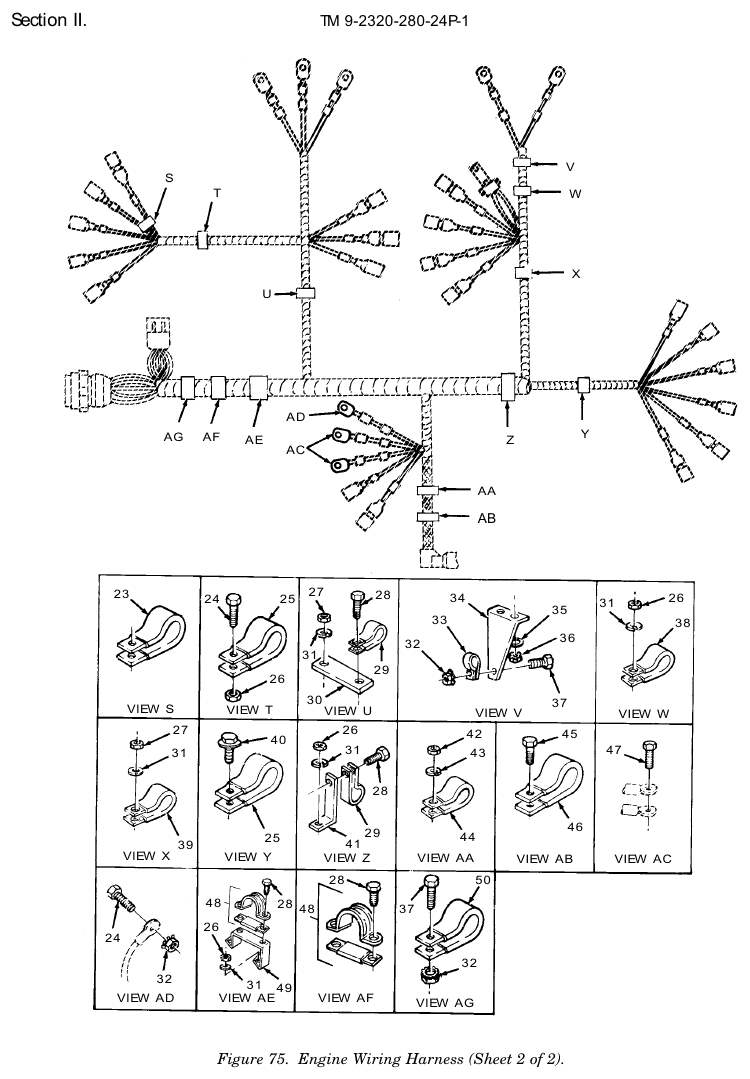

TM 9-2320-280-24P figure 75, Engine Wiring Harness, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Branched Wiring Harness NSN 5995-01-184-5545 · P/N 12339350 WIRING HARNESS,BRAN 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	3 in stock $2,205.68 per eachgov't list price
2	Lug Terminal NSN 5940-00-705-6714 · P/N TG14 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	We can source it
3	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All A0 and A1 models, plus M1121	28	We can source it
4	Lug Terminal NSN 5940-00-113-9825 · P/N MS20659-141 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	100 in stock
5	Lug Terminal NSN 5940-00-107-1481 · P/N MS20659-104 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Lug Terminal NSN 5940-00-114-1315 · P/N BLM8S18 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	33 in stock
7	Lug Terminal NSN 5940-00-705-6708 · P/N TG8 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	We can source it
8	Standoff Insulator NSN 5970-01-180-9776 · P/N 12339503 INSULATOR,STANDOFF Fits: All A0 and A1 models, plus M1121	1	1 in stock
9	Plug Electrical Connector NSN 5935-00-184-6707 · P/N MS27144-3 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	We can source it
10	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	9	35 in stock
11	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	2	19 in stock
12	Quick Disconnect Terminal Set NSN 5940-00-399-6676 · P/N 8338564 TERMINAL SET,QUICK Fits: All A0 and A1 models, plus M1121	8	861 in stock
13	Bushing Insulator NSN 5970-00-833-8562 · P/N 8338562 INSULATOR,BUSHING Fits: All A0 and A1 models, plus M1121	8	469 in stock
14	Electrical Cable Nipple NSN 5975-01-207-1706 · P/N 12339334 CABLE NIPPLE,ELECTR Fits: All A0 and A1 models, plus M1121	8	We can source it
15	Lug Terminal NSN 5940-00-705-6715 · P/N TG15 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	We can source it
16	Lug Terminal NSN 5940-00-705-6711 · P/N TG11 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	We can source it
17	Lug Terminal NSN 5940-00-705-6703 · P/N TG3 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	1	34 in stock
18	Plug Electrical Connector NSN 5935-01-415-4322 · P/N 12342654 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	We can source it $185.13 per eachgov't list price
19	Plain Round Nut NSN 5310-01-415-5245 · P/N 12342864 NUT,PLAIN,ROUND Fits: All A0 and A1 models, plus M1121	1	We can source it $90–$150 eachtypical
20	Electrical Connector Insert NSN 5935-01-415-4392 · P/N 12342712 INSERT,ELECTRICAL C Fits: All A0 and A1 models, plus M1121	1	We can source it
21	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: All A0 and A1 models, plus M1121	1	269 in stock
22	Terminal P/N 371230-B01 TERMINAL,RECEPTACLE Fits: All A0 and A1 models, plus M1121	1	Ask us
23	Loop Clamp NSN 5340-00-809-1490 · P/N MS21333-98 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	514 in stock
24	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 1/2 Fits: All A0 and A1 models, plus M1121	2	19 in stock
25	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	5 in stock
26	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All A0 and A1 models, plus M1121	4	474 in stock
27	Plain Hexagon Nut NSN 5310-01-155-2503 · P/N 11514603 NUT,PLAIN,HEXAGON 10 MM Fits: All A0 and A1 models, plus M1121	2	We can source it
28	Tapping Screw NSN 5305-01-206-8401 · P/N 5592954 SCREW,TAPPING 1/4-28 X 1/2 Fits: All A0 and A1 models, plus M1121	6	6,550 in stock
29	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	23 in stock
30	Angle Bracket NSN 5340-01-212-4716 · P/N 12339335 BRACKET,ANGLE Fits: All A0 and A1 models, plus M1121	1	We can source it
31	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK 10MM Fits: All A0 and A1 models, plus M1121	6	1 in stock
32	Self-Locking Nut NSN 5310-01-252-2999 · P/N 5593033 NUT,SELF-LOCKING,AS 1/4-20 Fits: All A0 and A1 models, plus M1121	2	1,286 in stock
33	Loop Clamp NSN 5340-00-088-1254 · P/N MS21333-104 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	40 in stock
34	Angle Bracket NSN 5340-01-209-7387 · P/N 12339333 BRACKET,ANGLE Fits: All A0 and A1 models, plus M1121	1	3 in stock
35	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 6MM Fits: All A0 and A1 models, plus M1121	2	4,285 in stock
36	Plain Hexagon Nut NSN 5310-01-158-6257 · P/N 11503739 NUT,PLAIN,HEXAGON 6MM X 1 Fits: All A0 and A1 models, plus M1121	2	We can source it
37	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: All A0 and A1 models, plus M1121	2	We can source it
38	Loop Clamp NSN 5340-00-725-5280 · P/N MS21333-125 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	40 in stock
39	Loop Clamp NSN 5340-00-053-8994 · P/N MS21333-126 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	23 in stock
40	Assembled Washer Screw NSN 5305-01-215-5174 · P/N 12340515 SCREW,ASSEMBLED WAS Fits: All A0 and A1 models, plus M1121	1	153 in stock
41	Angle Bracket NSN 5340-01-206-5540 · P/N 12339336 BRACKET,ANGLE Fits: All A0 and A1 models, plus M1121	1	137 in stock $25–$40 eachtypical
42	Plain Hexagon Nut NSN 5310-00-732-0558 · P/N MS51967-8 NUT,PLAIN,HEXAGON 3/8-16 Fits: All A0 and A1 models, plus M1121	1	398 in stock
43	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All A0 and A1 models, plus M1121	1	1,162 in stock
44	Loop Clamp NSN 5340-00-964-5267 · P/N MS21333-120 CLAMP,LOOP Fits: All A0 models; all A1 models except M996A1, M1025A1, M1026A1, plus M1121	1	319 in stock
44	Tapping Screw NSN 5305-00-757-8122 · P/N MS51851-64 SCREW,TAPPING #10-24 X 7/16 Fits: All A0 and A1 models, plus M1121	1	We can source it
46	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	19 in stock
47	Machine Bolt NSN 5306-01-251-9190 · P/N G-11501940 BOLT,MACHINE 10-1.5 X 20MM Fits: All A0 and A1 models, plus M1121	1	27 in stock $200.03 per eachgov't list price
48	Retaining Strap NSN 5340-01-213-4667 · P/N 5588785 STRAP,RETAINING Fits: All A0 and A1 models, plus M1121	2	3 in stock
49	Mounting Bracket NSN 5340-01-198-0480 · P/N 12339343 BRACKET,MOUNTING Fits: All A0 and A1 models, plus M1121	1	5 in stock $25–$45 eachtypical
50	Loop Clamp NSN 5340-00-809-1500 · P/N MS21333-107 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	200 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
