HMMWV Air Intake and Exhaust Manifolds TM 9-2320-280-24P · Fig. 8

Every part in figure 8 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0108 Manifolds: 15 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

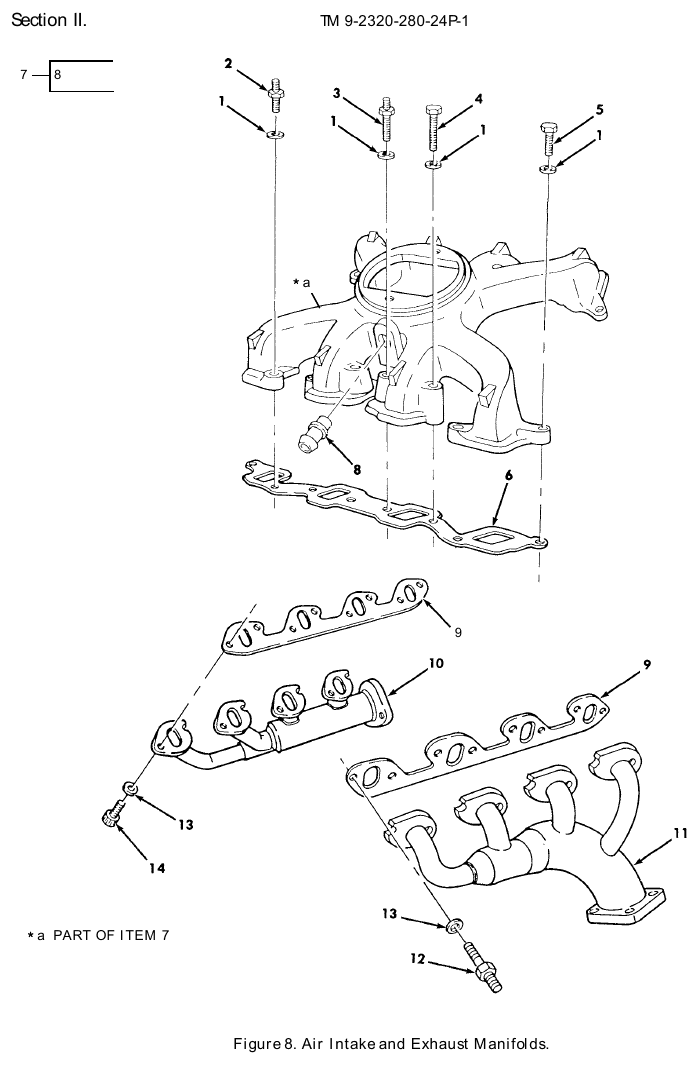

TM 9-2320-280-24P figure 8, Air Intake and Exhaust Manifolds: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-00-809-4061 · P/N MS27183-15 WASHER,FLAT 7/16 Fits: All models	16	763 in stock
2	Shouldered Stud NSN 5307-01-150-1227 · P/N 14033946 STUD,SHOULDERED 10-1.5 X 20 X 30 MM Fits: All models	6	1,577 in stock $14.69our price Buy online ↗
3	Shouldered Stud NSN 5307-01-150-5991 · P/N 23500832 STUD,SHOULDERED 10-1.5 X 17 X 56 MM Fits: All A2 models, plus M1123	5	2 in stock
3	Shouldered Stud NSN 5307-01-150-5991 · P/N 23500832 STUD,SHOULDERED 10-1.5 X 17 X 56 MM Fits: All A0 and A1 models, plus M1121	4	2 in stock
4	Cap Hexagon Head Screw NSN 5305-01-148-5915 · P/N 11505068 SCREW,CAP,HEXAGON H 10-1.5 X 60 Fits: All A0 and A1 models, plus M1121	1	101 in stock $30–$60 eachtypical
5	Machine Bolt NSN 5306-01-149-6280 · P/N 1635490 BOLT,SELF-LOCKING 10-1.5 X 30 MM Fits: All models	5	18 in stock
6	Gasket Set NSN 5330-01-157-0856 · P/N 15633464 GASKET SET Fits: All models	2	17 in stock quote only
7	Intake Manifold NSN 2815-01-168-7909 · P/N 23500035 MANIFOLD,INTAKE Fits: All models	1	9 in stock $286.85our price Buy online ↗
8	Straight Tube to Hose Adapter NSN 4730-01-164-7028 · P/N 14050444 ADAPTER,STRAIGHT,TU Fits: All models	1	143 in stock $25–$45 eachtypical
9	Gasket NSN 5330-01-194-0472 · P/N 5574856 GASKET Fits: All models	2	265 in stock
10	Exhaust Manifold NSN 2815-01-168-7917 · P/N 12338788 MANIFOLD,EXHAUST R.H Fits: All models	1	2 in stock $427.17 per eachgov't list price
11	Exhaust Manifold NSN 2815-01-168-7918 · P/N 12338787 MANIFOLD,EXHAUST Fits: All models	1	5 in stock $244.02our price Buy online ↗
12	Shouldered Stud NSN 5307-01-315-3597 · P/N 12339406-3 STUD,SHOULDERED L.H.M10 X 1.5 X 30.0 Fits: All models	1	298 in stock $25–$55 eachtypical
13	Flat Washer NSN 5310-01-210-1587 · P/N 11500256 WASHER,FLAT 11MM Fits: All models	16	We can source it
14	Cap Socket Head Screw NSN 5305-01-195-5818 · P/N 12339239-1 SCREW,CAP,SOCKET HE Fits: All models	15	141 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
