HMMWV Fuel Pump and Mounting Hardware TM 9-2320-280-24P · Fig. 9

Every part in figure 9 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 03 Fuel System: 7 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

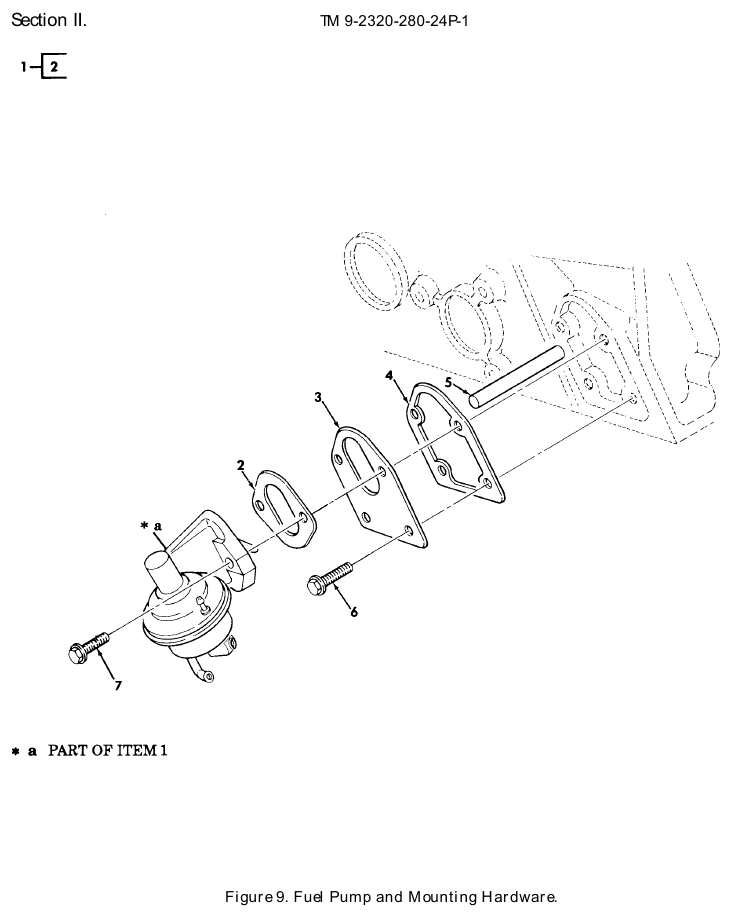

TM 9-2320-280-24P figure 9, Fuel Pump and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fuel Cam Actuated Pump NSN 2910-01-168-7905 · P/N 12342893 PUMP,FUEL,CAM ACTUA Fits: All models	1	58 in stock $79.00our price Buy online ↗
2	Gasket NSN 5330-01-393-9101 · P/N SC202494 GASKET Fits: All models	1	57 in stock
3	Fuel Pump Plate NSN 2910-00-493-2138 · P/N 3719599 PLATE,FUEL PUMP Fits: All models	1	2 in stock $25–$55 eachtypical
4	Gasket NSN 5330-00-830-1745 · P/N 12551502 GASKET Fits: All models	1	2 in stock
5	Straight Headless Pin NSN 5315-01-151-4180 · P/N 14050425 PIN,STRAIGHT,HEADLE Fits: All models	1	We can source it $45–$90 eachtypical
6	Assembled Washer Bolt NSN 5306-01-151-4925 · P/N 11509669 BOLT,ASSEMBLED WASH 6-1.0 X 13 MM Fits: All models	2	10 in stock $25–$45 eachtypical
7	Assembled Washer Bolt NSN 5306-01-497-4738 · P/N 5740269 BOLT,ASSEMBLED WASH 3/8-16 X 1.44 Fits: All models	2	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
