HMMWV Body Wiring Harness – Partial View TM 9-2320-280-24P · Fig. 85

Every part in figure 85 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 32 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

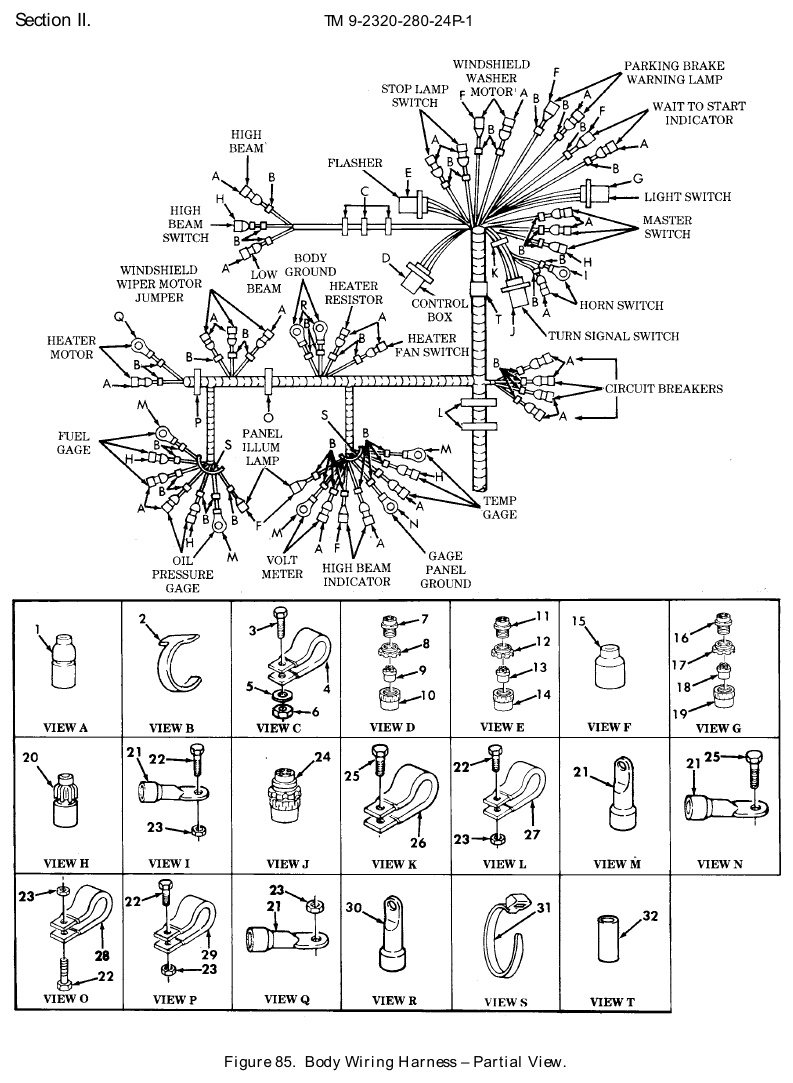

TM 9-2320-280-24P figure 85, Body Wiring Harness – Partial View: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	25	35 in stock
2	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All A0 and A1 models, plus M1121	45	We can source it
3	Machine Screw NSN 5305-00-240-6668 · P/N MS51849-78 SCREW,MACHINE #10-24 X 1.00 Fits: All A0 and A1 models, plus M1121	3	We can source it
4	Loop Clamp NSN 5340-00-689-9514 · P/N MS21333-70 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	3	5 in stock
5	Flat Washer NSN 5310-01-253-8951 · P/N 5593294 WASHER,FLAT #10 Fits: All A0 and A1 models, plus M1121	3	We can source it
6	Plain Hexagon Nut NSN 5310-00-934-9764 · P/N MS35649-205 NUT,PLAIN,HEXAGON #10-24 Fits: All A0 and A1 models, plus M1121	3	24 in stock
7	Plug Electrical Connector NSN 5935-00-614-3959 · P/N 10-42622-235 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	We can source it $70–$120 eachtypical
8	Sleeve Nut NSN 5310-00-655-9860 · P/N 8701325 NUT,SLEEVE Fits: All A0 and A1 models, plus M1121	1	29 in stock $40–$75 eachtypical
9	Nonmetallic Bushing NSN 5365-00-772-2322 · P/N 7722322 BUSHING,NONMETALLIC Fits: All A0 and A1 models, plus M1121	1	69 in stock
10	Bushing Retainer Electrical Nut NSN 5935-00-333-9414 · P/N 7723308 NUT,BUSHING RETAINE 1.25 X 18 Fits: All A0 and A1 models, plus M1121	1	3 in stock
11	Plug Electrical Connector NSN 5935-00-605-9322 · P/N 1755683 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	1 in stock $124.68 per eachgov't list price
12	Coupling Electrical Conduit Nut NSN 5975-00-697-7769 · P/N 7527645 NUT,COUPLING,ELECTR 1.00-20 Fits: All A0 and A1 models, plus M1121	1	We can source it
13	Electrical Connector Insert NSN 5935-00-772-2344 · P/N 10-40817-010 INSERT,ELECTRICAL C Fits: All A0 and A1 models, plus M1121	1	We can source it
14	Bushing Retainer Electrical Nut NSN 5935-00-772-3307 · P/N 7723307 NUT,BUSHING RETAINE 7/8-20 Fits: All A0 and A1 models, plus M1121	1	120 in stock
15	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	6	19 in stock
16	Plug Electrical Connector NSN 5935-00-686-2599 · P/N 8724258 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	We can source it $45–$90 eachtypical
17	Coupling Electrical Conduit Nut NSN 5975-00-771-6634 · P/N 7716634 NUT,COUPLING,ELECTR 1.75 X 18 Fits: All A0 and A1 models, plus M1121	1	28 in stock
18	Nonmetallic Bushing NSN 5365-00-090-5426 · P/N 7722333 BUSHING,NONMETALLIC Fits: All A0 and A1 models, plus M1121	1	10 in stock
19	Plain Knurled Nut NSN 5310-00-393-6685 · P/N 7723309 NUT,PLAIN,KNURLED 1.625 X 18 Fits: All A0 and A1 models, plus M1121	1	16 in stock
20	Plug Electrical Connector NSN 5935-00-184-6707 · P/N MS27144-3 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	5	We can source it
21	Lug Terminal NSN 5940-00-705-6708 · P/N TG8 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	7	We can source it
22	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 1/2 Fits: All A0 and A1 models, plus M1121	8	19 in stock
23	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All A0 and A1 models, plus M1121	9	474 in stock
24	Plug Electrical Connector NSN 5935-01-184-6417 · P/N 11668591 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	4 in stock $50–$100 eachtypical
25	Screw NSN 5305-01-204-6502 · P/N 5588064 SCREW #10-32 X 1/2 Fits: All A0 and A1 models, plus M1121	2	10 in stock
26	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	19 in stock
27	Loop Clamp NSN 5340-01-209-7799 · P/N 5583717 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	465 in stock
28	Loop Clamp NSN 5340-00-764-7051 · P/N MS21333-69 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	We can source it
29	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	5 in stock
30	Lug Terminal NSN 5940-00-705-6709 · P/N TG9 TERMINAL,LUG Fits: All A0 and A1 models, plus M1121	2	We can source it
31	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: All A0 and A1 models, plus M1121	2	269 in stock
32	Insulation Sleeving Make From P/N M23053/4-303-0-1 INSULATION SLEEVING MAKE FROM INSULATION,P/N M23053/4-303-0,1 INCH LONG Fits: All A0 and A1 models, plus M1121	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
