HMMWV Body Wiring Harness – Partial View TM 9-2320-280-24P · Fig. 84

Every part in figure 84 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 33 lines, 25 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

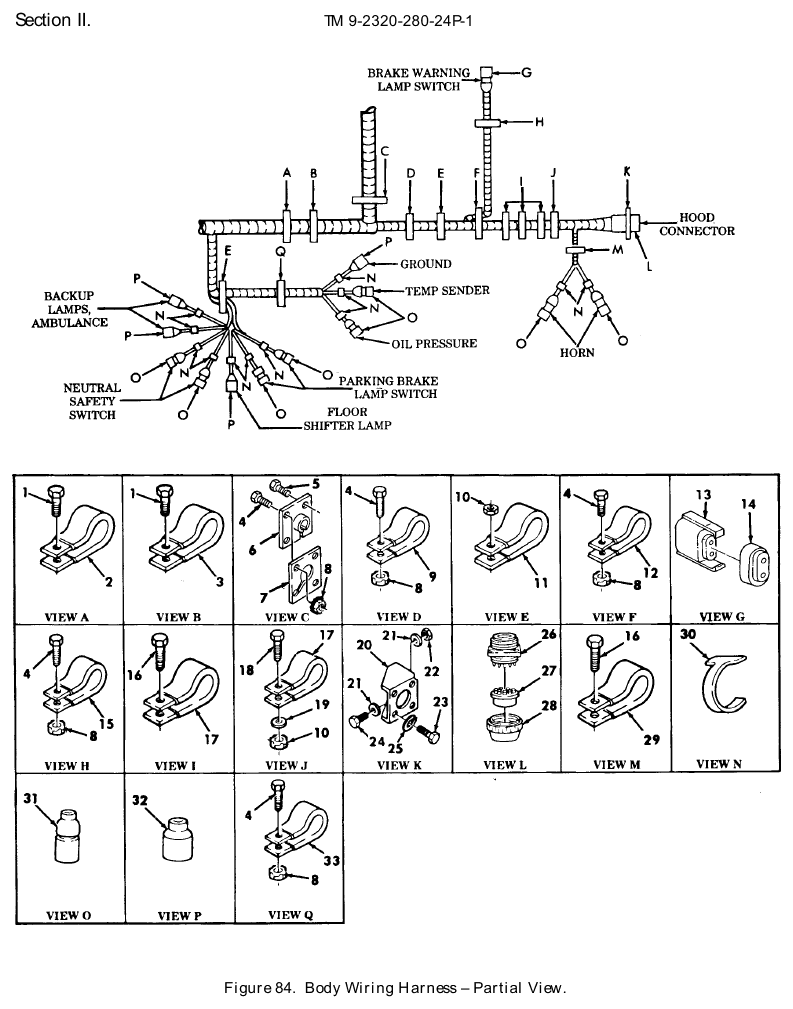

TM 9-2320-280-24P figure 84, Body Wiring Harness – Partial View: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Screw NSN 5305-01-204-6502 · P/N 5588064 SCREW #10-32 X 1/2 Fits: All A0 and A1 models, plus M1121	2	10 in stock
2	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	12 in stock
3	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	We can source it
4	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 1/2 Fits: All A0 and A1 models, plus M1121	7	19 in stock
5	Assembled Washer Bolt NSN 5306-00-042-5570 · P/N 425570 BOLT,ASSEMBLED WASH #10-32 X 3/4 Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Nonmetallic Grommet NSN 5325-01-210-1633 · P/N 5584391 GROMMET,NONMETALLIC Fits: All A0 and A1 models, plus M1121	1	1 in stock
7	Retaining Electrical Conne Plate NSN 5935-01-212-9631 · P/N 12339338 PLATE,RETAINING,ELE Fits: All A0 and A1 models, plus M1121	1	We can source it
8	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All A0 and A1 models, plus M1121	8	474 in stock
9	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	We can source it
10	Self-Locking Nut NSN 5310-01-252-2999 · P/N 5593033 NUT,SELF-LOCKING,AS 1/4-20 Fits: All A0 and A1 models, plus M1121	3	1,286 in stock
11	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	2	23 in stock
12	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	787 in stock
13	Plug Electrical Connector NSN 5935-01-238-0543 · P/N 12340362 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$60 eachtypical
14	Connector P/N 12339345-1 CONNECTOR,RECEPTACL Fits: All A0 and A1 models, plus M1121	1	Ask us
15	Loop Clamp NSN 5340-00-282-7509 · P/N MS21333-62 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	40 in stock
16	Tapping Screw NSN 5305-01-206-8401 · P/N 5592954 SCREW,TAPPING 1/4-28 X 1/2 Fits: All A0 and A1 models, plus M1121	3	6,550 in stock
17	Loop Clamp NSN 5340-00-088-1254 · P/N MS21333-104 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	4	40 in stock
18	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: All A0 and A1 models, plus M1121	1	We can source it
19	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT Fits: All A0 and A1 models, plus M1121	1	2,325 in stock
20	Double Angle Bracket NSN 5340-01-251-0754 · P/N 12338633 BRACKET,DOUBLE ANGL Fits: All A0 and A1 models, plus M1121	1	31 in stock $44.09our price Buy online ↗
21	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All A0 and A1 models, plus M1121	4	2,325 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A0 and A1 models, plus M1121	2	626 in stock
23	Machine Screw NSN 5305-00-984-6193 · P/N MS35206-245 SCREW,MACHINE #6-32 X 1/2 Fits: All A0 and A1 models, plus M1121	4	12 in stock
24	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All A0 and A1 models, plus M1121	2	471 in stock
25	Lock Washer NSN 5310-00-045-4007 · P/N MS35338-41 WASHER,LOCK Fits: All A0 and A1 models, plus M1121	4	29 in stock
26	Receptacle Electrical Connector NSN 5935-00-772-2353 · P/N 7722353 CONNECTOR,RECEPTACL Fits: All A0 and A1 models, plus M1121	1	30 in stock $30–$70 eachtypical
27	Nonmetallic Bushing NSN 5365-00-772-2322 · P/N 7722322 BUSHING,NONMETALLIC Fits: All A0 and A1 models, plus M1121	1	69 in stock
28	Bushing Retainer Electrical Nut NSN 5935-00-333-9414 · P/N 7723308 NUT,BUSHING RETAINE 1.25 X 18 Fits: All A0 and A1 models, plus M1121	1	3 in stock
29	Loop Clamp NSN 5340-00-809-1492 · P/N CMDX2-3PT573036 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	109 in stock
30	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: All A0 and A1 models, plus M1121	12	We can source it
31	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	8	35 in stock
32	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	4	19 in stock
33	Loop Clamp NSN 5340-00-689-9514 · P/N MS21333-70 CLAMP,LOOP Fits: All A0 and A1 models, plus M1121	1	5 in stock

Buy the 1 in-stock part on our store ↗
