HMMWV A2 Body Wiring Harness Installation TM 9-2320-280-24P · Fig. 88

Every part in figure 88 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 51 lines, 31 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

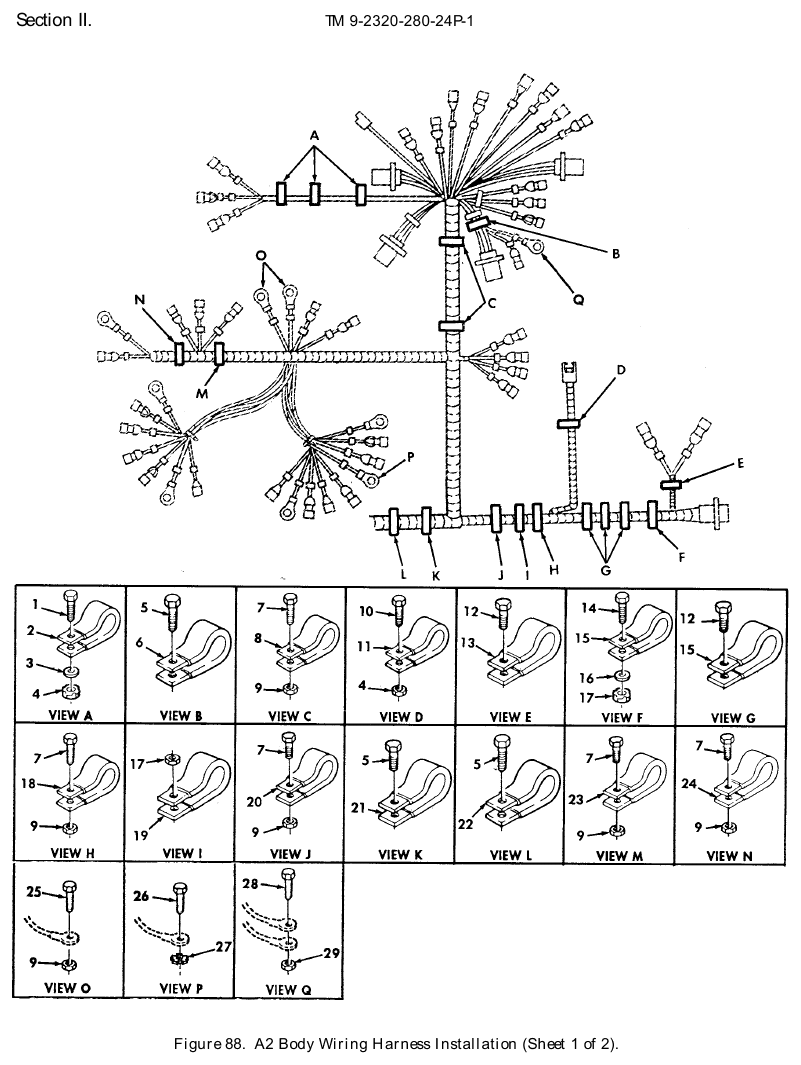

TM 9-2320-280-24P figure 88, A2 Body Wiring Harness Installation, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-240-6668 · P/N MS51849-78 SCREW,MACHINE #10-24 X 1.00 Fits: All A2 models, plus M1123	3	We can source it
2	Loop Clamp NSN 5340-00-689-9514 · P/N MS21333-70 CLAMP,LOOP Fits: All A2 models, plus M1123	4	5 in stock
3	Flat Washer NSN 5310-01-253-8951 · P/N 5593294 WASHER,FLAT #10 Fits: All A2 models, plus M1123	3	We can source it
4	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N 190254 NUT,SELF-LOCKING,HE #10-24 Fits: All A2 models, plus M1123	4	118 in stock
5	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 1/2 Fits: All A2 models, plus M1123	28	1,205 in stock
6	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP Fits: All A2 models, plus M1123	8	19 in stock
7	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X 1/2 Fits: All A2 models, plus M1123	12	19 in stock
8	Loop Clamp NSN 5340-01-209-7799 · P/N 5583717 CLAMP,LOOP Fits: All A2 models, plus M1123	2	465 in stock
9	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED Fits: All A2 models, plus M1123	14	474 in stock
10	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: All A2 models, plus M1123	1	287 in stock
11	Loop Clamp NSN 2520-00-984-8540 · P/N MS21333-102 CLAMP,LOOP Fits: All A2 models, plus M1123	1	426 in stock
12	Tapping Screw NSN 5305-01-206-8401 · P/N 448655 SCREW,TAPPING Fits: All A2 models, plus M1123	4	6,550 in stock
13	Loop Clamp NSN 5340-00-809-1492 · P/N CMDX2-3PT573036 CLAMP,LOOP Fits: All A2 models, plus M1123	1	109 in stock
14	Machine Screw NSN 5305-00-489-0743 · P/N 9415477 SCREW,MACHINE 1/4-20 X 3/4 Fits: All A2 models, plus M1123	5	We can source it
15	Loop Clamp NSN 5340-00-088-1254 · P/N MS21333-104 CLAMP,LOOP Fits: All A2 models, plus M1123	4	40 in stock
16	Flat Washer NSN 5310-01-234-9415 · P/N MS51412-5 WASHER,FLAT 9/32 Fits: All A2 models, plus M1123	1	We can source it
17	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: All A2 models, plus M1123	15	570 in stock
18	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP Fits: All A2 models, plus M1123	9	787 in stock
19	Loop Clamp NSN 5340-00-809-1494 · P/N MS21333-105 CLAMP,LOOP Fits: All A2 models, plus M1123	3	23 in stock
20	Loop Clamp NSN 5340-00-989-9222 · P/N MS21333-74 CLAMP,LOOP Fits: All A2 models, plus M1123	9	We can source it
21	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP Fits: All A2 models, plus M1123	3	We can source it
22	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: All A2 models, plus M1123	3	12 in stock
23	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: All A2 models, plus M1123	3	5 in stock
24	Loop Clamp NSN 5340-00-764-7051 · P/N MS21333-69 CLAMP,LOOP Fits: All A2 models, plus M1123	2	We can source it
25	Cap Screw P/N 456931 SCREW,CAP,HEXAGON H #10-32 X 1.125 Fits: All A2 models, plus M1123	1	Ask us
26	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE Fits: All A2 models, plus M1123	1	1,205 in stock
27	Lock Washer NSN 5310-00-080-9786 · P/N MS45904-60 WASHER,LOCK Fits: All A2 models, plus M1123	1	8 in stock
28	Machine Screw NSN 5305-00-489-0743 · P/N 9415477 SCREW,MACHINE Fits: All A2 models, plus M1123	1	We can source it
29	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: All A2 models, plus M1123	1	570 in stock
30	Loop Clamp NSN 5340-00-843-7825 · P/N MS21333-68 CLAMP,LOOP Fits: All A2 models, plus M1123	3	We can source it
31	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE Fits: All A2 models, plus M1123	1	We can source it
32	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 LOOP Fits: All A2 models, plus M1123	4	35 in stock
33	Mounting Plate NSN 5340-01-443-6908 · P/N 12340666 PLATE,MOUNTING Fits: All A2 models, plus M1123	1	We can source it
34	Retaining Strap NSN 5340-01-213-4665 · P/N 12340665 STRAP,RETAINING Fits: All A2 models, plus M1123	1	6 in stock
35	Tapping Screw NSN 5305-01-206-7219 · P/N G9426241 SCREW,TAPPING Fits: All A2 models, plus M1123	1	We can source it
36	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE Fits: All A2 models, plus M1123	2	We can source it
37	Loop Clamp NSN 5340-00-809-1490 · P/N MS21333-98 CLAMP,LOOP Fits: All A2 models, plus M1123	1	514 in stock
38	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: All A2 models, plus M1123	2	1,162 in stock
39	Plain Hexagon Nut NSN 5310-00-997-1888 · P/N MS35649-2252 NUT,PLAIN,HEXAGON Fits: All A2 models, plus M1123	2	300 in stock
40	Loop Clamp NSN 5340-00-088-6655 · P/N MS21333-101 CLAMP,LOOP Fits: All A2 models, plus M1123	1	169 in stock
41	Machine Screw NSN 5305-00-984-6212 · P/N MS35206-265 SCREW,MACHINE Fits: All A2 models, plus M1123	1	177 in stock
42	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK Fits: All A2 models, plus M1123	1	We can source it
43	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON Fits: All A2 models, plus M1123	1	952 in stock
44	Cap Hexagon Head Screw NSN 5305-00-018-7838 · P/N 187838 SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	2	We can source it
45	Electrical Connector Cover NSN 5935-00-773-1428 · P/N 7731428 COVER,ELECTRICAL CO Fits: All A2 models, plus M1123	1	586 in stock $40.00our price Buy online ↗
46	Machine Screw NSN 5305-00-390-0524 · P/N MS51849-98 SCREW,MACHINE Fits: All A2 models, plus M1123	6	We can source it
46	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H USE WITH AIR BUMPER REINFORCEMENT MWO9-2320-280- 20-6 Fits: All A2 models, plus M1123	4	558 in stock
47	Retaining Electrical Conne Plate NSN 5935-01-421-4801 · P/N 12339332 PLATE,RETAINING,ELE Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
48	Structural Channel NSN 9540-01-472-5874 · P/N 12446933 CHANNEL,STRUCTURAL Fits: All A2 models, plus M1123	2	We can source it $35–$70 eachtypical
49	Lock Washer NSN 5310-00-543-5101 · P/N MS35338-27 WASHER,LOCK Fits: All A2 models, plus M1123	4	We can source it
50	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	4	248 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
