HMMWV Air-Conditioner Jumper Cable, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 89

Every part in figure 89 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 16 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

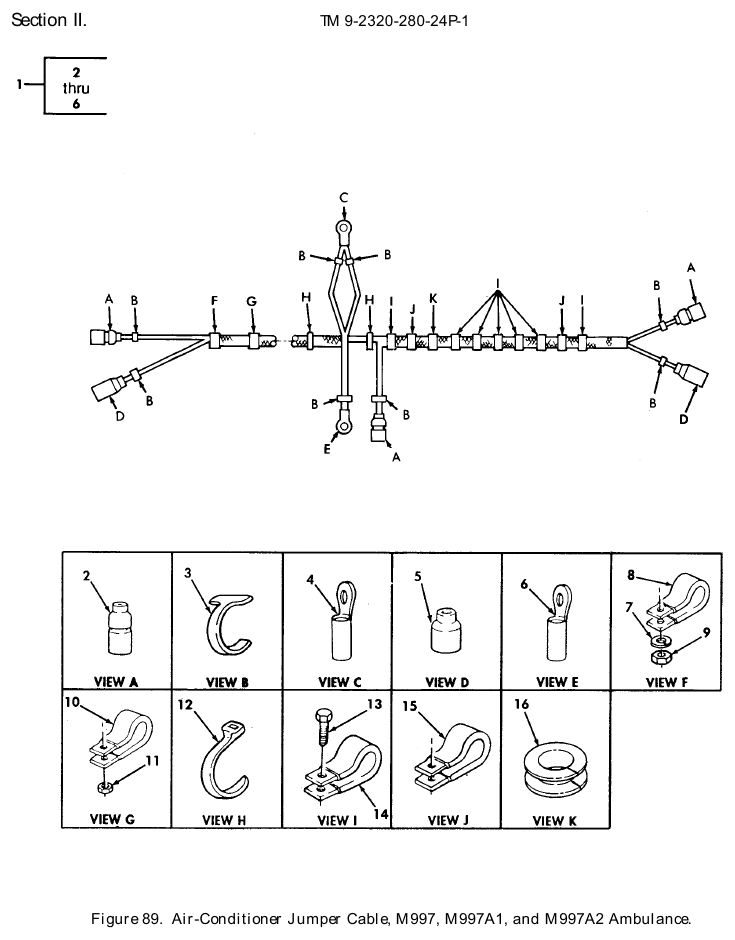

TM 9-2320-280-24P figure 89, Air-Conditioner Jumper Cable, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Wiring Harness NSN 6150-01-269-0067 · P/N 12341000 WIRING HARNESS Fits: M997, M997A1, M997A2	1	We can source it quote only $146.03 per eachgov't list price
2	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M997, M997A1, M997A2	3	35 in stock
3	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M997, M997A1, M997A2	8	We can source it
4	Lug Terminal NSN 5940-01-269-1816 · P/N 100951-D02 TERMINAL,LUG Fits: M997, M997A1, M997A2	1	We can source it $166.26 per eachgov't list price
5	Plug Electrical Connector NSN 5935-00-462-6603 · P/N MS27142-2 CONNECTOR,PLUG,ELEC Fits: M997, M997A1, M997A2	2	19 in stock
6	Lug Terminal NSN 5940-00-705-6709 · P/N TG9 TERMINAL,LUG Fits: M997, M997A1, M997A2	1	We can source it
7	Lock Washer NSN 5310-00-637-9541 · P/N H2525M WASHER,LOCK 3/8 Fits: M997, M997A1, M997A2	1	1,162 in stock
8	Loop Clamp NSN 5340-00-954-6014 · P/N MS21333-121 CLAMP,LOOP Fits: M997, M997A1, M997A2	1	215 in stock
9	Plain Hexagon Nut NSN 5310-00-732-0558 · P/N MS51967-8 NUT,PLAIN,HEXAGON 3/8-16 Fits: M997, M997A1, M997A2	1	398 in stock
10	Loop Clamp NSN 2520-00-984-8540 · P/N MS21333-102 CLAMP,LOOP Fits: M997, M997A1, M997A2	1	426 in stock
11	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: M997, M997A1, M997A2	1	570 in stock
12	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: M997, M997A1, M997A2	2	269 in stock
13	Machine Screw NSN 5305-00-179-8946 · P/N 9418346 SCREW,MACHINE Fits: M997, M997A1, M997A2	7	We can source it
14	Loop Clamp NSN 5340-00-843-7825 · P/N MS21333-68 CLAMP,LOOP Fits: M997, M997A1, M997A2	7	We can source it
15	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP Fits: M997, M997A1, M997A2	2	We can source it
16	Nonmetallic Grommet NSN 5325-00-184-9846 · P/N C3030 GROMMET,NONMETALLIC Fits: M997, M997A1, M997A2	1	4 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
