HMMWV Transmission and Transfer Control Assembly and Shift Rod TM 9-2320-280-24P · Fig. 97

Every part in figure 97 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 07 Transmission: 14 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

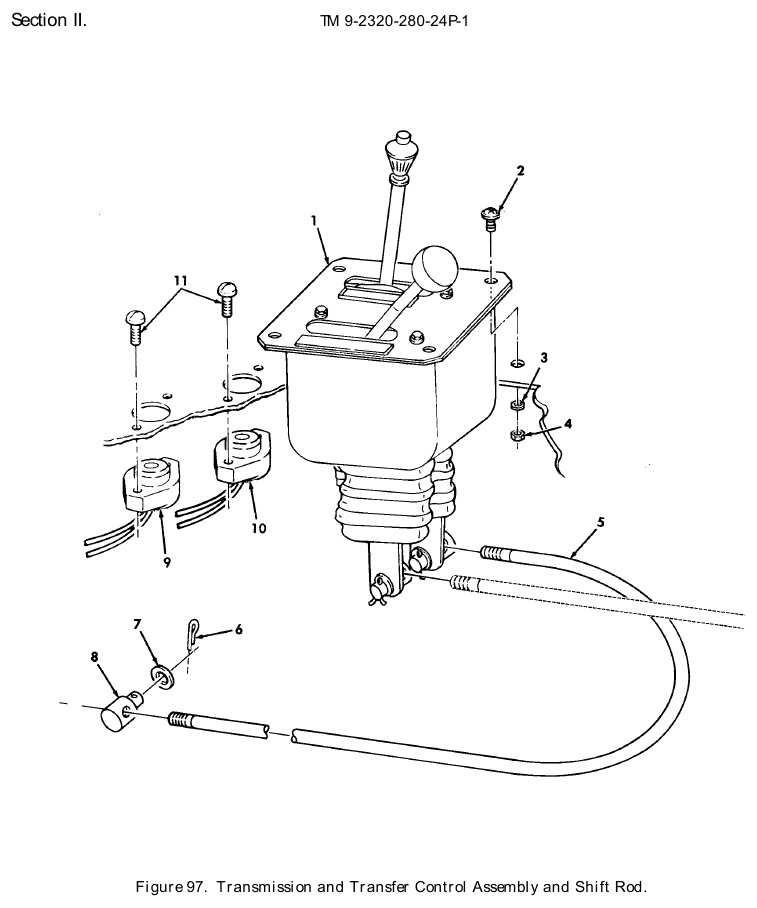

TM 9-2320-280-24P figure 97, Transmission and Transfer Control Assembly and Shift Rod: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Gate Lever Shif Control Assembly NSN 2520-01-204-7699 · P/N 12338440-2 CONTROL ASSEMBLY,TR Fits: M996, M996A1, M997, M997A1, M1035, M1035A1	1	15 in stock $1,075.47 per assemblygov't list price
1	Gate Lever Shif Control Assembly NSN 2520-01-184-5501 · P/N 12338440-1 CONTROL ASSEMBLY,GA Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	22 in stock $515.00our price Buy online ↗
2	Machine Screw NSN 5305-00-988-1724 · P/N MS35206-280 SCREW,MACHINE 1/4-20 X 7/8 Fits: All A0 and A1 models, plus M1121	4	74 in stock
3	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	4	351 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	4	626 in stock
5	Hook Bolt NSN 5306-01-194-6433 · P/N 5583606 BOLT,HOOK Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Cotter Pin NSN 5315-00-842-3044 · P/N X601 PIN,COTTER 3/32 X 3/4 Fits: All A0 and A1 models, plus M1121	1	3,000 in stock
7	Flat Washer NSN 5310-01-205-7923 · P/N 5593213 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	1	We can source it
8	Shift Control Trunnion NSN 2520-01-249-1434 · P/N 5593661 TRUNNION,SHIFT CONT Fits: All A0 and A1 models, plus M1121	1	1,050 in stock
9	Indicator Light NSN 6220-01-362-5211 · P/N 12342788 LIGHT,INDICATOR TRANSFER Fits: All A1 models, plus M1097	1	577 in stock $55–$95 eachtypical
9	Indicator Light NSN 6220-01-413-9828 · P/N 12460092-1 LIGHT,INDICATOR..TRANSFER Fits: All A2 models, plus M1123	1	3 in stock $50–$95 eachtypical
10	Indicator Light NSN 6220-01-412-6420 · P/N 12460092-2 LIGHT,INDICATOR TRANSMISSION Fits: All A2 models, plus M1123	1	12 in stock $90.00our price Buy online ↗
11	Tapping Screw NSN 5305-01-138-9540 · P/N MS51863-33 SCREW,TAPPING Fits: All A1 models, plus M1097	2	We can source it
11	Tapping Screw NSN 5305-01-138-9540 · P/N MS51863-33 SCREW,TAPPING Fits: All A2 models, plus M1123	4	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
