HMMWV NBC Wiring Harness, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 96

Every part in figure 96 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0613 Hull or Chassis Wiring Harness: 32 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

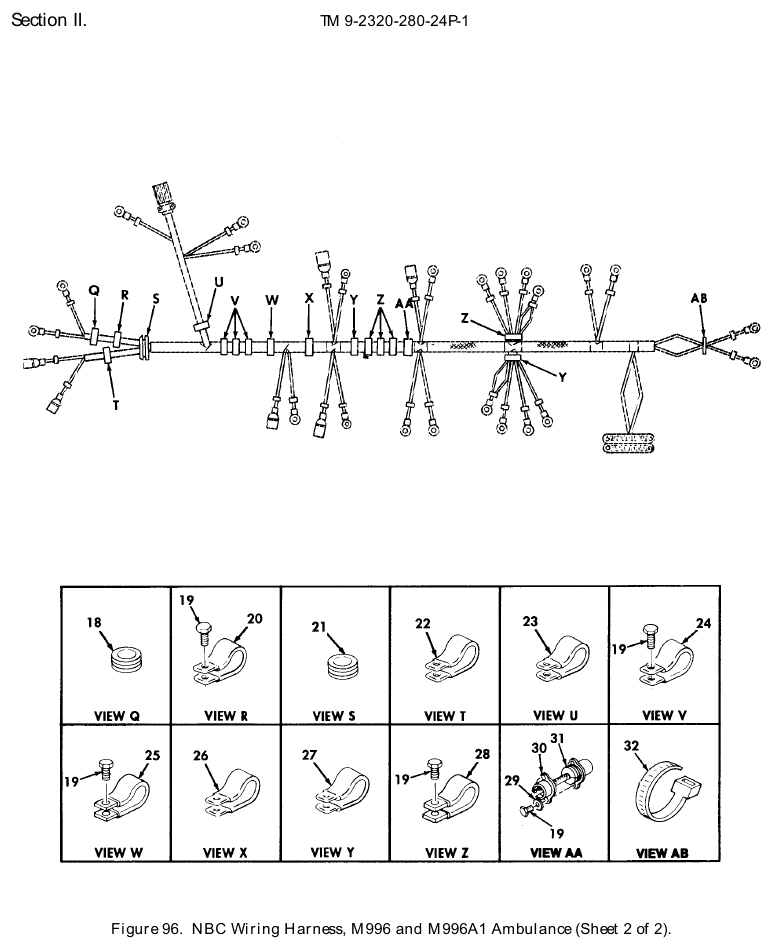

TM 9-2320-280-24P figure 96, NBC Wiring Harness, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Wiring Harness NSN 6150-01-285-3901 · P/N 5597600 WIRING HARNESS Fits: M996, M996A1	1	We can source it $1,925.59 per eachgov't list price
2	Plug Electrical Connector NSN 5935-01-147-0148 · P/N MS3456W12-5S CONNECTOR,PLUG,ELEC Fits: M996, M996A1	1	We can source it $40–$80 eachtypical
3	Marker Band NSN 9905-01-013-8723 · P/N M43436/3-1 BAND,MARKER Fits: M996, M996A1	29	We can source it
4	Lug Terminal NSN 5940-01-270-3702 · P/N 2984172 TERMINAL,LUG Fits: M996, M996A1	5	We can source it
5	Plug Electrical Connector NSN 5935-00-167-7775 · P/N MS27144-1 CONNECTOR,PLUG,ELEC Fits: M996, M996A1	6	35 in stock
6	Lug Terminal NSN 5940-00-107-1481 · P/N MS20659-104 TERMINAL,LUG Fits: M996, M996A1	1	We can source it
7	Lug Terminal NSN 5940-00-113-9819 · P/N MS20659-106 TERMINAL,LUG Fits: M996, M996A1	2	We can source it
8	Insulation Sleeving Make From P/N M23053/4-303-2-3 INSULATION SLEEVING MAKE FROM INSULATION,P/N M23053/4-303-2,3 INCHES LONG Fits: M996, M996A1	6	Ask us
9	Lug Terminal NSN 5940-00-113-3145 · P/N MS20659-163 TERMINAL,LUG Fits: M996, M996A1	2	We can source it
10	Lug Terminal NSN 5940-00-114-1300 · P/N MS20659-105 TERMINAL,LUG Fits: M996, M996A1	2	400 in stock
11	Lug Terminal NSN 5940-01-270-3700 · P/N 2973850 TERMINAL,LUG Fits: M996, M996A1	2	29,678 in stock
12	Lug Terminal NSN 5940-00-113-3143 · P/N MS20659-103 TERMINAL,LUG Fits: M996, M996A1	5	We can source it
13	Lug Terminal NSN 5940-00-115-2674 · P/N MS20659-108 TERMINAL,LUG Fits: M996, M996A1	1	We can source it
14	Lug Terminal NSN 5940-01-289-5955 · P/N 2984576 TERMINAL,LUG Fits: M996, M996A1	1	We can source it
15	Lug Terminal NSN 5940-00-113-9825 · P/N MS20659-141 TERMINAL,LUG Fits: M996, M996A1	1	100 in stock
16	Lug Terminal NSN 5940-00-114-1314 · P/N MS20659-129 TERMINAL,LUG Fits: M996, M996A1	1	We can source it
17	Insulation Sleeving Make From P/N M23053/4-303-0-3 INSULATION SLEEVING MAKE FROM INSULATION,P/N M23053/4-303-0,3 INCHES LONG Fits: M996, M996A1	17	Ask us
18	Nonmetallic Grommet NSN 5325-00-185-0004 · P/N MS35489-40 GROMMET,NONMETALLIC Fits: M996, M996A1	1	520 in stock
19	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X .75 Fits: M996, M996A1	16	55 in stock
20	Loop Clamp NSN 5340-00-843-7825 · P/N MS21333-68 CLAMP,LOOP Fits: M996, M996A1	1	We can source it
21	Nonmetallic Grommet NSN 5325-00-276-6051 · P/N BACG20AF8H1 GROMMET,NONMETALLIC Fits: M996, M996A1	1	12 in stock
22	Loop Clamp NSN 5340-00-809-1492 · P/N CMDX2-3PT573036 CLAMP,LOOP Fits: M996, M996A1	1	109 in stock
23	Loop Clamp NSN 5340-00-854-6729 · P/N MS21333-103 CLAMP,LOOP Fits: M996, M996A1	1	We can source it
24	Loop Clamp NSN 5340-00-057-2904 · P/N MS21333-71 CLAMP,LOOP Fits: M996, M996A1	3	5 in stock
25	Loop Clamp NSN 5340-00-091-3790 · P/N MS21333-72 CLAMP,LOOP Fits: M996, M996A1	1	19 in stock
26	Loop Clamp NSN 2520-00-984-8540 · P/N MS21333-102 CLAMP,LOOP Fits: M996, M996A1	1	426 in stock
27	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP Fits: M996, M996A1	2	787 in stock
28	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP Fits: M996, M996A1	4	12 in stock
29	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M996, M996A1	2	909 in stock
30	Assembly Retainer NSN 2590-00-454-3620 · P/N 809223 RETAINER,ASSEMBLY Fits: M996, M996A1	1	168 in stock
31	Nonmetallic Bushing NSN 5365-01-272-9275 · P/N 12341231-4 BUSHING,NONMETALLIC Fits: M996, M996A1	1	We can source it $35–$65 eachtypical
32	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: M996, M996A1	1	269 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
