HMMWV Transmission Shift Control and Neutral Start Switch TM 9-2320-280-24P · Fig. 99

Every part in figure 99 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0705 Transmission Shifting Components: 29 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

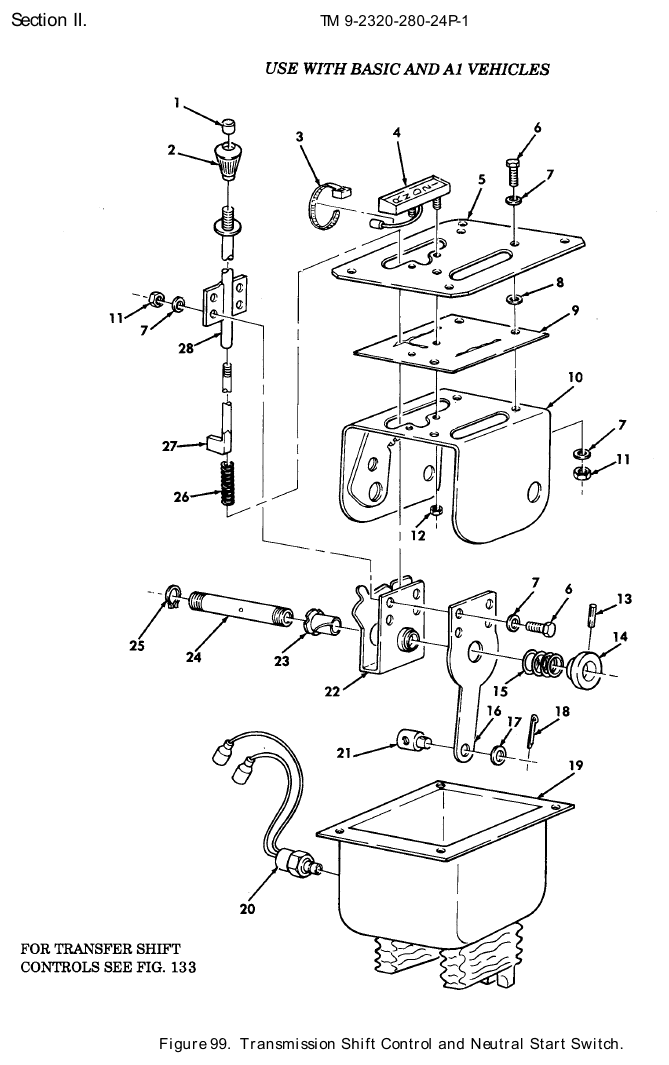

TM 9-2320-280-24P figure 99, Transmission Shift Control and Neutral Start Switch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Shift Knob Button NSN 2590-01-186-3614 · P/N 12338996 BUTTON,SHIFT KNOB Fits: All A0 and A1 models, plus M1121	1	12 in stock $25–$45 eachtypical
2	Knob NSN 5355-01-190-7635 · P/N 5578673 KNOB Fits: All A0 and A1 models, plus M1121	1	1 in stock $25–$55 eachtypical
3	Tie Down Electrical Compon Strap NSN 5975-00-903-2284 · P/N MS3367-4-0 STRAP,TIEDOWN,ELECT Fits: All A0 and A1 models, plus M1121	1	We can source it
4	Shift Indicator NSN 2540-01-184-5502 · P/N 12338439 INDICATOR,SHIFT Fits: All A0 and A1 models, plus M1121	1	151 in stock $85–$140 eachtypical
5	Access Cover NSN 5340-01-188-5072 · P/N 12338457 COVER,ACCESS Fits: All A0 and A1 models, plus M1121	1	124 in stock $40–$85 eachtypical
6	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: All A0 and A1 models, plus M1121	7	We can source it
7	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All A0 and A1 models, plus M1121	14	351 in stock
8	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT .319 I.D. X .500 O.D Fits: All A0 and A1 models, plus M1121	3	We can source it
9	Retaining Shaft Plate NSN 3040-01-249-1435 · P/N 12338456 PLATE,RETAINING,SHA Fits: All A0 and A1 models, plus M1121	1	8 in stock
10	Housing Assembly P/N SF-5583585 HOUSING ASSEMBLY Fits: All A0 and A1 models, plus M1121	1	Ask us
11	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A0 and A1 models, plus M1121	7	626 in stock
12	Nut NSN 5310-01-250-6587 · P/N 5592998 NUT #8-32 Fits: All A0 and A1 models, plus M1121	2	We can source it
13	Spring Pin NSN 5315-00-559-7467 · P/N NAS561C4-18 PIN,SPRING 1/8 X 1.12 Fits: All A0 and A1 models, plus M1121	1	We can source it
14	Shaft Collar NSN 3040-01-198-5699 · P/N 12338452 COLLAR,SHAFT Fits: All A0 and A1 models, plus M1121	1	9 in stock
15	Helical Compression Spring NSN 5360-01-190-6218 · P/N M-C1100-096-0875 SPRING,HELICAL,COMP Fits: All A0 and A1 models, plus M1121	1	19 in stock
16	Remote Control Lever NSN 3040-01-189-1064 · P/N 12338443 LEVER,REMOTE CONTRO Fits: All A0 and A1 models, plus M1121	1	We can source it $218.75 per eachgov't list price
17	Flat Washer NSN 5310-01-250-7836 · P/N 5593285 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	1	We can source it
18	Cotter Pin NSN 5315-00-842-3044 · P/N X601 PIN,COTTER 3/32 X 3/4 Fits: All A0 and A1 models, plus M1121	1	3,000 in stock
19	Power Transmission Componen Boot NSN 2520-01-188-8269 · P/N 12338458-1 BOOT,POWER TRANSMIS Fits: All A0 models except M996, M997, M1035; all A1 models except M996A1, M997A1, M1035A1, plus M1121	1	258 in stock $35–$70 eachtypical
19	Power Transmission Componen Boot NSN 2520-01-210-3506 · P/N 5584110 BOOT,POWER TRANSMIS Fits: M996, M996A1, M997, M997A1, M1035, M1035A1 and 1 more	1	11 in stock $40–$75 eachtypical
20	Safety Neutral Start Switch NSN 2920-01-249-3492 · P/N 12338434 SWITCH,SAFETY,NEUTR Fits: All A0 and A1 models, plus M1121	1	23 in stock $65.00our price Buy online ↗
21	Body Hub NSN 3040-01-185-4388 · P/N 12338442-1 HUB,BODY Fits: All A0 and A1 models, plus M1121	1	10 in stock
22	Trans Bracket and Shaft Assembly NSN 2520-01-184-7036 · P/N 12338454 BRACKET AND SHAFT A Fits: All A0 and A1 models, plus M1121	1	We can source it $85–$145 eachtypical
23	Sleeve Bearing NSN 3120-01-191-3232 · P/N 10L18F BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	1	We can source it
24	Straight Shaft NSN 3040-01-189-2134 · P/N 12338451 SHAFT,STRAIGHT Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$60 eachtypical
25	Retaining Ring NSN 5325-00-803-7305 · P/N MS16624-1062 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	198 in stock
26	Helical Compression Spring NSN 5360-01-186-4844 · P/N 5578675 SPRING,HELICAL,COMP Fits: All A0 and A1 models, plus M1121	1	30 in stock $25–$55 eachtypical
27	Shift Lever Latch Rod NSN 5342-01-188-3233 · P/N 12338441 ROD,SHIFT LEVER LAT Fits: All A0 and A1 models, plus M1121	1	We can source it $40–$80 eachtypical
28	Straight Shaft NSN 3040-01-188-3234 · P/N 12338449 SHAFT,STRAIGHT Fits: All A0 and A1 models, plus M1121	1	1 in stock $115.26 per eachgov't list price

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
