HMMWV Transmission Shift Controls and Modulator TM 9-2320-280-24P · Fig. 100

Every part in figure 100 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0705 Transmission Shifting Components: 17 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

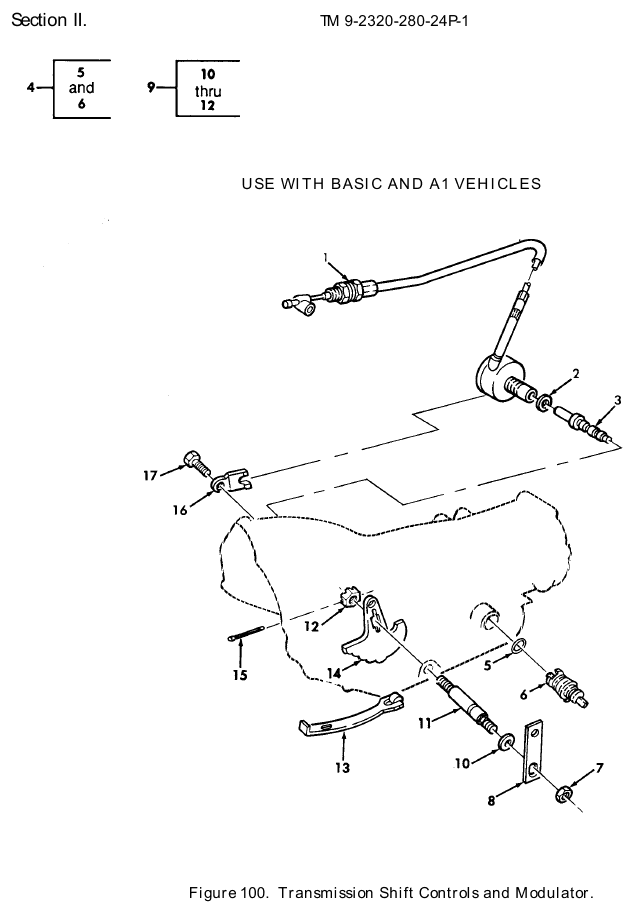

TM 9-2320-280-24P figure 100, Transmission Shift Controls and Modulator: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Transmission Modulator NSN 2520-01-244-9863 · P/N 000-02136-0024 MODULATOR,TRANSMISS Fits: All A0 and A1 models, plus M1121	1	44 in stock $129.18 per eachgov't list price
2	Packing Retainer NSN 5330-01-043-5572 · P/N 8658110 RETAINER,PACKING PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it
3	Directional Control Linear Slide NSN 4820-01-147-4294 · P/N 8623983 SLIDE,DIRECTIONAL C Fits: All A0 and A1 models, plus M1121	1	We can source it $45–$90 eachtypical
4	Plug Electrical Connector NSN 5935-01-150-6319 · P/N 24205373 CONNECTOR,PLUG,ELEC Fits: All A0 and A1 models, plus M1121	1	We can source it
5	Packing Retainer NSN 5330-01-043-5572 · P/N 8658110 RETAINER,PACKING PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Electric Connector P/N 8626252 CONNECTOR,ELECTRIC Fits: All A0 and A1 models, plus M1121	1	Ask us
7	Plain Hexagon Nut NSN 5310-01-127-2456 · P/N 9145-105-00B NUT,PLAIN,HEXAGON 10-1.5MM Fits: All A0 and A1 models, plus M1121	1	57 in stock
8	Rigid Connecting Link NSN 3040-01-188-8292 · P/N 12339176 CONNECTING LINK,RIG Fits: All A0 and A1 models, plus M1121	1	4 in stock $25–$40 eachtypical
9	Manual Shaft Nut and S Parts Kit NSN 2520-01-164-7158 · P/N 8679990 PARTS KIT,MANUAL SH Fits: All A0 and A1 models	1	329 in stock $55–$95 per kittypical
10	Gasket NSN 5330-01-251-1607 · P/N 8657163 GASKET PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$50 eachtypical
11	Shouldered Shaft P/N 8626982 SHAFT,SHOULDERED Fits: All A0 and A1 models, plus M1121	1	Ask us
12	Plain Hexagon Nut NSN 5310-00-568-6077 · P/N 117212 NUT,PLAIN,HEXAGON 3/8-24 Fits: All A0 and A1 models, plus M1121	1	We can source it
13	Roller and Spring Assembly Deten NSN 2520-01-165-9563 · P/N 8625773 ROLLER AND SPRING A Fits: All A0 and A1 models, plus M1121	1	14 in stock
14	Detent Plate NSN 2530-01-181-3907 · P/N 5740321 DETENT PLATE Fits: All A0 and A1 models, plus M1121	1	5 in stock $40–$80 eachtypical
15	Straight Headed Pin NSN 5315-01-152-9029 · P/N 23017556 PIN,STRAIGHT,HEADED 3/32 X 1.88 Fits: All A0 and A1 models, plus M1121	1	We can source it
16	Modulator Retainer NSN 2520-00-557-6619 · P/N 8627650 RETAINER,MODULATOR Fits: All A0 and A1 models, plus M1121	1	811 in stock $14.99our price Buy online ↗
17	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE 5/16-18 X 3/4 Fits: All A0 and A1 models, plus M1121	1	761 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
