HMMWV Fuel Injection Pump and Fuel Filter Lines TM 9-2320-280-24P · Fig. 10

Every part in figure 10 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0302 Fuel Injection Pump and Fuel Filter Lines: 18 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

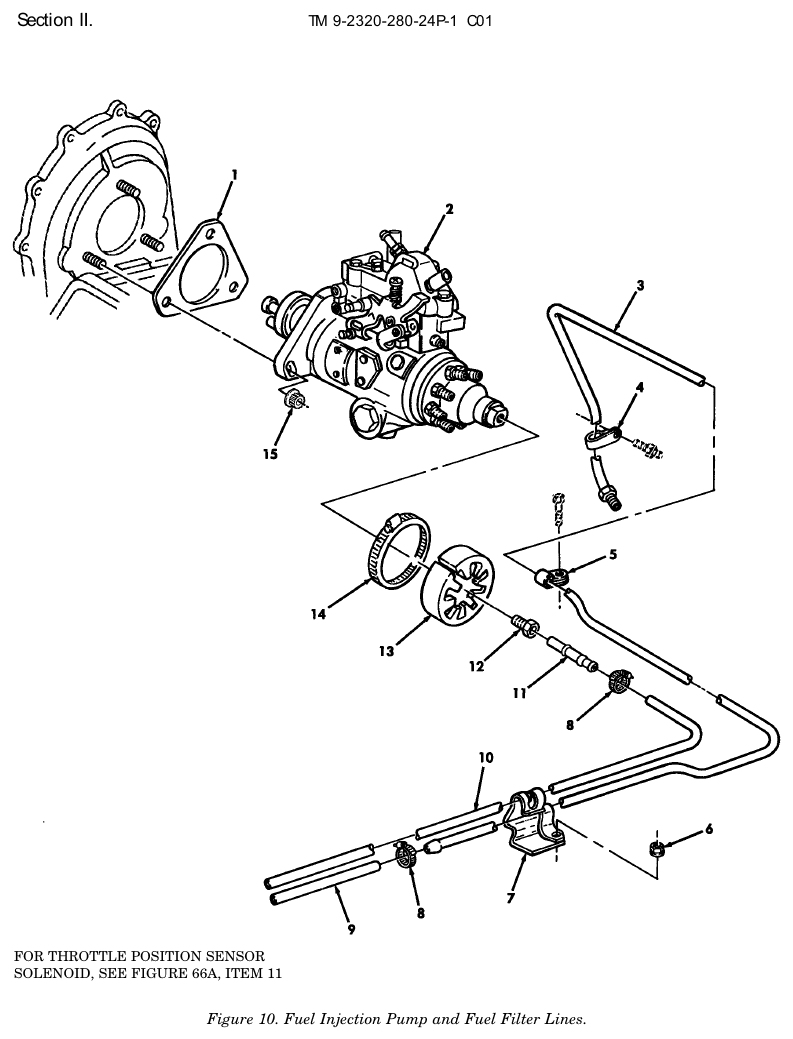

TM 9-2320-280-24P figure 10, Fuel Injection Pump and Fuel Filter Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Gasket NSN 5330-01-150-5944 · P/N 10137486 GASKET Fits: All models	1	78 in stock
2	Fuel Metering and Distribut Pump NSN 2910-01-199-2355 · P/N DB2829-4523 PUMP,FUEL,METERING 6.2 LITER,USE PRIOR TO 1990 ENGINE Fits: All A0 models except M1097, plus M1121	1	72 in stock $4,478.00 per eachgov't list price
2	Fuel Metering and Distribut Pump NSN 2910-01-326-9221 · P/N DB2829-4879 PUMP,FUEL,METERING 6.2 LITER,USE WITH 1990 ENGINE AND ABOVE Fits: All A0 and A1 models, plus M1121	1	29 in stock quote only $1,634.00 per eachgov't list price
2	Fuel Metering and Distribut Pump NSN 2910-01-467-9029 · P/N DB2831-5209 PUMP,FUEL,METERING 6.5 LITER DETUNED Fits: All A0 and A1 models, plus M1121	1	2 in stock $1,950.00our price Buy online ↗
2	Fuel Metering and Distribut Pump NSN 2910-01-414-1272 · P/N DB2831-5149 PUMP,FUEL,METERING 6.5 LITER Fits: All A2 models, plus M1123	1	4 in stock $4,038.00 per eachgov't list price
3	Metal Tube Assembly NSN 4710-01-185-6179 · P/N 5741611 TUBE ASSEMBLY,METAL Fits: All models	1	We can source it $25–$50 per assemblytypical
4	Spring Tension Clip NSN 5340-01-148-8349 · P/N 14033896 CLIP,SPRING TENSION Fits: All models	1	We can source it
5	Loop Clamp NSN 5340-01-148-7528 · P/N 22511422 CLAMP,LOOP Fits: All models	1	We can source it
6	Nut NSN 5310-01-250-7679 · P/N 23521131 NUT Fits: All models	1	8 in stock
7	Loop Clamp NSN 5340-01-167-7794 · P/N 14063340 CLAMP,LOOP Fits: All models	1	14 in stock
8	Hose Clamp NSN 4730-00-871-6729 · P/N 2551880 CLAMP,HOSE Fits: All models	2	47 in stock
9	Nonmetallic Make From Hose Hose P/N 5740702 HOSE,NONMETALLIC MAKE FROM HOSE,P/ N,9438373,10 INCHES LONG Fits: All models	1	Ask us
10	Nonmetallic Make From Hose Hose P/N 23500024 HOSE,NONMETALLIC MAKE FROM HOSE,P/ N,9438257,22 INCHES LONG Fits: All models	1	Ask us
11	Metal Make From Tube Tube Assembly P/N 14063339 TUBE ASSEMBLY,METAL MAKE FROM TUBE, P/N 15618240,2.76 INCHES LONG Fits: All models	1	Ask us
12	Tube Coupling Inverted Nut NSN 4730-00-014-2432 · P/N 137397 INVERTED NUT,TUBE C Fits: All models	1	114 in stock
13	Boot NSN 2910-01-250-1098 · P/N 12339491-1 BOOT Fits: All models	1	10 in stock
14	Hose Clamp NSN 4730-00-908-6292 · P/N MS35842-14 CLAMP,HOSE Fits: All models	1	282 in stock
15	Plain Hexagon Nut NSN 5310-01-462-4459 · P/N 12550863 NUT,PLAIN,HEXAGON Fits: All models	3	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
