HMMWV Transmission Shift Lever, Shift Bracket, and Rod TM 9-2320-280-24P · Fig. 101

Every part in figure 101 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0705 Transmission Shifting Components: 11 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

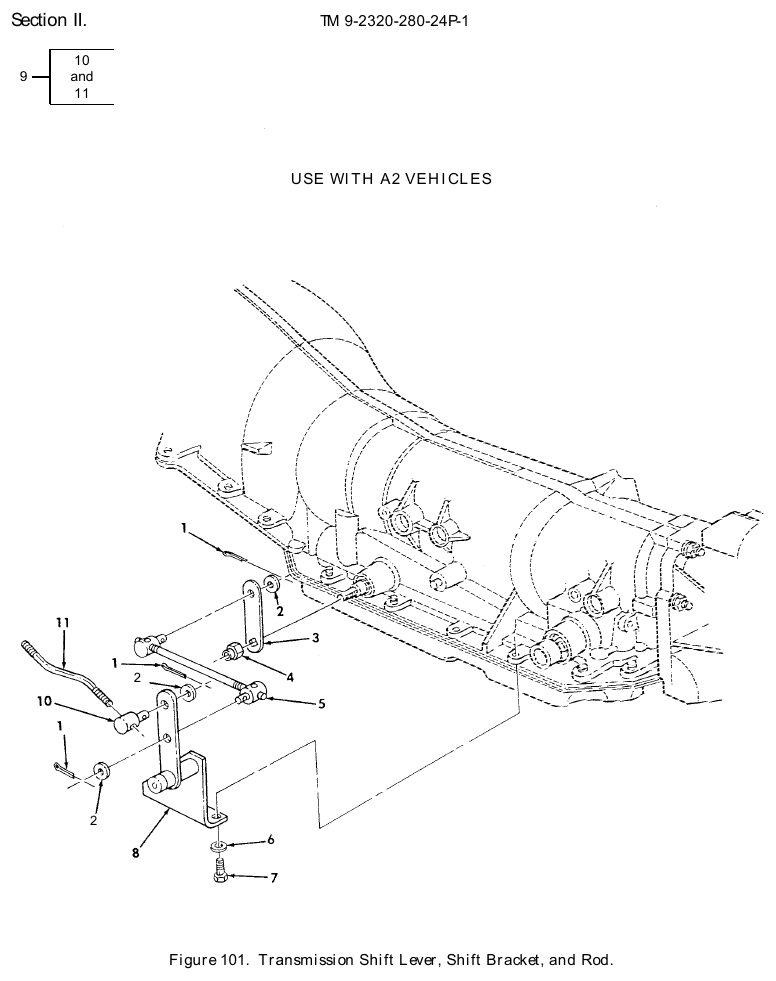

TM 9-2320-280-24P figure 101, Transmission Shift Lever, Shift Bracket, and Rod: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cotter Pin NSN 5315-00-842-3044 · P/N NASM24665-283 PIN,COTTER 3/32 X 3/4 Fits: All A2 models, plus M1123	4	3,000 in stock
2	Flat Washer NSN 5310-00-167-0821 · P/N AN960-616 WASHER,FLAT Fits: All A2 models, plus M1123	4	106 in stock
3	Rigid Connecting Link NSN 3040-01-409-2502 · P/N 6003175 CONNECTING LINK,RIG Fits: All A2 models, plus M1123	1	We can source it
4	Plain Hexagon Nut NSN 5310-01-155-2503 · P/N 11514603 NUT,PLAIN,HEXAGON 10-1.5MM Fits: All A2 models except M997A2, plus M1025A1, M1123	1	We can source it
5	Rigid Connecting Link NSN 3040-01-410-8054 · P/N 52827-1 CONNECTING LINK,RIG Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
6	Lock Washer NSN 5310-01-416-5447 · P/N 11500161 WASHER,LOCK 8MM Fits: All A2 models, plus M1123	2	We can source it
7	Machine Bolt NSN 5306-01-411-2342 · P/N 11505074 BOLT,MACHINE 8-1.25 X 35MM Fits: All A2 models, plus M1123	2	We can source it
8	Remote Control Lever Assembly NSN 3040-01-410-9965 · P/N 52826-1 LEVER ASSEMBLY,REMO Fits: All A2 models, plus M1123	1	2 in stock $65–$115 eachtypical
9	Rigid Connecting Link NSN 3040-01-409-2500 · P/N 12460146 CONNECTING LINK,RIG Fits: All A2 models, plus M1123	1	1 in stock $40–$80 eachtypical
10	Shift Control Trunnion NSN 2520-01-249-1434 · P/N 5593661 TRUNNION,SHIFT CONT Fits: All A2 models, plus M1123	2	1,050 in stock
11	Rod P/N 12460066 ROD Fits: All A2 models, plus M1123	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
