HMMWV Torque Converter TM 9-2320-280-24P · Fig. 102

Every part in figure 102 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0708 Torque Converter and Fluid Coupling: 4 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

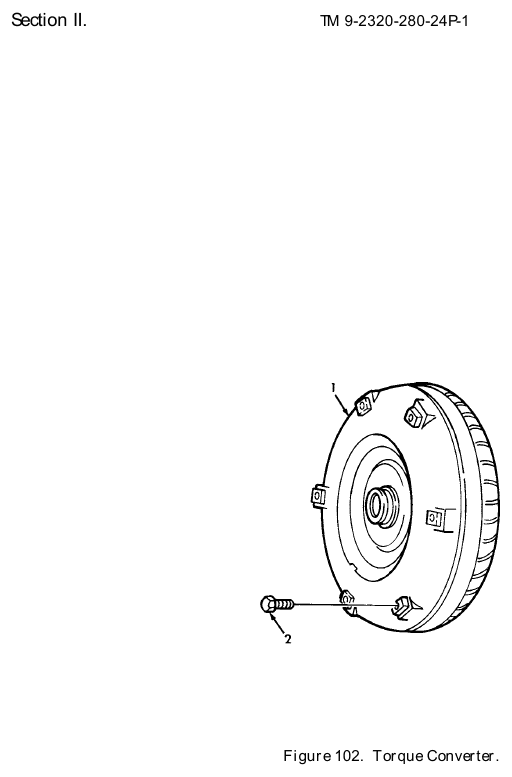

TM 9-2320-280-24P figure 102, Torque Converter: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Torque Converter NSN 2520-01-164-7234 · P/N 8656942 TORQUE CONVERTER Fits: All A0 and A1 models, plus M1121	1	101 in stock $382.00our price Buy online ↗
1	Vehicular Torque Converter NSN 2520-01-408-4785 · P/N 08689960 TORQUE CONVERTER,VE 1995 Fits: All A2 models, plus M1123	1	22 in stock $725.49 per eachgov't list price
1	Vehicular Torque Converter NSN 2520-01-460-8323 · P/N 24204835 TORQUE CONVERTER,VE 1996,97,98,99, 00,01 Fits: All A2 models, plus M1123	1	1 in stock $1,037.82 per eachgov't list price
2	Cap Hexagon Head Screw NSN 5305-01-188-5133 · P/N 12340514 SCREW,CAP,HEXAGON H #10-1.5 X 60 MM Fits: All models	6	153 in stock $98.99our price Buy online ↗

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
