HMMWV Transmission Mounting Hardware, Fluid Dipstick, and Tube Assembly TM 9-2320-280-24P · Fig. 103

Every part in figure 103 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0710 Transmission Assembly: 23 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

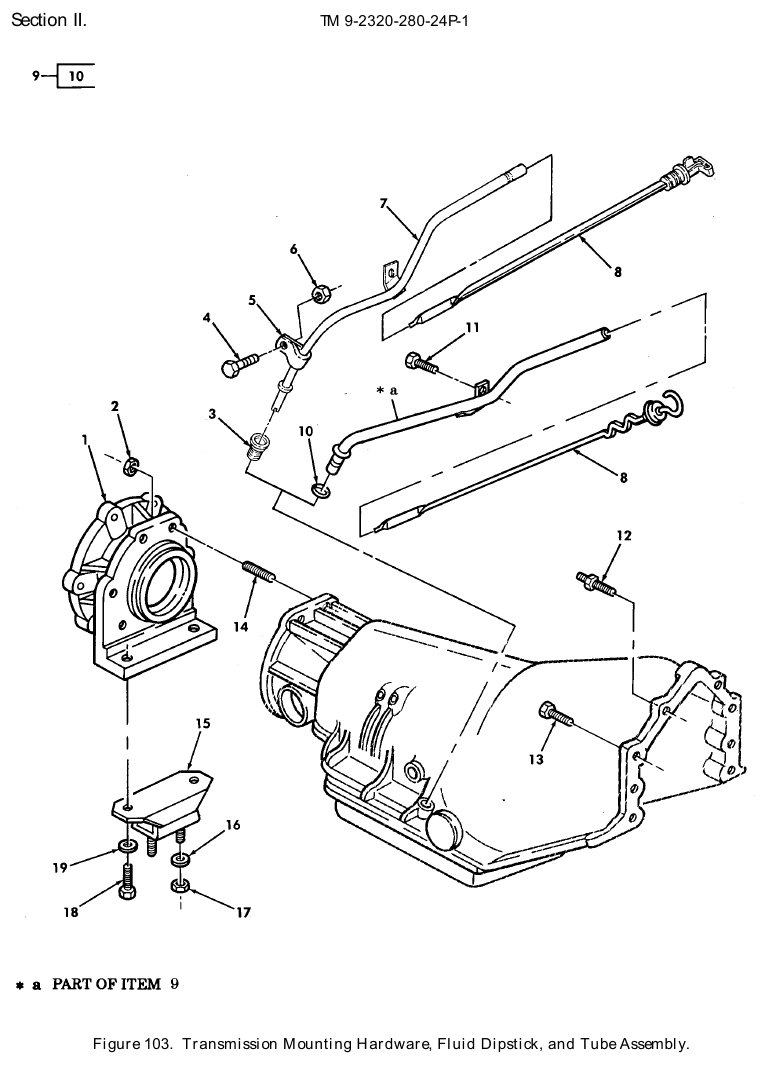

TM 9-2320-280-24P figure 103, Transmission Mounting Hardware, Fluid Dipstick, and Tube Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Pump Transmissi Adapter Assembly NSN 2520-01-175-7220 · P/N 12339134 ADAPTER ASSEMBLY,PU Fits: All A0 and A1 models, plus M1121	1	283 in stock $125.00our price Buy online ↗
1	Helium NSN 6830-01-464-1774 · P/N 12447175 ADAPTER ASSEMBLY,PU Fits: All A2 models, plus M1123	1	We can source it quote only
2	Self-Locking Extended Washer Nut NSN 5310-00-447-8774 · P/N MS51988-8 NUT,SELF-LOCKING,EX 3/8-24 Fits: All models	6	99 in stock
3	Nonmetallic Special Shaped Seal NSN 5330-01-447-4762 · P/N 12447172 SEAL,NONMETALLIC SP Fits: All A2 models, plus M1123	1	4 in stock
4	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H Fits: All models	1	300 in stock
5	Loop Clamp NSN 5340-01-166-1672 · P/N 120528 CLAMP,LOOP Fits: All models	1	20 in stock
6	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE Fits: All models	1	626 in stock
7	Vehicular Components Filler Neck NSN 2590-01-412-2664 · P/N 12447173 FILLER NECK Fits: All A2 models, plus M1123	1	49 in stock $103.57 per eachgov't list price
8	Liquid Level Gage Rod-Cap NSN 6680-01-184-9214 · P/N 12339167 GAGE ROD-CAP,LIQUID FOR DEEP WATER FORDING REFER TO 3305 Fits: All A0 and A1 models, plus M1121	1	13 in stock $25–$40 eachtypical
8	Liquid Level Gage Rod-Cap NSN 6680-01-466-7238 · P/N 12460314 GAGE ROD-CAP,LIQUID Fits: All A2 models, plus M1123	1	1 in stock $25–$40 eachtypical
9	Bent Metallic Tube NSN 4710-01-188-3238 · P/N 5582840 TUBE,BENT,METALLIC FOR DEEP WATER FORDING REFER TO 3305 Fits: All A0 and A1 models, plus M1121	1	We can source it $60–$105 eachtypical
10	Preformed Packing NSN 5330-01-184-6492 · P/N 2-113N497-70 PACKING,PREFORMED Fits: All A0 and A1 models, plus M1121	1	We can source it
11	Cap Screw NSN 5305-01-251-9222 · P/N 5593011 SCREW,CAP,HEXAGON H #10-1.5 X 16MM Fits: All A0 and A1 models, plus M1121	1	168 in stock
12	Shouldered Stud NSN 5307-01-190-7650 · P/N 12339662 STUD,SHOULDERED FOR USE UP TO 1998 ENGINE Fits: All models	2	12 in stock
13	Cap Hexagon Head Screw NSN 5305-00-688-2111 · P/N B1821BH038C138N SCREW,CAP,HEXAGON FOR USE UP TO 1998 ENGINE Fits: All models	4	296 in stock
13	Machine Bolt NSN 5306-01-185-7048 · P/N 11513606 BOLT,MACHINE FOR USE WITH 1999 AND UP ENGINES Fits: All models	6	9,070 in stock
14	Plain Stud NSN 5307-01-446-5930 · P/N 12339518 STUD,SHOULDERED Fits: All A0 and A1 models, plus M1121	6	We can source it
14	Plain Stud NSN 5307-01-411-2336 · P/N 6002942 STUD,SHOULDERED Fits: All A2 models, plus M1123	6	We can source it
15	Resilient Weapon System Mount NSN 5342-01-190-7735 · P/N 5589134 MOUNT,RESILIENT Fits: All models	1	15 in stock $65–$115 eachtypical
16	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: All models	2	We can source it
17	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All models	2	219 in stock
18	Cap Hexagon Head Screw NSN 5305-00-732-0511 · P/N B1821BH050C113N SCREW,CAP,HEXAGON H 1/2-13 X 1.125 Fits: All models	2	252 in stock
19	Lock Washer NSN 5310-00-584-5272 · P/N MS35338-48 WASHER,LOCK 1/2 Fits: All models	2	833 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
