HMMWV Transmission Assembly TM 9-2320-280-24P · Fig. 104

Every part in figure 104 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0710 Transmission Assembly: 26 lines, 15 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

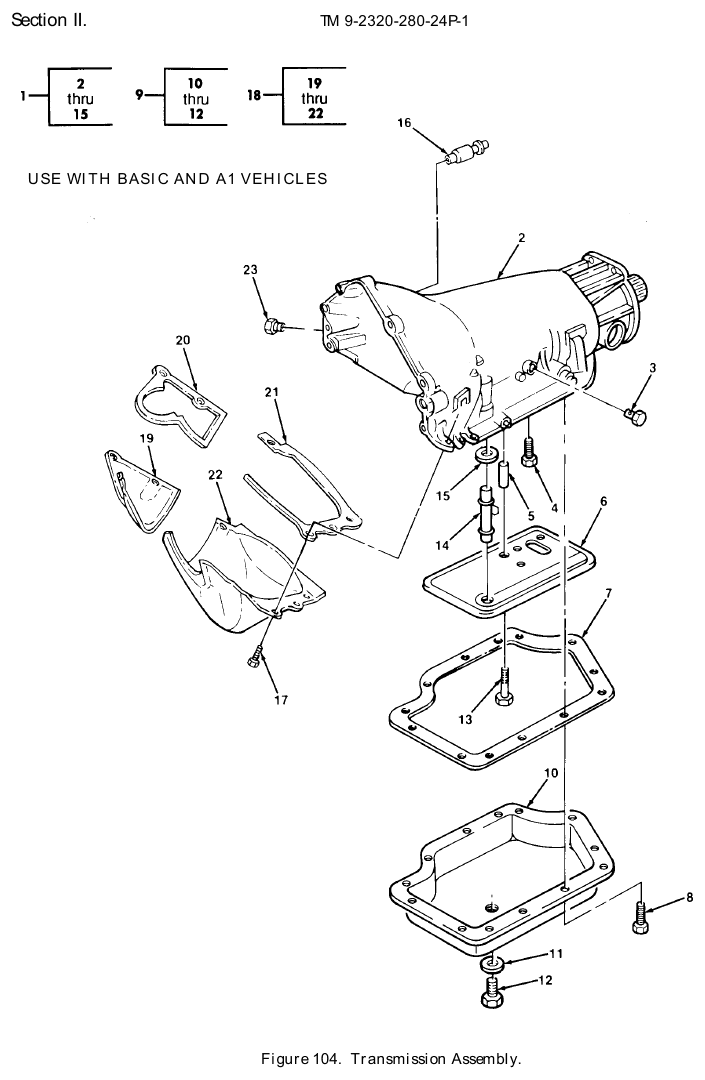

TM 9-2320-280-24P figure 104, Transmission Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hydraulic Vehicular Transmission NSN 2520-01-161-2136 · P/N 12339146 TRANSMISSION,HYDRAU Fits: All A0 and A1 models, plus M1121	1	13 in stock $7,731.00 per eachgov't list price
2	Mechanical Housing NSN 3040-01-448-9611 · P/N 8629991 HOUSING,MECHANICAL Fits: All A0 and A1 models, plus M1121	1	6 in stock
3	Pipe Plug NSN 4730-01-166-2244 · P/N WW-P-471AQABUA PLUG,PIPE Fits: All A0 and A1 models, plus M1121	1	We can source it
4	Internally Relieved Body Bolt NSN 5306-01-150-4835 · P/N GM8670757 BOLT,INTERNALLY REL PART OF KIT P/N 8680914 Fits: All A0 and A1 models, plus M1121	1	We can source it
5	Sleeve Spacer NSN 5365-01-153-0872 · P/N 8629523 SPACER,SLEEVE Fits: All A0 and A1 models, plus M1121	1	186 in stock $30–$65 eachtypical
6	Fluid Filter P/N 24210386 FILTER,FLUID PART OF KIT P/N 12337210 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
7	Gasket NSN 5330-01-148-7492 · P/N 8655625 GASKET PART OF KIT P/N 12337210 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	833 in stock $14.69our price Buy online ↗
8	Machine Bolt NSN 5306-00-024-6580 · P/N 3829139 BOLT,MACHINE 5/16-18 X 1/2 Fits: All A0 and A1 models, plus M1121	13	1 in stock
9	Oil Pan NSN 2520-01-212-7634 · P/N 8655036 OIL PAN Fits: All A0 and A1 models, plus M1121	1	9 in stock $146.58 per eachgov't list price
10	Pan P/N 8655037 PAN Fits: All A0 and A1 models, plus M1121	1	Ask us
11	Gasket NSN 5330-00-107-3925 · P/N 14079550 GASKET Fits: All A0 and A1 models, plus M1121	1	40 in stock
12	Plug NSN 5365-01-188-0782 · P/N 23011420 PLUG,MACHINE THREAD Fits: All A0 and A1 models, plus M1121	1	7 in stock
13	Shoulder Bolt NSN 5306-01-150-9497 · P/N 8633208 BOLT,SHOULDER Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$40 eachtypical
14	Bent Metallic Tube NSN 4710-01-152-5798 · P/N 8629526 TUBE,BENT,METALLIC Fits: All A0 and A1 models, plus M1121	1	We can source it
15	Nonmetallic Round Section Seal NSN 5330-01-080-3253 · P/N 12267802 SEAL,NONMETALLIC RO PART OF KIT P/N 12337210 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	48 in stock
16	Hose Mender NSN 4730-01-188-3296 · P/N 12340024 MENDER,HOSE Fits: All A0 and A1 models, plus M1121	1	20 in stock
17	Cap Screw NSN 5305-01-251-9222 · P/N 5593011 SCREW,CAP,HEXAGON H 10-1.5 X 16MM Fits: All A0 and A1 models, plus M1121	6	168 in stock
18	Access Weapon System Door NSN 5342-01-448-4215 · P/N 12342144-1 DOOR,ACCESS 6.5 LITER DETUNED Fits: All A0 and A1 models, plus M1121	1	We can source it $453.35 per eachgov't list price
18	Access Cover NSN 5340-01-311-1633 · P/N 12342144 COVER,ACCESS 6.2 LITER Fits: All A0 and A1 models	1	152 in stock $225.85our price Buy online ↗
19	Access Cover NSN 5340-01-314-5602 · P/N 12342107 COVER,ACCESS Fits: All A0 and A1 models, plus M1121	1	12 in stock $162.17 per eachgov't list price
20	Gasket NSN 5330-01-315-1609 · P/N 12342105 GASKET Fits: All A0 and A1 models, plus M1121	1	15 in stock
21	Gasket NSN 5330-01-314-6781 · P/N 12342104 GASKET 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	9 in stock
21	Gasket NSN 5330-01-473-4701 · P/N 12342104-1 GASKET 6.5 LITER DETUNED Fits: All A0 and A1 models, plus M1121	1	We can source it
22	Cover P/N 12342106 COVER,CONVERTER HOU 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	Ask us
22	Cover P/N 12342106-3 COVER,CONVERTER HOU 6.5 LITER DETUNED Fits: All A0 and A1 models, plus M1121	1	Ask us
23	Straight Pipe to Tube Adapter NSN 4730-01-177-7501 · P/N 8655186 ADAPTER,STRAIGHT,PI Fits: All A0 and A1 models, plus M1121	2	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
