HMMWV Transmission Assembly TM 9-2320-280-24P · Fig. 105

Every part in figure 105 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0710 Transmission Assembly: 42 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

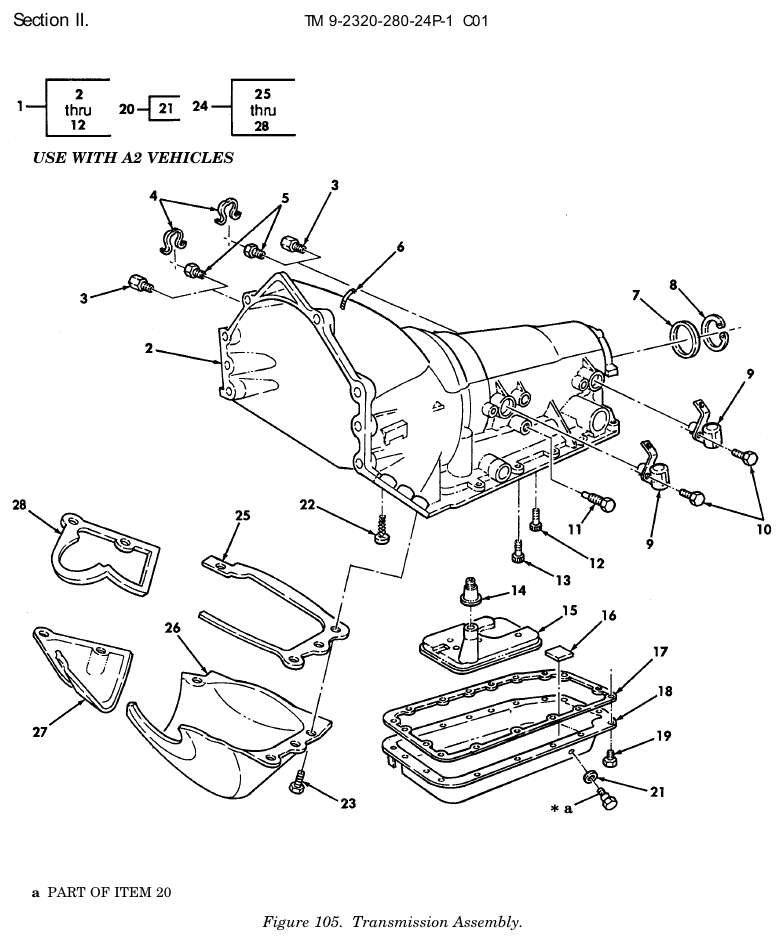

TM 9-2320-280-24P figure 105, Transmission Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Transmission NSN 2520-01-399-4691 · P/N 24202329 TRANSMISSION,MECHAN 1995 Fits: All A2 models, plus M1123	1	4 in stock
1	Transmission P/N 24205114 TRANSMISSION,HYDRAU 1996 PART OF KIT P/N 57K3502 Fits: All A2 models, plus M1123	1	Ask us
1	Transmission P/N 24205225 TRANSMISSION,HYDRAU 1997 PART OF KIT P/N 57K3523 Fits: All A2 models, plus M1123	1	Ask us
1	Transmission P/N 24208605 TRANSMISSION,HYDRAU 1998 PART OF KIT P/N 57K3539 Fits: All A2 models, plus M1123	1	Ask us
1	Transmission P/N 24211292 TRANSMISSION,HYDRAU 1999 PART OF KIT P/N 57K3549 Fits: All A2 models, plus M1123	1	Ask us
1	Transmission P/N 24214094 TRANSMISSION,HYDRAU 2000 PART OF KIT P/N 57K3558 Fits: All A2 models, plus M1123	1	Ask us
1	Transmission P/N 24214664 TRANSMISSION,HYDRAU 2001 PART OF KIT P/N 57K3569 Fits: All A2 models, plus M1123	1	Ask us
2	Transmission Case P/N 24208527 CASE,TRANSMISSION 1999 Fits: All A2 models, plus M1123	1	Ask us
2	Transmission Case P/N 24208668 CASE,TRANSMISSION 2000,01 Fits: All A2 models, plus M1123	1	Ask us
2	Transmission Case P/N 24203366 CASE,TRANSMISSION 1995,96 Fits: All A2 models, plus M1123	1	Ask us
2	Transmission Case P/N 24207168 CASE,TRANSMISSION 1997,98 Fits: All A2 models, plus M1123	1	Ask us
3	Straight Pipe to Tube Adapter NSN 4730-01-163-7163 · P/N 8637742 ADAPTER,STRAIGHT,PI Fits: All A2 models, plus M1123	2	We can source it
4	Retaining Clip NSN 5340-01-474-4011 · P/N 24205103 CLIP,RETAINING Fits: All A2 models, plus M1123	2	We can source it
5	Straight Pipe to Tube Adapter NSN 4730-01-177-7501 · P/N 8655186 ADAPTER,STRAIGHT,PI Fits: All A2 models, plus M1123	2	We can source it
6	Metallic Pipe NSN 4710-01-477-3662 · P/N 24200374 TUBE,VENT Fits: All A2 models, plus M1123	1	We can source it
7	Plain Seal NSN 5330-01-460-8988 · P/N 8675517 SEAL,PLAIN PART OF KIT P/N 24204441 PART OF KIT P/N 24210954 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	4 in stock $30–$65 eachtypical
8	Retaining Ring NSN 5325-01-460-9908 · P/N 8675524 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
9	Egr Valve Emission Contro Sensor NSN 2990-01-399-1023 · P/N 24203876 SENSOR,EGR VALVE,EM Fits: All A2 models, plus M1123	2	We can source it $30–$65 eachtypical
10	Machine Bolt NSN 5306-01-474-8837 · P/N 11508805 BOLT,MACHINE Fits: All A2 models, plus M1123	2	We can source it
11	Pipe Plug NSN 4730-01-166-2244 · P/N WW-P-471ACABUA PLUG,PIPE Fits: All A2 models, plus M1123	1	We can source it
12	Machine Bolt NSN 5306-01-461-3557 · P/N 8661762 BOLT,MACHINE PART OF KIT P/N 24205251 PART OF KIT P/N 24204441 PART OF KIT P/N 8680914 PART OF KIT 24208849 PART OF KIT P/N 24217454 PART OF KIT P/N 24200789 Fits: All A2 models, plus M1123	1	We can source it
13	Machine Bolt NSN 5306-01-461-3555 · P/N 8686124 BOLT,MACHINE PART OF KIT P/N 24205251 PART OF KIT P/N 24204441 Fits: All A2 models, plus M1123	1	We can source it
14	Plain Encased Seal NSN 5330-01-397-0374 · P/N 8656613 SEAL,PLAIN ENCASED PART OF KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24210955 PART OF KIT P/N 24210954 PART OF KIT P/N 24210956 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	We can source it
15	Hydraulic Transmission Parts Kit NSN 2520-01-398-4589 · P/N 8684221 PARTS KIT,HYDRAULIC 1995,96 PART OF KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	159 in stock $25–$45 per kittypical
15	Filter P/N 24210468 FILTER PART 1997,98,99,00,01 PART OF KIT P/N 24210955 PART OF KIT P/N 24210954 PART OF KIT P/N 24210956 Fits: All A2 models, plus M1123	1	Ask us
16	Magnet P/N 8654701 MAGNET,CHIP COLLECT 1995,96 PART OF KIT P/N 8685921 Fits: All A2 models, plus M1123	1	Ask us
16	Magnet P/N 8665830 MAGNET,CHIP COLLECT 1997,98,99,00, 01, PART OF KIT P/N 24204278 Fits: All A2 models, plus M1123	1	Ask us
17	Gasket NSN 5330-01-360-5271 · P/N 8677743 GASKET Fits: All A2 models, plus M1123	1	164 in stock $25–$45 eachtypical
18	Transmission Pan P/N 8682259 PAN,TRANSMISSION 1995,96 PART OF KIT P/N 8685921 Fits: All A2 models, plus M1123	1	Ask us
18	Transmission Pan P/N 24203377 PAN,TRANSMISSION 1997,98,99,00,01 PART OF KIT P/N 24204278 Fits: All A2 models, plus M1123	1	Ask us
19	Machine Bolt NSN 5306-01-465-2140 · P/N 11515756 BOLT,MACHINE Fits: All A2 models, plus M1123	17	6 in stock
20	Protective Dust and Moistur Plug NSN 5340-01-460-8207 · P/N 8675529 PLUG,PROTECTIVE,DUS 1995,96 PART OF KIT P/N 8685921 Fits: All A2 models, plus M1123	1	2 in stock $55–$100 eachtypical
20	Machine Thread Plug NSN 5365-01-480-6812 · P/N 24213991 PLUG,DRAIN 1997,98,99,00,01 PART OF KIT P/N 24204278 Fits: All A2 models, plus M1123	1	We can source it
21	Flat Washer NSN 5310-00-205-9983 · P/N 116103 WASHER,FLAT 1995,96 PART OF KIT P/N 8685921 Fits: All A2 models, plus M1123	1	We can source it
21	Gasket NSN 5330-01-480-2502 · P/N 24205123 GASKET 1997,98,99,00,01 PART OF KIT P/N 24204278 Fits: All A2 models, plus M1123	1	We can source it
22	Valve Automa Screen NSN 2520-01-461-2374 · P/N 8661834 SCREEN,VALVE,AUTOMA Fits: All A2 models, plus M1123	1	We can source it $35–$70 eachtypical
23	Cap Hexagon Head Screw NSN 5305-01-186-5381 · P/N 11515763 SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	5	4 in stock
24	Access Cover NSN 5340-01-491-3964 · P/N 12460093 COVER,ACCESS Fits: All A2 models, plus M1123	1	4 in stock $510.89 per eachgov't list price
25	Gasket NSN 5330-01-413-2118 · P/N 12460095 GASKET Fits: All A2 models, plus M1123	1	14 in stock
26	Access Cover NSN 5340-01-412-3563 · P/N EC-RCSK1834-3-1 COVER,ACCESS Fits: All A2 models, plus M1123	1	3 in stock $131.38 per eachgov't list price
27	Access Cover NSN 5340-01-314-5602 · P/N 12342107 COVER,ACCESS W/GASKET Fits: All A2 models, plus M1123	1	12 in stock $162.17 per eachgov't list price
28	Gasket NSN 5330-01-315-1609 · P/N 12342105 GASKET Fits: All A2 models, plus M1123	1	15 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
