HMMWV Planetary Gear Carrier TM 9-2320-280-24P · Fig. 106

Every part in figure 106 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0710 Transmission Assembly: 37 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

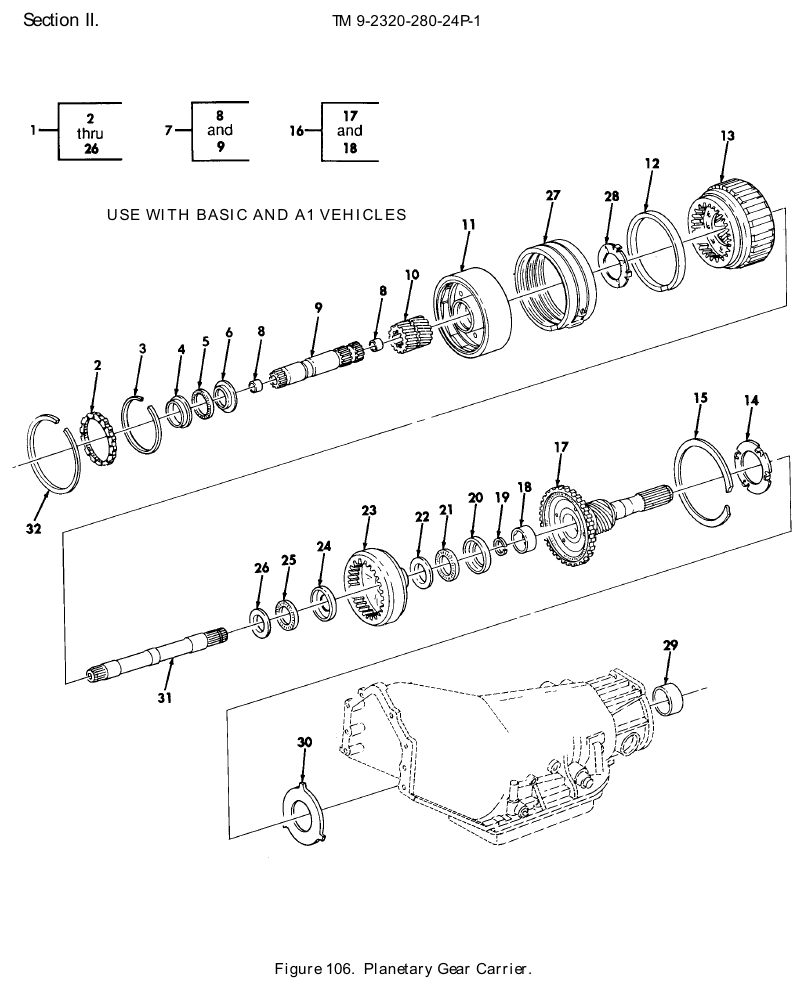

TM 9-2320-280-24P figure 106, Planetary Gear Carrier: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Carrier P/N 8633075 CARRIER,TRANSMISSIO Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Clutch Roller Assembly NSN 2520-01-149-1221 · P/N 930679 ROLLER ASSEMBLY,CLU Fits: All A0 and A1 models, plus M1121	1	17 in stock $49.89our price Buy online ↗
3	Retaining Ring NSN 5325-01-154-8561 · P/N 8627657 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	We can source it
4	Bearing Race P/N 8623204 RACE,BEARING PART OF KIT P/N 8623920 Fits: All A0 and A1 models, plus M1121	1	Ask us
5	Needle Bearing P/N 8624784 BEARING,NEEDLE PART OF KIT P/N 8623920 Fits: All A0 and A1 models, plus M1121	1	Ask us
6	Bearing Race P/N 8623183 RACE,BEARING PART OF KIT P/N 8623920 Fits: All A0 and A1 models, plus M1121	1	Ask us
7	Straight Shaft NSN 3040-01-150-0407 · P/N 8626809 SHAFT,STRAIGHT Fits: All A0 and A1 models, plus M1121	1	3 in stock $194.54 per eachgov't list price
8	Sleeve Bearing NSN 3120-01-156-5189 · P/N 8623944 BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	2	23 in stock $25–$50 eachtypical
9	Shaft P/N 8626806 SHAFT Fits: All A0 and A1 models, plus M1121	1	Ask us
10	Gear Cluster NSN 3020-01-149-7941 · P/N 8626807 GEAR CLUSTER Fits: All A0 and A1 models, plus M1121	1	168 in stock $159.17 per eachgov't list price
11	Transmission Carrier Assembly NSN 2520-01-149-7861 · P/N 24205551 CARRIER ASSEMBLY,TR Fits: All A0 and A1 models, plus M1121	1	46 in stock $613.08 per eachgov't list price
12	Retaining Ring NSN 5325-01-168-5729 · P/N 8626112 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	We can source it
13	Transmission Carrier NSN 2520-01-176-2839 · P/N 8681947 CARRIER,TRANSMISSIO Fits: All A0 and A1 models, plus M1121	1	6 in stock $356.73 per eachgov't list price
14	Washer Thrust Bearing NSN 3120-01-154-7174 · P/N 8626372 BEARING,WASHER,THRU 3.28 DIA Fits: All A0 and A1 models, plus M1121	1	5 in stock $25–$40 eachtypical
15	Retaining Ring NSN 5365-01-150-4982 · P/N 8626173 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	2 in stock $25–$40 eachtypical
16	Shaft and Bushing Assembly NSN 2520-01-168-1983 · P/N 8633059 SHAFT AND BUSHING A Fits: All A0 and A1 models, plus M1121	1	3 in stock $387.60 per eachgov't list price
17	Shaft P/N 8633056 SHAFT Fits: All A0 and A1 models, plus M1121	1	Ask us
18	Sleeve Bearing NSN 3120-01-158-6304 · P/N 8653985 BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	1	1 in stock $30–$70 eachtypical
19	Retaining Ring NSN 5325-01-174-8626 · P/N 8625221 RING,RETAINING PART OF KIT P/N 8623921 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$65 eachtypical
20	Bearing Race P/N 8623204 RACE,BEARING PART OF KIT P/N 8623922 Fits: All A0 and A1 models, plus M1121	1	Ask us
21	Needle Bearing P/N 8624784 BEARING,NEEDLE PART OF KIT P/N 8623922 Fits: All A0 and A1 models, plus M1121	1	Ask us
22	Bearing Race P/N 8623206 RACE,BEARING PART OF KIT P/N 8623922 Fits: All A0 and A1 models, plus M1121	1	Ask us
23	Internal Gear NSN 3020-01-149-7938 · P/N 8623202 GEAR,INTERNAL Fits: All A0 and A1 models, plus M1121	1	20 in stock
24	Bearing Race P/N 8623194 RACE,BEARING PART OF KIT P/N 8623921 Fits: All A0 and A1 models, plus M1121	1	Ask us
25	Bearing Needle P/N 8626817 BEARING NEEDLE PART OF KIT P/N 8623921 Fits: All A0 and A1 models, plus M1121	1	Ask us
26	Bearing Race P/N 8623196 RACE,BEARING PART OF KIT P/N 8623921 Fits: All A0 and A1 models, plus M1121	1	Ask us
27	Clutch Brake Band NSN 2520-01-159-2732 · P/N 8681620 BAND,CLUTCH BRAKE Fits: All A0 and A1 models, plus M1121	1	5 in stock
28	Washer Thrust Bearing NSN 3120-01-154-7174 · P/N 8626372 BEARING,WASHER,THRU 3.28 DIA Fits: All A0 and A1 models, plus M1121	1	5 in stock $25–$40 eachtypical
29	Sleeve Bearing NSN 3120-01-166-3677 · P/N 8623941 BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	1	2 in stock $25–$55 eachtypical
30	Washer Thrust Bearing NSN 3120-01-154-8516 · P/N 8625401 BEARING,WASHER,THRU .074-.078 Fits: All A0 and A1 models, plus M1121	1	4 in stock $35–$70 eachtypical
30	Washer Thrust Bearing NSN 3120-01-159-5773 · P/N 8625402 BEARING,WASHER,THRU .082-.086 Fits: All A0 and A1 models, plus M1121	1	5 in stock $35–$70 eachtypical
30	Washer Thrust Bearing NSN 3120-01-154-4369 · P/N 8625403 BEARING,WASHER,THRU .090-.094 Fits: All A0 and A1 models, plus M1121	1	4 in stock $30–$65 eachtypical
30	Washer Thrust Bearing NSN 3120-01-161-4033 · P/N 8625404 BEARING,WASHER,THRU .098-.102 Fits: All A0 and A1 models, plus M1121	1	5 in stock $30–$65 eachtypical
30	Washer Thrust Bearing NSN 3120-01-162-5787 · P/N 8625405 BEARING,WASHER,THRU .106-.110 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$65 eachtypical
30	Washer Thrust Bearing NSN 3120-01-154-8517 · P/N 8625406 BEARING,WASHER,THRU .114-.118 Fits: All A0 and A1 models, plus M1121	1	456 in stock $30–$65 eachtypical
31	Straight Shaft NSN 3040-01-167-2836 · P/N 8625736 SHAFT,STRAIGHT Fits: All A0 and A1 models, plus M1121	1	2 in stock $125.73 per eachgov't list price
32	Retaining Ring NSN 5325-01-160-4693 · P/N 8623437 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
