HMMWV Planetary Gear Carrier TM 9-2320-280-24P · Fig. 107

Every part in figure 107 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0710 Transmission Assembly: 40 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

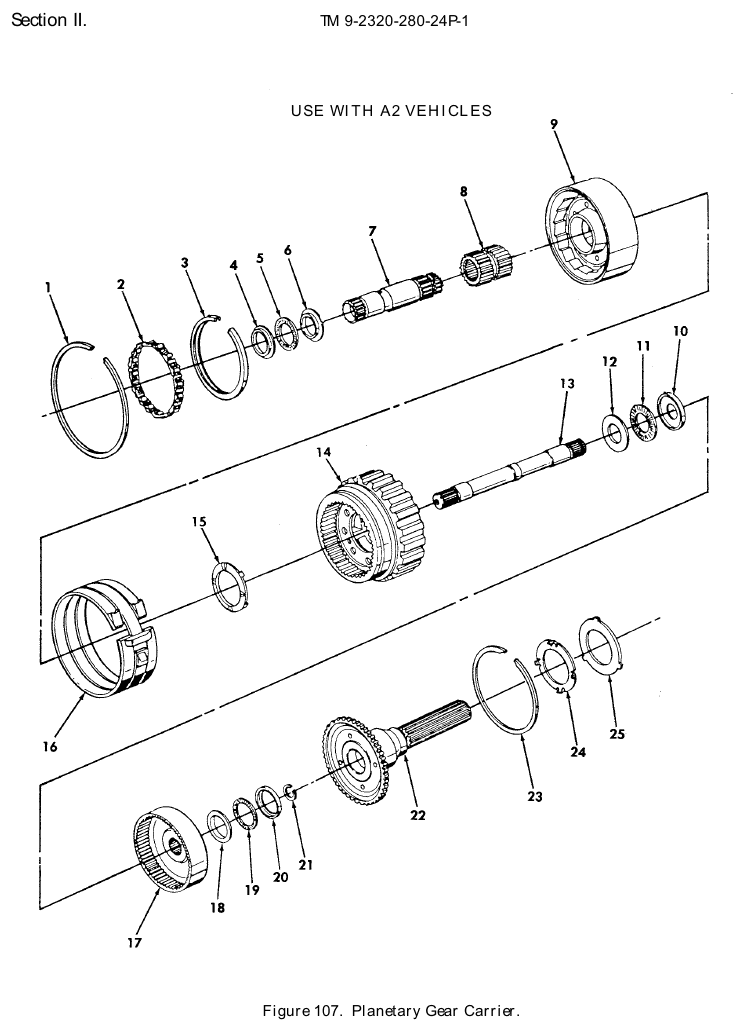

TM 9-2320-280-24P figure 107, Planetary Gear Carrier: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Retaining Ring NSN 5325-01-154-8562 · P/N 8626816 RING,RETAINING Fits: All A2 models, plus M1123	1	1 in stock $25–$40 eachtypical
2	Roller Needle Bearing NSN 3110-01-480-5240 · P/N 7471009 ROLLER ASSEMBLY,CLU PART OF KIT P/N 24205551 PART OF KIT P/N 24205552 Fits: All A2 models, plus M1123	1	We can source it $65–$115 eachtypical
3	Retaining Ring NSN 5325-01-154-8561 · P/N 8627657 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
4	Bearing Race P/N 8623183 RACE,BEARING PART OF KIT P/N 8623920 Fits: All A2 models, plus M1123	1	Ask us
5	Needle Bearing P/N 8624784 BEARING,NEEDLE PART OF KIT P/N 8623920 Fits: All A2 models, plus M1123	1	Ask us
6	Race P/N 8623204 RACE,THRUST BEARING PART OF KIT P/N 8623920 Fits: All A2 models, plus M1123	1	Ask us
7	Spur Gearshaft NSN 3040-01-447-3797 · P/N 8661708 SHAFT,STRAIGHT 1995,96 Fits: All A2 models, plus M1123	1	We can source it $109.17 per eachgov't list price
7	Shouldered Shaft NSN 3040-01-480-7297 · P/N 24207247 SHAFT,STRAIGHT 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $95–$160 eachtypical
8	Gear Cluster NSN 3020-01-149-7941 · P/N 8626807 GEAR,HELICAL 1995,96 Fits: All A2 models, plus M1123	1	168 in stock $159.17 per eachgov't list price
8	Helical Gear NSN 3020-01-480-7299 · P/N 24203397 GEAR,HELICAL 1997 Fits: All A2 models, plus M1123	1	We can source it $163.98 per eachgov't list price
8	Helical Gear NSN 3020-01-480-7302 · P/N 24209475 GEAR,HELICAL 1998,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $123.84 per eachgov't list price
9	Carrier Assembly P/N 24202346 CARRIER ASSEMBLY 1995,96,97 SPUR CUT GEARS PART OF KIT P/N 24205552 Fits: All A2 models, plus M1123	1	Ask us
9	Carrier Assembly TR P/N 24212051 CARRIER ASSEMBLY TR 1998,99,00,01 HELICAL CUT GEARS PART OF KIT P/N 24205551 Fits: All A2 models, plus M1123	1	Ask us
10	Bearing Race P/N 8623196 RACE,BEARING 1995,96 PART OF KIT P/N 8623921 Fits: All A2 models, plus M1123	1	Ask us
10	Bearing Race P/N 24204962 RACE,BEARING 1997,98,99,00,01 PART OF KIT P/N 24208848 Fits: All A2 models, plus M1123	1	Ask us
11	Bearing Needle P/N 8626817 BEARING NEEDLE PART OF KIT P/N 8623921 PART OF KIT P/N 24208848 Fits: All A2 models, plus M1123	1	Ask us
12	Bearing Race P/N 8623194 RACE,BEARING PART OF KIT P/N 8623921 PART OF KIT P/N 24208848 Fits: All A2 models, plus M1123	1	Ask us
13	Shouldered Shaft NSN 3040-01-410-8068 · P/N 8661613 SHAFT,SHOULDERED 1995,96 Fits: All A2 models, plus M1123	1	We can source it quote only $70–$120 eachtypical
13	Shouldered Shaft NSN 3040-01-480-7309 · P/N 24203400 SHAFT,SHOULDERED 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	2 in stock $179.51 per eachgov't list price
14	TR Carrier Assembly NSN 2520-01-461-0107 · P/N 8675612 CARRIER,TRANSMISSIO 1995,96,97 Fits: All A2 models, plus M1123	1	We can source it $992.07 per eachgov't list price
14	Planetary Gears Carrier NSN 3040-01-480-7536 · P/N 8675611 CARRIER,TRANSMISSIO 1998,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $569.91 per eachgov't list price
15	Washer Thrust Bearing NSN 3120-01-154-7174 · P/N 8626372 BEARING,WASHER,THRU Fits: All A2 models, plus M1123	1	5 in stock $25–$40 eachtypical
16	Brake Band and Lining NSN 3040-01-480-7593 · P/N 24202229 BRAKE BAND AND LINI Fits: All A2 models, plus M1123	1	We can source it quote only $85–$145 eachtypical
17	Internal Gear NSN 3020-01-480-7311 · P/N 8683771 GEAR,INTERNAL 1995,96 Fits: All A2 models, plus M1123	1	We can source it $193.21 per eachgov't list price
17	Internal Gear NSN 3020-01-480-7321 · P/N 24203399 GEAR,INTERNAL 1997 Fits: All A2 models, plus M1123	1	4 in stock $301.12 per eachgov't list price
17	Internal Gear NSN 3020-01-480-7630 · P/N 24203398 GEAR,INTERNAL 1998,99,00,01 Fits: All A2 models, plus M1123	1	10 in stock $146.99our price Buy online ↗
18	Race P/N 8623204 RACE,THRUST BEARING PART OF KIT P/N 8623922 Fits: All A2 models, plus M1123	1	Ask us
19	Needle Bearing P/N 8624784 BEARING,NEEDLE PART OF KIT P/N 8623922 Fits: All A2 models, plus M1123	1	Ask us
20	Bearing Race P/N 8623206 RACE,BEARING PART OF KIT P/N 8623922 Fits: All A2 models, plus M1123	1	Ask us
21	Retaining Ring NSN 5325-01-174-8626 · P/N 8625221 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
22	Spur Gearshaft NSN 3040-01-410-8071 · P/N 8661598 GEARSHAFT,SPUR 1995,96,97 Fits: All A2 models, plus M1123	1	We can source it $191.68 per eachgov't list price
22	Spur Gearshaft NSN 3040-01-480-7591 · P/N 24204291 GEARSHAFT,SPUR 1998,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $179.57 per eachgov't list price
23	Retaining Ring NSN 5365-01-150-4982 · P/N 8626173 RING,RETAINING Fits: All A2 models, plus M1123	1	2 in stock $25–$40 eachtypical
24	Washer Thrust Bearing NSN 3120-01-154-7174 · P/N 8626372 BEARING,WASHER,THRU Fits: All A2 models, plus M1123	1	5 in stock $25–$40 eachtypical
25	Washer Thrust Bearing NSN 3120-01-154-8516 · P/N 8625401 BEARING,WASHER,THRU .074-.078 Fits: All A2 models, plus M1123	1	4 in stock $35–$70 eachtypical
25	Washer Thrust Bearing NSN 3120-01-159-5773 · P/N 8625402 BEARING,WASHER,THRU .082-.086 Fits: All A2 models, plus M1123	1	5 in stock $35–$70 eachtypical
25	Washer Thrust Bearing NSN 3120-01-154-4369 · P/N 8625403 BEARING,WASHER,THRU .090-.094 Fits: All A2 models, plus M1123	1	4 in stock $30–$65 eachtypical
25	Washer Thrust Bearing NSN 3120-01-161-4033 · P/N 8625404 BEARING,WASHER,THRU .098-.102 Fits: All A2 models, plus M1123	1	5 in stock $30–$65 eachtypical
25	Washer Thrust Bearing NSN 3120-01-162-5787 · P/N 8625405 BEARING,WASHER,THRU .106-.110 Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
25	Washer Thrust Bearing NSN 3120-01-154-8517 · P/N 8625406 BEARING,WASHER,THRU .114-.118 Fits: All A2 models, plus M1123	1	456 in stock $30–$65 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
