HMMWV Parking Lock System TM 9-2320-280-24P · Fig. 108

Every part in figure 108 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0710 Transmission Assembly: 14 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

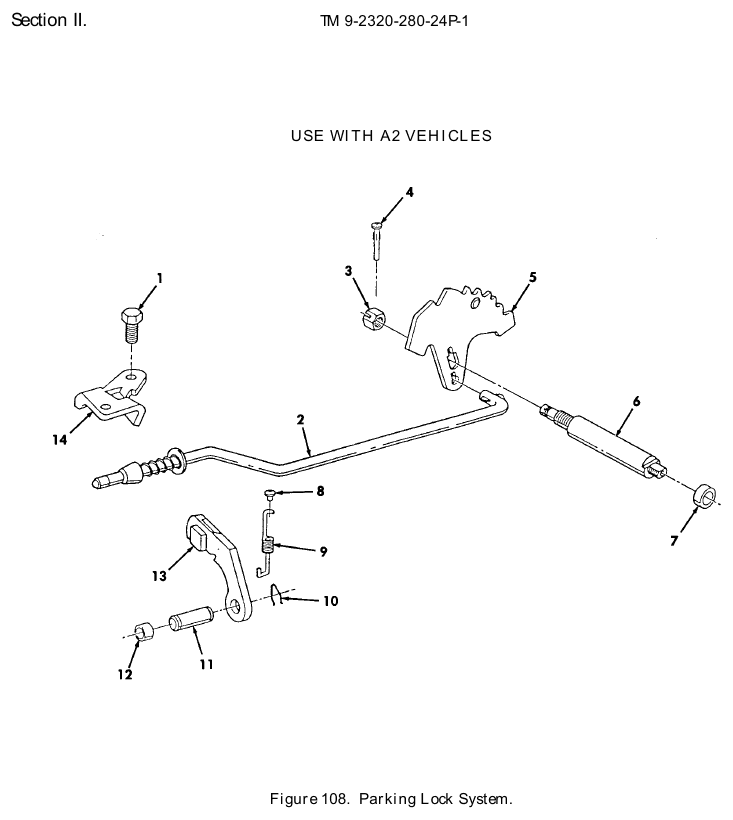

TM 9-2320-280-24P figure 108, Parking Lock System: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-01-197-1492 · P/N 11508687 BOLT,MACHINE Fits: All A2 models, plus M1123	2	14 in stock $25–$40 eachtypical
2	Rigid Connecting Link NSN 3040-01-447-7995 · P/N 24200173 CONNECTING LINK,RIG Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
3	Plain Hexagon Nut NSN 5310-01-447-0968 · P/N 8648178 NUT,PLAIN,HEXAGON Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
4	Straight Headless Pin NSN 5315-01-447-0492 · P/N 8678347 PIN,STRAIGHT,HEADLE Fits: All A2 models, plus M1123	1	We can source it
5	Lever P/N 24201001 LEVER,REMOTE CONTRO PART OF KIT P/N 24204472 Fits: All A2 models, plus M1123	1	Ask us
6	Shaft P/N 24200999 SHAFT PART OF KIT P/N 24204472 Fits: All A2 models, plus M1123	1	Ask us
7	Gasket NSN 5330-01-251-1607 · P/N 8657163 GASKET PART OF KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210955 PART OF KIT P/N 24210956 Fits: All A2 models, plus M1123	1	We can source it $25–$50 eachtypical
8	Straight Headed Pin NSN 5315-01-408-8020 · P/N 8678122 PIN,STRAIGHT,HEADED Fits: All A2 models, plus M1123	1	We can source it
9	Helical Extension Spring NSN 5360-01-461-4931 · P/N 24202611 SPRING,HELICAL,EXTE Fits: All A2 models, plus M1123	1	We can source it
10	Retaining Clip NSN 5340-01-162-5883 · P/N 451786 CLIP,RETAINING Fits: All A2 models, plus M1123	1	We can source it
11	Straight Headless Pin NSN 5315-01-460-9907 · P/N 8661692 PIN,STRAIGHT,HEADLE Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
12	Pipe Plug NSN 4730-01-460-5520 · P/N 24200224 PLUG,PIPE Fits: All A2 models, plus M1123	1	We can source it $25–$55 eachtypical
13	Pawl NSN 3040-01-460-9964 · P/N 8661693 PAWL Fits: All A2 models, plus M1123	1	We can source it $251.10 per eachgov't list price
14	Vehicular Components Bracket NSN 2590-01-460-8316 · P/N 24200347 BRACKET Fits: All A2 models, plus M1123	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
