HMMWV Direct Clutch Assembly TM 9-2320-280-24P · Fig. 109

Every part in figure 109 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0713 Intermediate Clutch: 19 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

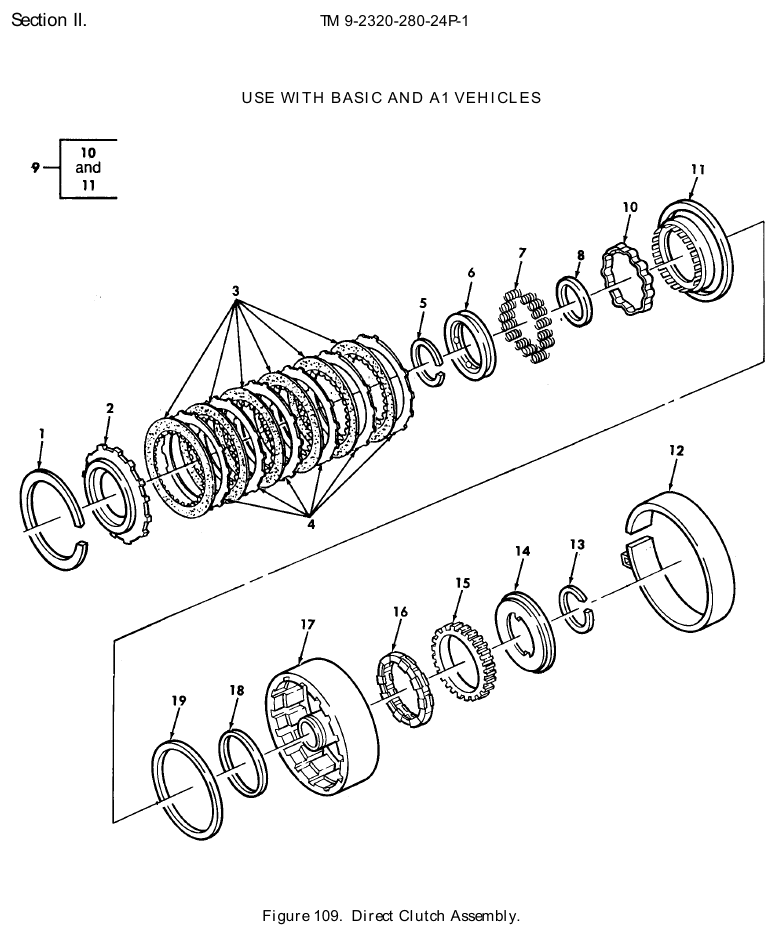

TM 9-2320-280-24P figure 109, Direct Clutch Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Retaining Ring NSN 5325-00-007-3052 · P/N 8623112 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	We can source it
2	Clutch Pressure Plate Assembly NSN 2520-00-008-9987 · P/N 23017763 PRESSURE PLATE ASSE Fits: All A0 and A1 models, plus M1121	1	34 in stock $60–$100 eachtypical
3	Clutch Vehicular Disk NSN 2520-01-150-3932 · P/N 24202646 DISK,CLUTCH PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	6	75 in stock
4	Clutch Vehicular Disk NSN 2520-00-172-1947 · P/N 29530330 DISK,CLUTCH .0915 Fits: All A0 and A1 models, plus M1121	6	80 in stock
5	Retaining Ring NSN 5325-01-171-3392 · P/N 6884730 RING,RETAINING 1.63 X .062 Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Retaining Bearing Plate NSN 3110-00-005-0873 · P/N 8623104 PLATE,RETAINING,BEA Fits: All A0 and A1 models, plus M1121	1	We can source it
7	Helical Compression Spring NSN 5360-01-150-6091 · P/N 8624101 SPRING,HELICAL,COMP Fits: All A0 and A1 models, plus M1121	14	We can source it
8	Inner Seal P/N 8677582 SEAL,INNER PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
9	Transmission Ring NSN 2520-01-192-1260 · P/N 8670201 RING,TRANSMISSION Fits: All A0 and A1 models, plus M1121	1	1 in stock
10	Apply Ring P/N 8627422 RING,APPLY Fits: All A0 and A1 models, plus M1121	1	Ask us
11	Transmission Planetary Parts Kit NSN 2520-01-163-7866 · P/N 8670200 PARTS KIT,TRANSMISS Fits: All A0 and A1 models, plus M1121	1	21 in stock $85–$145 eachtypical
12	Clutch Front Band NSN 2520-01-212-6642 · P/N 8675578 BAND,CLUTCH,FRONT Fits: All A0 and A1 models, plus M1121	1	1 in stock
13	Retaining Ring NSN 5365-01-150-6092 · P/N 8623120 RING,RETAINING 2.40 X .042 Fits: All A0 and A1 models, plus M1121	1	24 in stock $25–$55 eachtypical
14	Clutch Vehicular Disk NSN 2520-01-149-1868 · P/N 8627334 DISK,CLUTCH,VEHICUL PART OF KIT P/N 8680915 Fits: All A0 and A1 models, plus M1121	1	46 in stock $40–$75 eachtypical
15	Bearing Outer Ring NSN 3110-01-155-4438 · P/N 8629487 RING,BEARING,OUTER PART OF KIT P/N 8680915 Fits: All A0 and A1 models, plus M1121	1	24 in stock $122.68 per eachgov't list price
16	Roller Needle Bearing NSN 3110-01-174-8136 · P/N 8623116 BEARING,ROLLER,NEED PART OF KIT P/N 8680915 Fits: All A0 and A1 models, plus M1121	1	24 in stock $118.06 per eachgov't list price
17	Mechanical Drive Housing NSN 3040-01-266-2122 · P/N 8679960 HOUSING,MECHANICAL Fits: All A0 and A1 models, plus M1121	1	39 in stock $337.02 per eachgov't list price
18	Center Seal P/N 24209225 SEAL,CENTER PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
19	Outer Seal P/N 8677583 SEAL,OUTER PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
