HMMWV Direct Clutch Assembly TM 9-2320-280-24P · Fig. 110

Every part in figure 110 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0713 Intermediate Clutch: 18 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

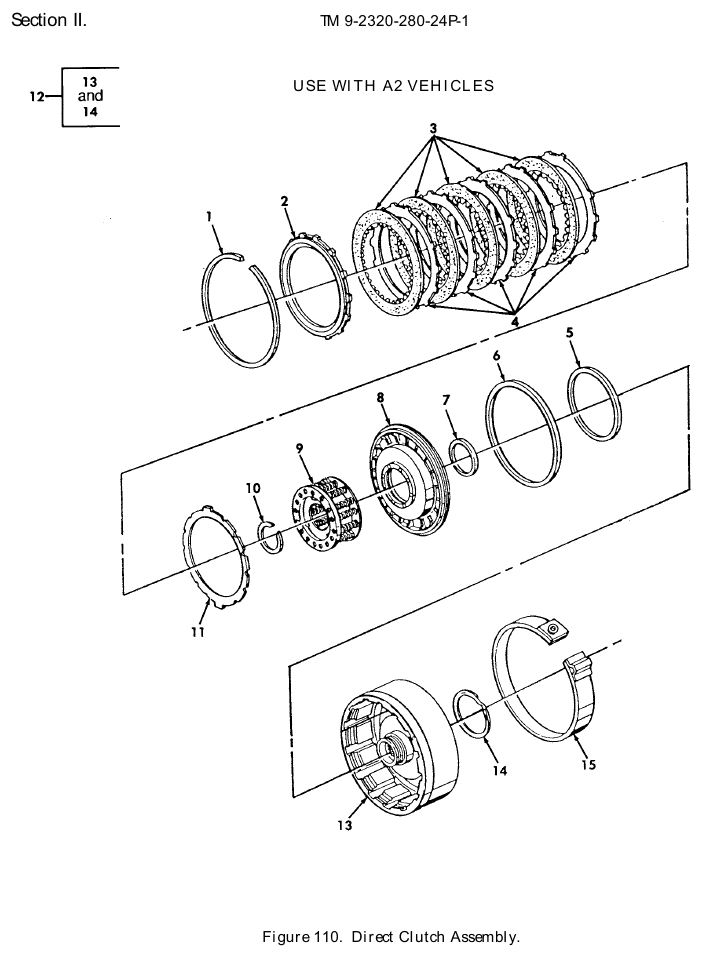

TM 9-2320-280-24P figure 110, Direct Clutch Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Retaining Ring NSN 5325-00-007-3052 · P/N 8623112 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
2	Clutch Plate Transmissi Retainer NSN 2520-01-461-0076 · P/N 8675557 RETAINER,CLUTCH PLA Fits: All A2 models, plus M1123	1	We can source it $35–$75 eachtypical
3	Clutch Vehicular Disk NSN 2520-01-150-3932 · P/N 24202646 DISK,CLUTCH PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	5	75 in stock
4	Clutch Vehicular Disk NSN 2520-00-172-1947 · P/N 29530330 DISK,CLUTCH Fits: All A2 models, plus M1123	5	80 in stock
5	Direct Clutch Seal P/N 24209225 SEAL,DIRECT CLUTCH PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	Ask us
6	Piston Outer Seal P/N 8677483 SEAL,PISTON,OUTER 1995,96 PART OF KIT 24204441 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	Ask us
7	Piston Inner Seal P/N 8677582 SEAL,PISTON,INNER 1995,96 PART OF KIT P/N 24204441 PART OF KIT 24205251 Fits: All A2 models, plus M1123	1	Ask us
8	Clutch Shaft Assembly Piston NSN 2520-01-413-5540 · P/N 8675511 PISTON,CLUTCH SHAFT 1995,96 Fits: All A2 models, plus M1123	1	We can source it $45–$90 eachtypical
8	Clutch Bearing NSN 2520-01-474-8871 · P/N 24204961 PISTON,CLUTCH SHAFT 1997,98,99,00, 01 Fits: All A2 models, plus M1123	1	We can source it $35–$70 eachtypical
9	Spring and Retainer NSN 2520-01-461-0099 · P/N 8661764 SPRING AND RETAINER Fits: All A2 models, plus M1123	1	We can source it
10	Retaining Ring NSN 5325-01-171-3392 · P/N 8623105 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
11	Clutch Vehicular Disk NSN 2520-01-392-8435 · P/N 8680816 DISK,CLUTCH 1995,96 Fits: All A2 models, plus M1123	1	1 in stock $25–$60 eachtypical
11	Clutch Vehicular Disk NSN 2520-01-481-8479 · P/N 24205560 DISK,CLUTCH 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	4 in stock
12	Clutch Assembly P/N 24209311 CLUTCH ASSEMBLY,FRI Fits: All A2 models, plus M1123	1	Ask us
13	Housing P/N 24209244 HOUSING,DIRECT CLUT Fits: All A2 models, plus M1123	1	Ask us
14	Retaining Clip NSN 5340-01-476-0352 · P/N 8675558 RING,RETAINING PART OF KIT P/N 8680915 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
15	Brake Band and Lining NSN 3040-01-480-7595 · P/N 24202631 BAND,CLUTCH,FRONT 1995,96,97,98 Fits: All A2 models, plus M1123	1	We can source it quote only $30–$70 eachtypical
15	Clutch Band NSN 2520-01-480-7556 · P/N 24210080 BAND,CLUTCH,FRONT 1999,00,01 Fits: All A2 models, plus M1123	1	We can source it $30–$60 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
