HMMWV Forward Clutch TM 9-2320-280-24P · Fig. 111

Every part in figure 111 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0713 Intermediate Clutch: 17 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

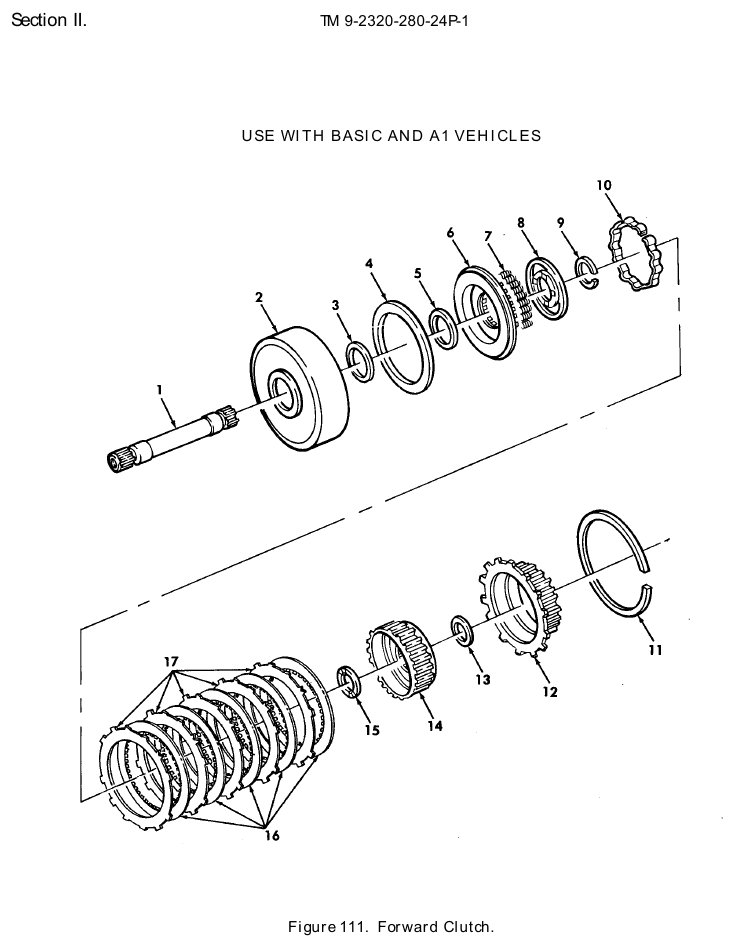

TM 9-2320-280-24P figure 111, Forward Clutch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Straight Shaft NSN 3040-01-149-6706 · P/N 8624772 SHAFT,STRAIGHT Fits: All A0 and A1 models, plus M1121	1	We can source it $198.64 per eachgov't list price
2	Clutch Housing Parts Kit NSN 2520-01-169-7674 · P/N 8624908 PARTS KIT,CLUTCH,HO Fits: All A0 and A1 models, plus M1121	1	152 in stock $305.55 per kitgov't list price
3	Center Seal P/N 24209224 SEAL,CENTER PART OF KIT P/N 8623917 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
4	Outer Seal P/N 8677583 SEAL,OUTER PART OF KIT P/N 8623917 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
5	Inner Seal P/N 8677582 SEAL,INNER PART OF KIT P/N 8623917 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
6	Transmission Planetary Parts Kit NSN 2520-01-163-7866 · P/N 8670200 PARTS KIT,TRANSMISS PART OF KIT P/N 8627989 Fits: All A0 and A1 models, plus M1121	1	21 in stock $85–$145 eachtypical
7	Helical Compression Spring NSN 5360-01-150-6091 · P/N 8624101 SPRING,HELICAL,COMP Fits: All A0 and A1 models, plus M1121	16	We can source it
8	Retaining Bearing Plate NSN 3110-00-005-0873 · P/N 8623104 PLATE,RETAINING,BEA Fits: All A0 and A1 models, plus M1121	1	We can source it
9	Retaining Ring NSN 5325-01-171-3392 · P/N 6884730 RING,RETAINING 1.630 X .062 Fits: All A0 and A1 models, plus M1121	1	We can source it
10	Clutch Vehicular Disk NSN 2520-01-150-2279 · P/N 8679940 DISK,CLUTCH,VEHICUL PART OF KIT P/N 8627989 Fits: All A0 and A1 models, plus M1121	1	65 in stock
11	Retaining Ring NSN 5325-00-007-3052 · P/N 8623112 RING,RETAINING 6.24 OD X .062 Fits: All A0 and A1 models, plus M1121	1	We can source it
12	Clutch Driving Hub NSN 2520-01-170-9826 · P/N 23015732 HUB,CLUTCH,DRIVING Fits: All A0 and A1 models, plus M1121	1	We can source it $153.18 per eachgov't list price
13	Washer Thrust Bearing NSN 3120-00-255-5697 · P/N 8624781 BEARING,WASHER,THRU Fits: All A0 and A1 models, plus M1121	1	5 in stock
14	Spur Gear NSN 3020-01-149-5049 · P/N 8625717 GEAR,SPUR Fits: All A0 and A1 models, plus M1121	1	2 in stock $100–$165 eachtypical
15	Washer Thrust Bearing NSN 3120-01-156-8763 · P/N 8624196 BEARING,WASHER,THRU Fits: All A0 and A1 models, plus M1121	1	We can source it
16	Clutch Vehicular Disk NSN 2520-01-150-3932 · P/N 24202646 DISK,CLUTCH PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	5	75 in stock
17	Clutch Vehicular Disk NSN 2520-00-172-1947 · P/N 29530330 DISK,CLUTCH .0713 Fits: All A0 and A1 models, plus M1121	5	80 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
