HMMWV Forward Clutch TM 9-2320-280-24P · Fig. 112

Every part in figure 112 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0713 Intermediate Clutch: 20 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

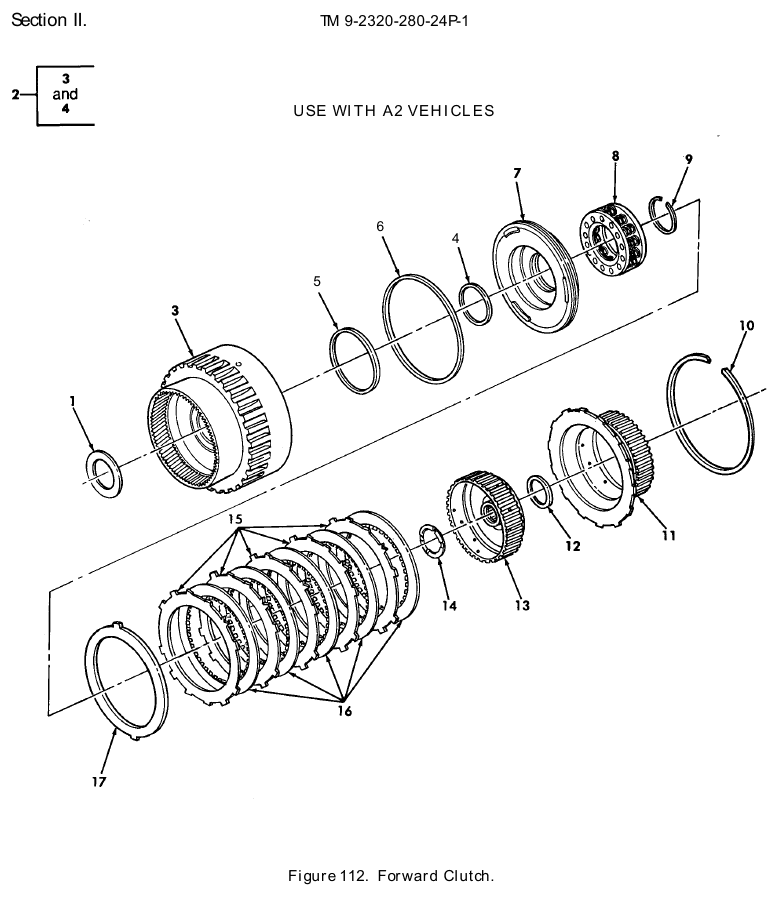

TM 9-2320-280-24P figure 112, Forward Clutch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Washer Thrust Bearing NSN 3120-01-478-4269 · P/N 8628202 BEARING,WASHER,THRU Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
2	Housing Part NSN 2520-01-485-9405 · P/N 24208850 HOUSING PART,TRANSM Fits: All A2 models, plus M1123	1	We can source it
3	Housing P/N 24203499 HOUSING,FORWARD CLU Fits: All A2 models, plus M1123	1	Ask us
4	Inner Seal P/N 8677582 SEAL,INNER 1995,96 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	Ask us
4	Inner Seal P/N 24207501 SEAL,INNER 1997,98,99,00,01 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	Ask us
5	Inner Seal P/N 24202359 SEAL,INNER 1995,96 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	Ask us
6	Outer Seal P/N 8677583 SEAL,OUTER 1995,96 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	Ask us
7	Piston P/N 8675508 PISTON,LINEAR ACTUA 1995,96 Fits: All A2 models, plus M1123	1	Ask us
7	Clutch Shaft Assembly Piston NSN 2520-01-478-6604 · P/N 24204957 PISTON,LINEAR ACTUA 1997,98,99,00, 01 Fits: All A2 models, plus M1123	1	We can source it $30–$70 eachtypical
8	Spring and Retainer NSN 2520-01-461-0099 · P/N 8661764 SPRING AND RETAINER Fits: All A2 models, plus M1123	1	We can source it
9	Retaining Ring NSN 5325-01-171-3392 · P/N 8623105 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
10	Retaining Ring NSN 5325-00-007-3052 · P/N 8623112 RING,RETAINING 6.24 X .062 Fits: All A2 models, plus M1123	1	We can source it
11	Synchronizer Transmission Hub NSN 2520-01-478-6607 · P/N 8661837 HUB,BODY Fits: All A2 models, plus M1123	1	We can source it quote only $125.39 per eachgov't list price
12	Washer Thrust Bearing NSN 3120-00-255-5697 · P/N 8624781 BEARING,WASHER,THRU Fits: All A2 models, plus M1123	1	5 in stock
13	Spur Gear NSN 3020-01-479-2069 · P/N 8677091 GEAR,SPUR Fits: All A2 models, plus M1123	1	We can source it $119.81 per eachgov't list price
14	Washer Thrust Bearing NSN 3120-01-156-8763 · P/N 8624196 BEARING,WASHER,THRU Fits: All A2 models, plus M1123	1	We can source it
15	Clutch Vehicular Disk NSN 2520-01-150-3931 · P/N 8623849 DISK,CLUTCH,VEHICUL Fits: All A2 models, plus M1123	5	359 in stock
16	Clutch Vehicular Disk NSN 2520-01-150-3932 · P/N 24202646 DISK,CLUTCH PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	5	75 in stock
17	Clutch Vehicular Disk NSN 2520-01-392-8435 · P/N 8680816 DISK,CLUTCH 1995,96 Fits: All A2 models, plus M1123	1	1 in stock $25–$60 eachtypical
17	Clutch Vehicular Disk NSN 2520-01-481-8479 · P/N 24205560 DISK,CLUTCH 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	4 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
