HMMWV Intermediate Clutch and Center Support Assembly TM 9-2320-280-24P · Fig. 113

Every part in figure 113 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0713 Intermediate Clutch: 16 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

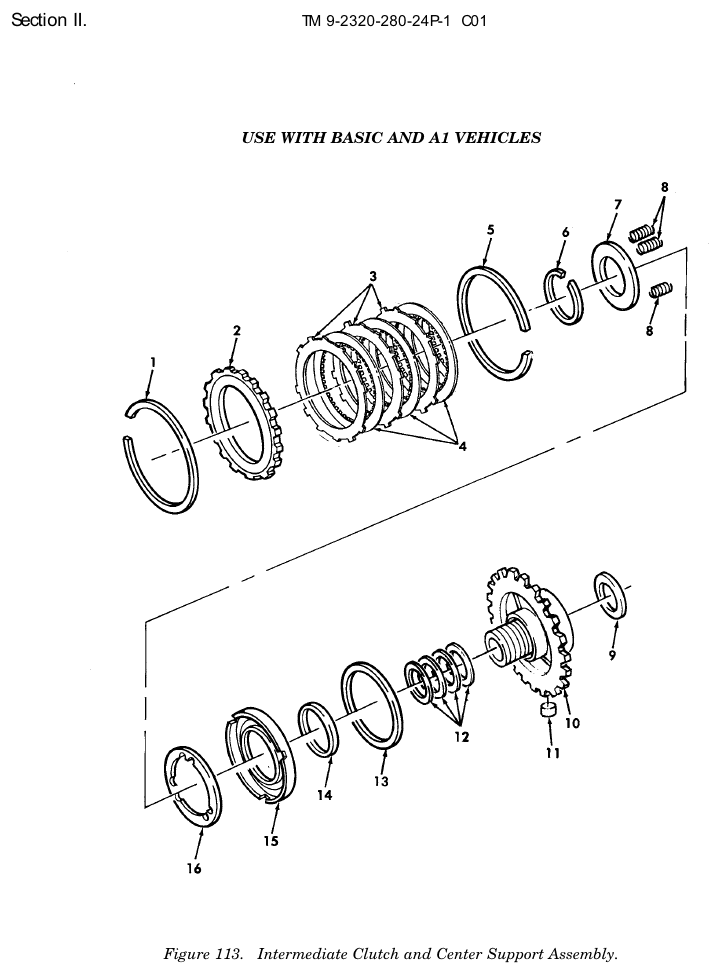

TM 9-2320-280-24P figure 113, Intermediate Clutch and Center Support Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Retaining Ring NSN 5325-01-150-7830 · P/N 8623149 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	1 in stock
2	Clutch Vehicular Disk NSN 2520-01-175-6492 · P/N 8623152 DISK,CLUTCH,VEHICUL Fits: All A0 and A1 models, plus M1121	1	533 in stock $25–$45 eachtypical
3	Clutch Pressure Plate Assembly NSN 2520-01-168-2060 · P/N 8680938 PRESSURE PLATE ASSE Fits: All A0 and A1 models, plus M1121	3	17 in stock
4	Clutch Vehicular Disk NSN 2520-01-150-7609 · P/N 8623151 DISK,CLUTCH,VEHICUL PART OF KIT 24204440 Fits: All A0 and A1 models, plus M1121	3	305 in stock $25–$55 eachtypical
5	Retaining Ring NSN 5325-01-160-4693 · P/N 8623437 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Retaining Ring NSN 5325-01-158-2182 · P/N 8623153 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	25 in stock
7	Clutch Vehicular Disk NSN 2520-01-150-2280 · P/N 8623146 DISK,CLUTCH,VEHICUL INTERMEDIATE CLUTCH SPRING Fits: All A0 and A1 models, plus M1121	1	21 in stock $25–$40 eachtypical
8	Helical Compression Spring NSN 5360-01-153-0933 · P/N 8623145 SPRING,HELICAL,COMP Fits: All A0 and A1 models, plus M1121	3	We can source it
9	Washer Thrust Bearing NSN 3120-01-155-4468 · P/N 8623211 BEARING,WASHER,THRU Fits: All A0 and A1 models, plus M1121	1	5 in stock
10	Support with Race P/N 8683075 SUPPORT WITH RACE PART OF KIT P/N 8680914 Fits: All A0 and A1 models, plus M1121	1	Ask us
11	Vent Plug NSN 5340-01-408-8522 · P/N 8624209 PLUG,VENT PART OF KIT P/N 8680914 Fits: All A0 and A1 models, plus M1121	1	We can source it $432.42 per eachgov't list price
12	Packing Retainer NSN 5330-01-165-4333 · P/N 8626356 RETAINER,PACKING PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	4	We can source it
13	Outer Seal P/N 24202361 SEAL,OUTER PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
14	Inner Seal P/N 24202360 SEAL,INNER PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	Ask us
15	Seal Assembly P/N 8627379 SEAL ASSEMBLY PART OF KIT P/N 8680914 Fits: All A0 and A1 models, plus M1121	1	Ask us
16	Clutch Spring Guide P/N 8627385 CLUTCH SPRING GUIDE PART OF KIT P/N 8680914 Fits: All A0 and A1 models, plus M1121	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
