HMMWV Intermediate Clutch and Center Support Assembly TM 9-2320-280-24P · Fig. 114

Every part in figure 114 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0713 Intermediate Clutch: 25 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

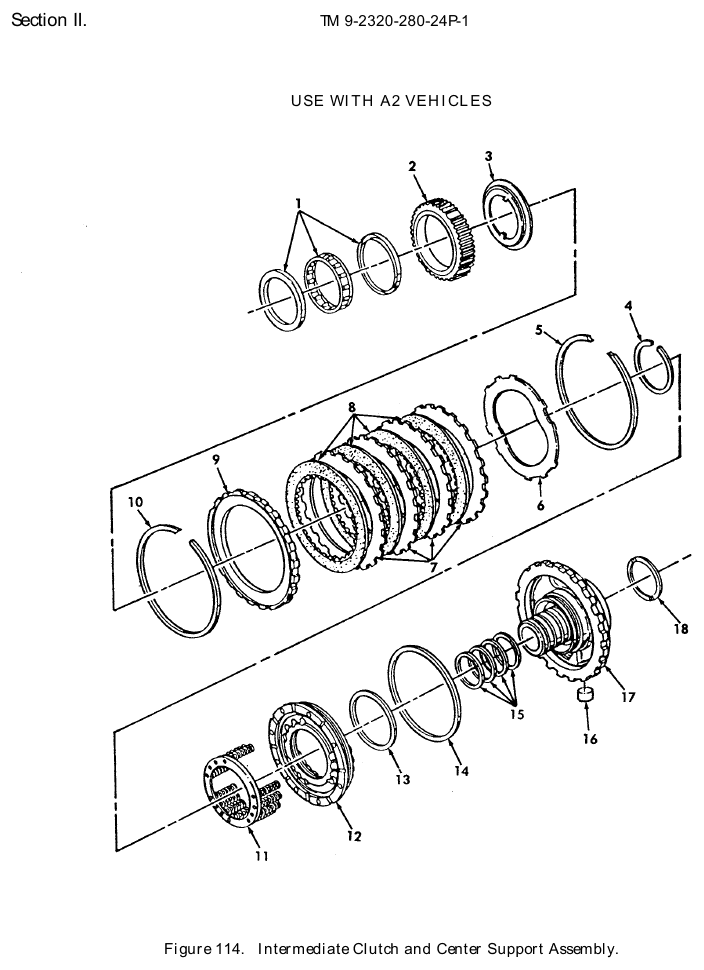

TM 9-2320-280-24P figure 114, Intermediate Clutch and Center Support Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Sprag Assembly NSN 2520-01-461-0092 · P/N 8633173 SPRAG ASSEMBLY PART OF KIT P/N 8680915 Fits: All A2 models, plus M1123	1	1 in stock $80–$135 eachtypical
2	Outer Race P/N 8675520 RACE,OUTER PART OF KIT P/N 8680915 Fits: All A2 models, plus M1123	1	Ask us
3	Clutch Vehicular Disk NSN 2520-01-149-1868 · P/N 8627334 DISK,CLUTCH,VEHICUL PART OF KIT P/N 8680915 Fits: All A2 models, plus M1123	1	46 in stock $40–$75 eachtypical
4	Retaining Ring NSN 5325-01-158-2182 · P/N 8623153 RING,RETAINING Fits: All A2 models, plus M1123	1	25 in stock
5	Retaining Ring NSN 5325-01-160-4693 · P/N 8623437 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
6	Clutch Vehicular Disk NSN 2520-01-456-2736 · P/N 24204497 DISK,CLUTCH 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	4 in stock $25–$45 eachtypical
7	Drive Plate Transmission Ring NSN 2520-01-461-0074 · P/N 8675522 RING,DRIVE PLATE,TR Fits: All A2 models, plus M1123	4	We can source it
8	Clutch Vehicular Disk NSN 2520-01-479-0847 · P/N 8675521 DISK,CLUTCH 1995 PART OF KIT P/N 24204441 Fits: All A2 models, plus M1123	4	We can source it $25–$55 eachtypical
8	Clutch Vehicular Disk NSN 2520-01-456-7883 · P/N 24202966 DISK,CLUTCH 1996,97,98,99,00,01 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it $25–$55 eachtypical
9	Drive Plate Transmission Ring NSN 2520-01-461-0073 · P/N 8675519 RING,DRIVE PLATE,TR 1995,96,97,98 Fits: All A2 models, plus M1123	1	We can source it $25–$55 eachtypical
9	Intermediate Friction Clut Plate NSN 2520-01-480-7565 · P/N 24205827 PLATE,INTERMEDIATE 1999,00,01 Fits: All A2 models, plus M1123	1	We can source it $50–$95 eachtypical
10	Retaining Ring NSN 5325-01-150-7830 · P/N 8623149 RING,RETAINING Fits: All A2 models, plus M1123	1	1 in stock
11	Spring and Retainer NSN 2520-01-460-4961 · P/N 24202976 SPRING AND RETAINER Fits: All A2 models, plus M1123	1	We can source it
12	Piston P/N 8661658 PISTON 1995,PART OF KIT P/N 8680914 Fits: All A2 models, plus M1123	1	Ask us
12	Clutch Bearing NSN 2520-01-474-8868 · P/N 24202552 BEARING,CLUTCH 1996,97,98,99,00,01 PART OF KIT P/N 24205348 Fits: All A2 models, plus M1123	1	We can source it $55–$105 eachtypical
13	Preformed Packing NSN 5330-01-478-5994 · P/N 24202360 PACKING,PREFORMED PART OF KIT P/N 24204441 PART OF KIT P/N 24204449 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it
14	Preformed Packing NSN 5330-01-478-3900 · P/N 24202361 PACKING,PREFORMED PART OF KIT P/N 24204441 PART OF KIT P/N 24204449 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it $109.89 per eachgov't list price
15	Packing Retainer P/N 8675729 RETAINER,PACKING 1995,96,97 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	4	Ask us
15	Packing with Retain P/N 24205722 PACKING WITH RETAIN 1998,99,00,01 PART OF KIT 24210954 Fits: All A2 models, plus M1123	4	Ask us
16	Vent Plug NSN 5340-01-408-8522 · P/N 8624209 PLUG,VENT 1995,96 PART OF KIT P/N 8680914 Fits: All A2 models, plus M1123	1	We can source it $432.42 per eachgov't list price
16	Seal P/N 24203511 SEAL 1997,98,99,00,01 PART OF KIT P/N 24208849 PART OF KIT P/N 24217454 Fits: All A2 models, plus M1123	1	Ask us
17	Support P/N 8683075 SUPPORT 1995,96 PART OF KIT P/N 8680914 PART OF KIT P/N 24205348 Fits: All A2 models, plus M1123	1	Ask us
17	Support P/N 24207180 SUPPORT 1997,98 PART OF KIT P/N 24208849 Fits: All A2 models, plus M1123	1	Ask us
17	Support P/N 24207130 SUPPORT 1999,00,01 PART OF KIT P/N 24217454 Fits: All A2 models, plus M1123	1	Ask us
18	Washer Thrust Bearing NSN 3120-01-155-4468 · P/N 8623211 BEARING,WASHER,THRU Fits: All A2 models, plus M1123	1	5 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
